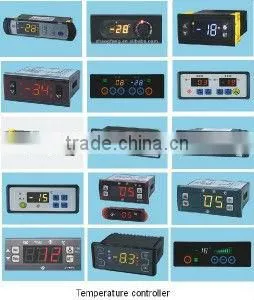

Main products

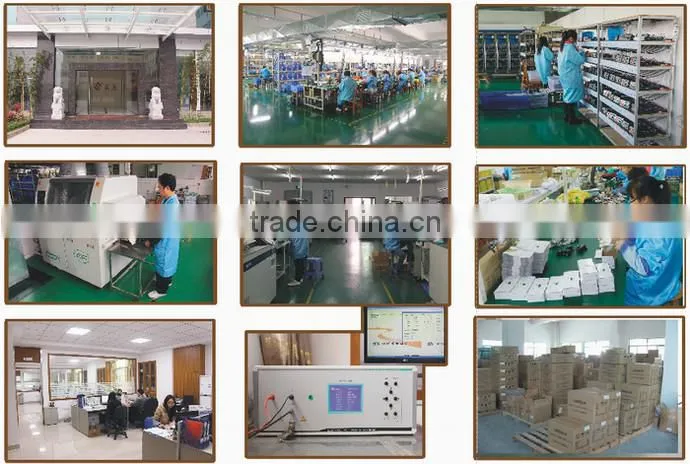

Picture of factory

temperature controlled on off switch SF-573

Feature

1.mini-sized and integrated controller

2.applicable to compressor of 1 HP

3.light control / fan control / value storing / parameter locking / self testing

Technical Data

1.range of temperature displayed:-45~99°C

2.range of set temperature:-40~40°C

   accuracy :±1°C

3.sensor:1 NTC,2m(L)

pressor:N.O.30A/250VAC

   (applicable to compressor of 1 HP,if more it needs connect an AC contactor)

   light:N.O.30A/250VAC

   fan:N.O.30A/250VAC

Size

dimension:181*41*68mm

mounting hole dimension:138*32.5mm

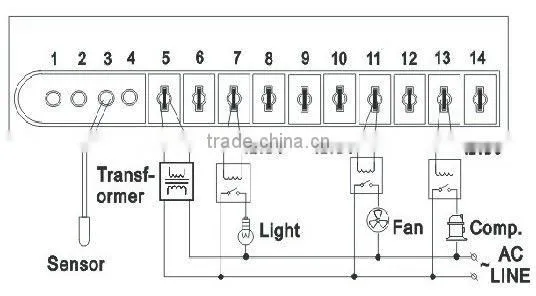

Circuit Diagram

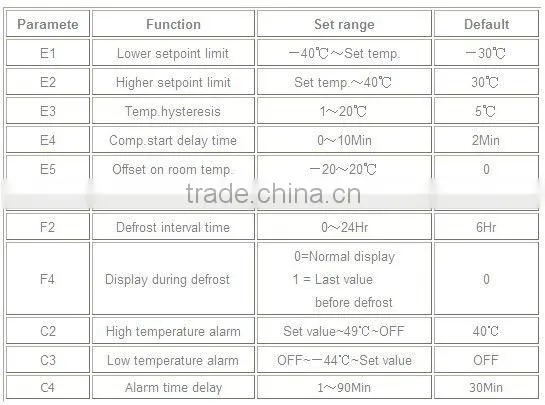

Parameter

Certificates
