Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Famous Manufactory Self Control Thermostat ED330A

Famous Manufactory Self Control Thermostat ED330A

Name: Famous Manufactory Self Control Thermostat ED330A
Brand: Shangfang
SKU: 107113241
Availability: InStock

Famous Manufactory Self Control Thermostat ED330A thumbnail-1

Famous Manufactory Self Control Thermostat ED330A photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Shangfang

Model Number:

ED330A

Contact Supplier Request Quote Chat Now

Zhongshan Shangfang Instrument Meter Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Shangfang

Model Number ED330A

Usage Other, Refrigeration and heating

Theory Temperature Controller

Famous Manufactory Self Control Thermostat ED330A

Features

1 Temperature control
2 Refrigerating & heating modes selection
3 The alarm function
4 The alarm signal output
5 Celsius/Fahrenheit degrees
6 Value Storing / Self Testing

Technical Data

1 Range of temperature display:-45~120°C (-40~248°F)
2 Range of set temperature:-45~120°C (-40~248°F)
3 Accuracy:±0.1°C (±1.8°F)
4 Control output: N.O. 16A/250VAC
5 Alarm output: N.O. 5A/250VAC
6 Dimension:77(Length)×35(Width)×60(Depth)mm
7 Mounting hole dimension:71(Length)×29(Width)mm

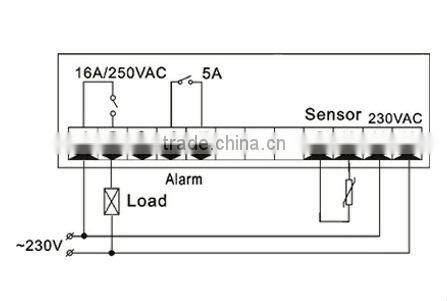

Circuit diagram

Parameters

Paramete	Function	Set range	Default
E1	Lower setpoint limit	-45°C/-49°F~Set temp.	-35°C/-31°F
E2	Higher setpoint limit	Set temp.~120°C/248°F	90°C/194°F
E3	Temp.hysteresis	0.1~30.0°C/0.2~54.0°F	4.0°C/7.2°F
E4	Comp.start delay time	0~10Min	2Min
E5	Offset on room temp.	-19.9~20.0°C/-35.0~36.0°F	0
C1	Temperature unit	0=°C 1=°F	0
C2	Temperature control mode	0=refrigerating 1=heating	0
P1	High temperature alarm value	-45~100°C/-49~212°F	45°C/113°F
P2	Low temperature alarm value	-45~100°C/-49~212°F	-40°C/-40°F
P3	Alarm delay time	0~90Min	60Min
P4	Alarm hysteresis	0.1~10.0°C/0.2~18.0°F	2.0°C/3.6°F

On April , 2013, we are attending 2 Trade Shows in Shanghai New International Expo Centre(SNIEC).

Our Booth is E3H55 from April 1~3,and E1D53 from April 8~10.

Welcome your visiting & You will be our distinguished guests!

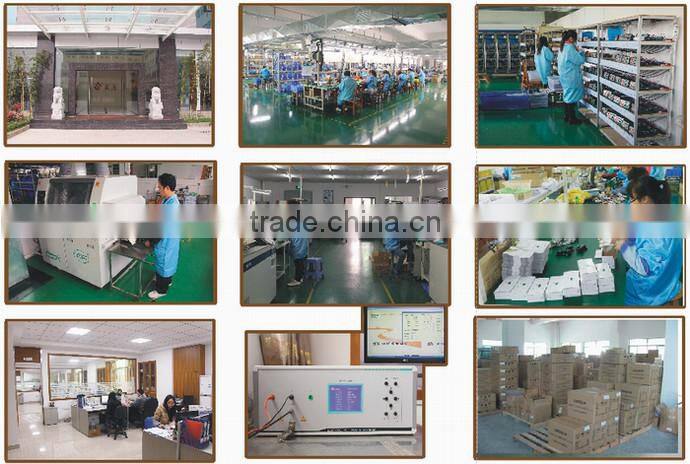

Pictures of Our Factory &Office

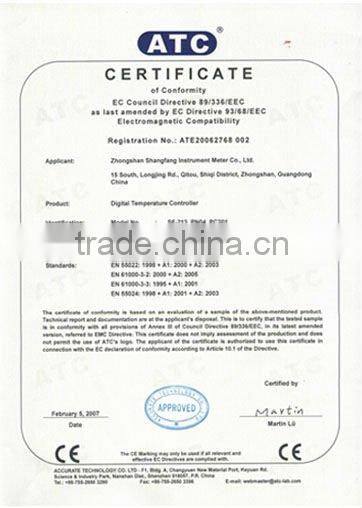

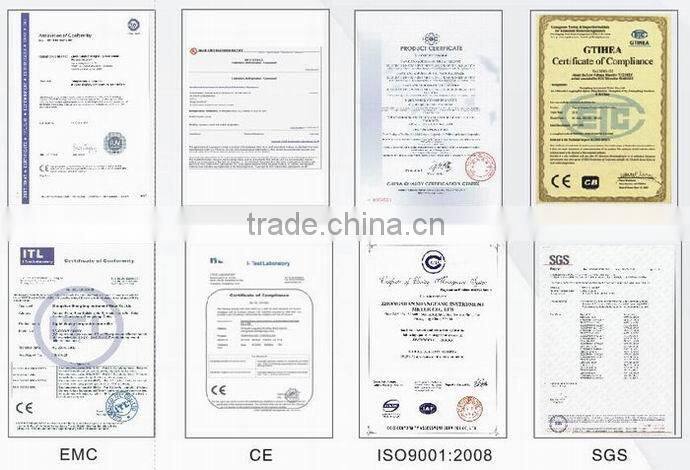

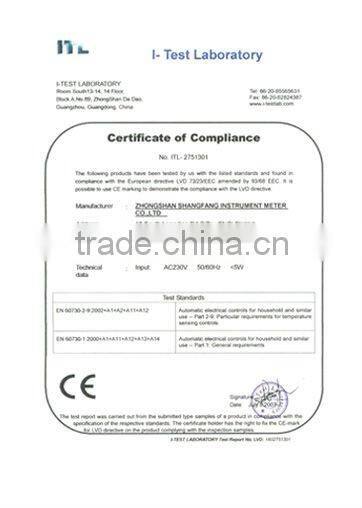

Shangfang Certificates Wall

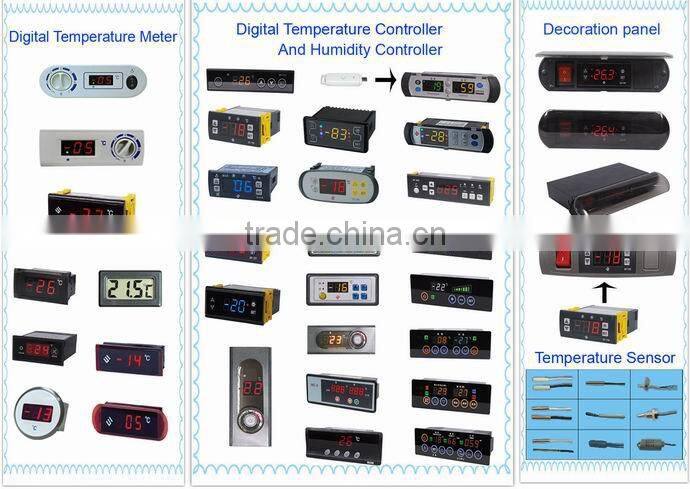

We are the manufacturer of thermostats and humidity controllers,customizing is also available here!

Thanks for your attention of Zhongshan Shangfang Instrument Meter Co. Ltd. We honor to serve our clients. If you are interested in any item of our products, please contact us without hesitation. Welcome your inquiry!
