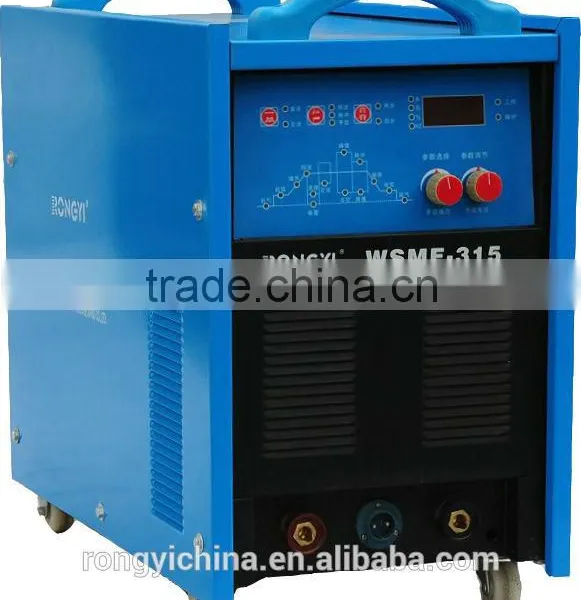

WSME315 Inverter AC/DC Pulse TIG/MMA Welding Equipment

WSME315 Inverter AC/DC Pulse TIG/MMA Welding Equipment photo-1

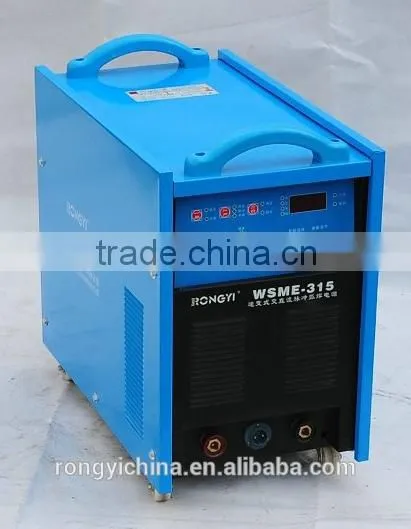

WSME315 Inverter AC/DC Pulse TIG/MMA Welding Equipment photo-2

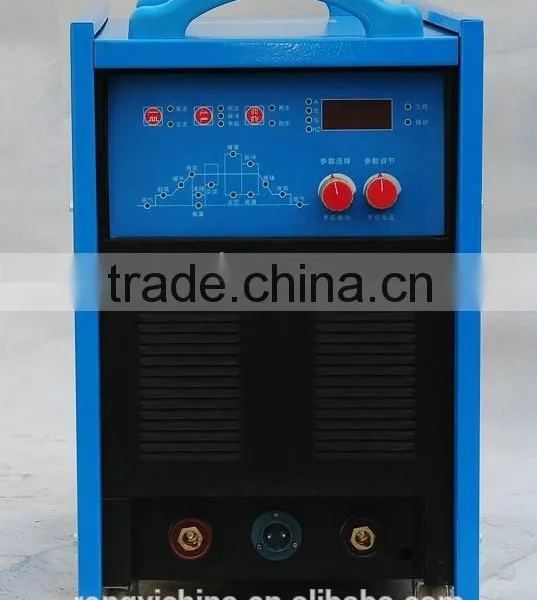

WSME315 Inverter AC/DC Pulse TIG/MMA Welding Equipment photo-3

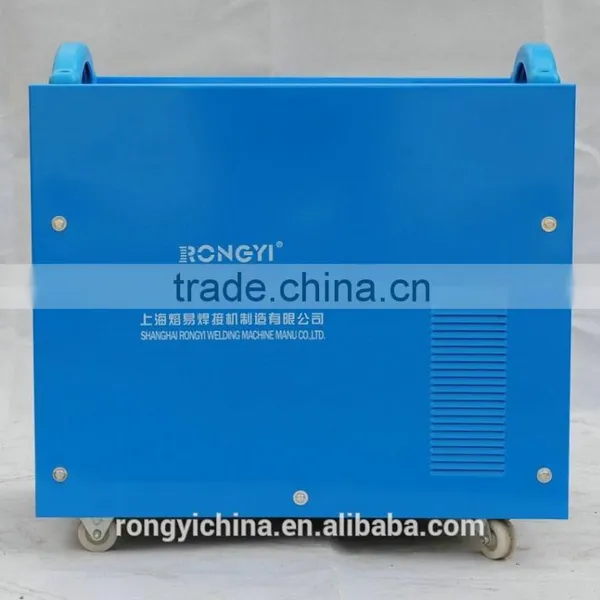

WSME315 Inverter AC/DC Pulse TIG/MMA Welding Equipment photo-4

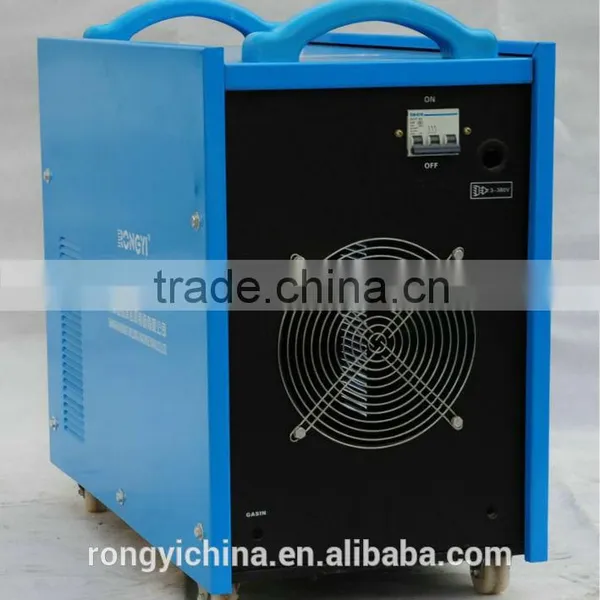

WSME315 Inverter AC/DC Pulse TIG/MMA Welding Equipment photo-5

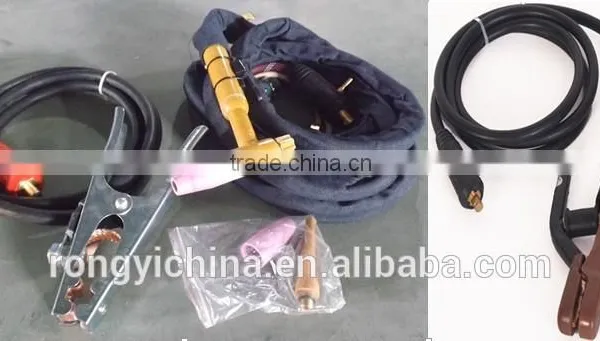

WSME315 Inverter AC/DC Pulse TIG/MMA Welding Equipment photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
RONGYI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name RONGYI
Model Number WSME315
Arc Current 315A
Pulse Frequency 10-100kHz
Pilot Arc Current 5A
Rated Duty Cycle 60%
Motor Type DC Motor
Dimensions 650*325*585 mm
Usage weld
Voltage 3-ph AC 380±10% V / 50~60 Hz
Power(W) 7.6 kVA
Certification CCC, CE
Warranty 1 YEAR

Features of WSME315 Inverter AC/DC pulse TIG/MMA welding equipment:

1. Reactive power correction, inverter, soft switch technology, square wave power supply;

2. Compact structure, stable welding current, steady and intensive arc, foot pedal controller interface for safe operation, reliable and durable, easy for maintenance;

3. Strong capability of oxide film cleaning, fantastic welder performance;

4. Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection;

5. High duty cycle, continuous operation without interruption at large current;

6. DC welder suitable for stainless steel, alloy steel, carbon steel, copper, titanium, etc;

7. AC welder suitable for aluminum and aluminum alloy;

8. Complete accessories: welding torch, welding cable, earth clamp, welding holder.



Parameters of WSME315 Inverter AC/DC pulse TIG/MMA welding equipment:



          Model

Spec.

WSME315

Power supply voltage

3-ph AC 380±10% V / 50~60 Hz

Power supply capacity

7.6 kVA

Rated input current

20 A

Duty cycle

60%

Output current range

5-315 A

Cleaning proportion

-40%~+40%

PWM range

10%-99%

Up-slope time

0.1-15 s

Down-slope time

0.1-15 s

Efficiency

77%

Cosφ (η)

0.95

Weight

50.8 kg

Dimensions (mm)

650*325*585




* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.


The data in the above table is only for reference. Please subject to the nameplate on the device.

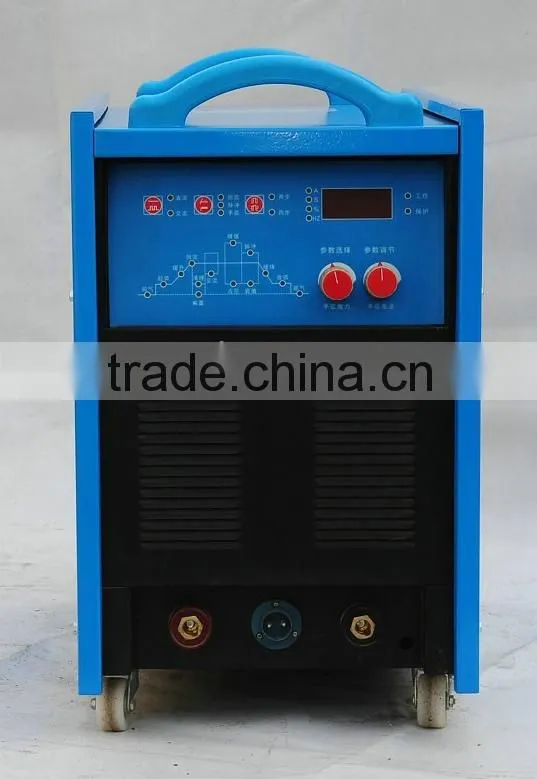

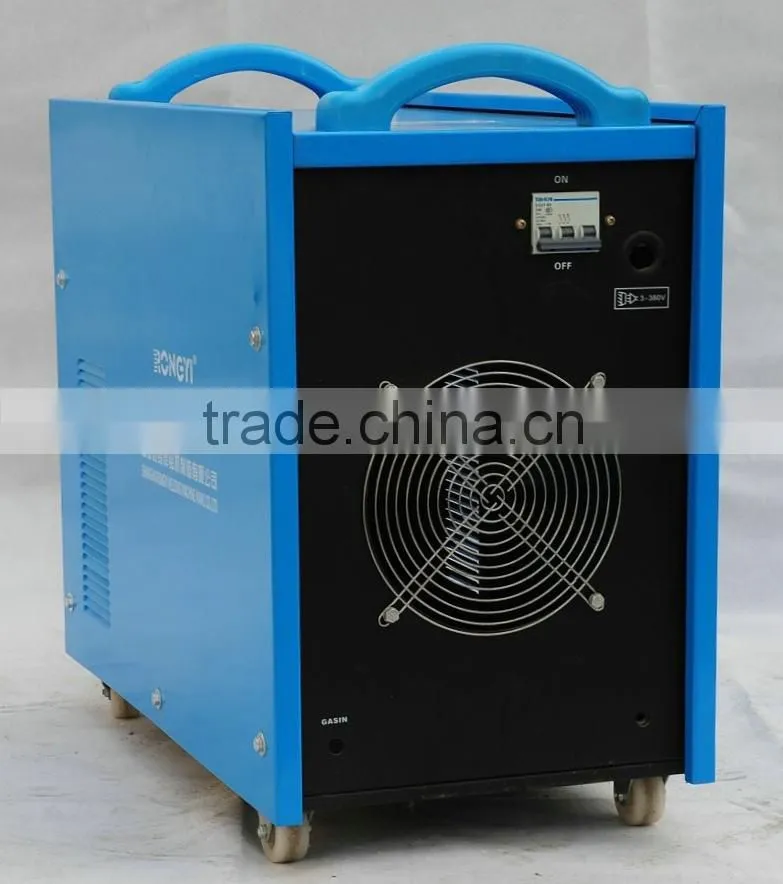

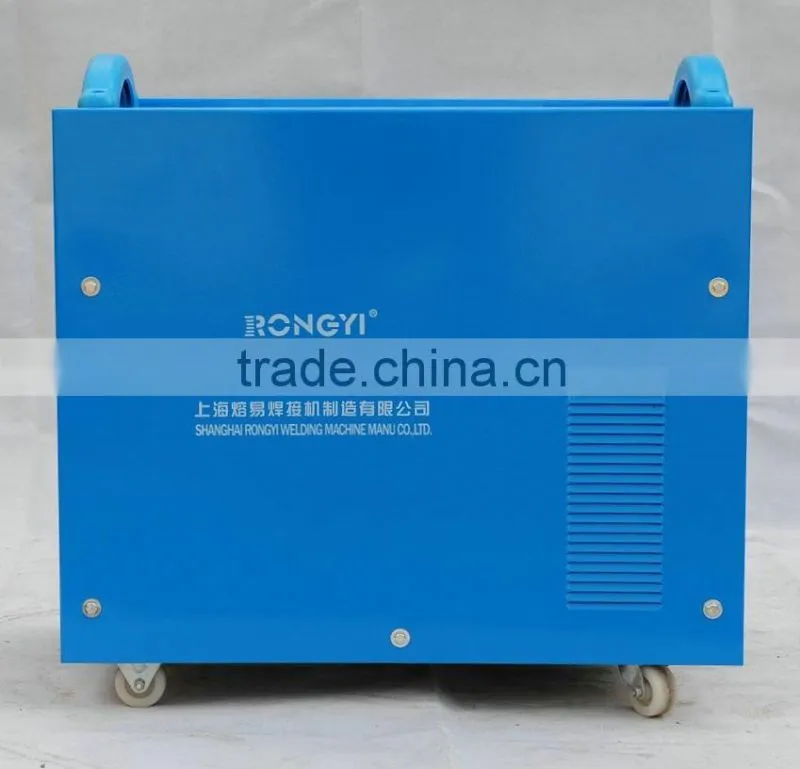

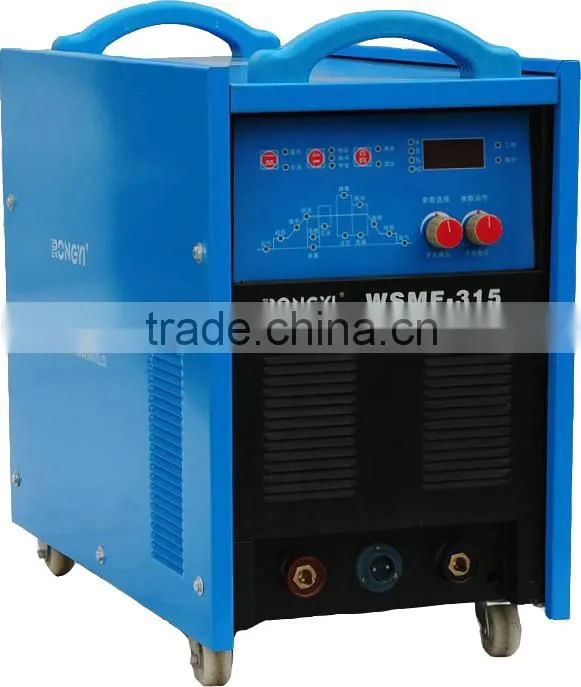

WSME315 Inverter AC/DC pulse TIG/MMA welding equipmentWSME315 Inverter AC/DC pulse TIG/MMA welding equipmentWSME315 Inverter AC/DC pulse TIG/MMA welding equipmentWSME315 Inverter AC/DC pulse TIG/MMA welding equipmentWSME315 Inverter AC/DC pulse TIG/MMA welding equipment
