Help CenterCUT60D MOSFET INVERTER DC Dual Voltage 110V/220V Air Plasma Cutting Machine
Related Products
-
CUT60D Family Use DC Dual Voltage 110V/220V Air Plasma Cutting ToolsNegotiableMOQ: 1 Unit -
CUT50D DC Dual Voltage 110V&220V Air Plasma Cutting ToolsNegotiableMOQ: 1 Unit
-
CUT60 Brand New Portable Mosfet Inverter DC Plasma Cutter 380V 60ANegotiableMOQ: 1 Set
-
CUT40F Brand New Mosfet Inverter DC Pilot ARC Air Plasma Cutter 220V 40ANegotiableMOQ: 1 Set
-
CUT40 New Mini Inverter DC Plasma CutterNegotiableMOQ: 1 Set
Specifications
MOSFET inverter;High duty cycle;
High quality for long time use;
Cut 15mm steel easily
Portable, Plasma cutter CUT60D
Features of family use DC air plasma cutting tools CUT60D:
1. MOSFET inverter and precision constant current feedback control technology, soft switch, DC output, 100 kHz of inverter frequency;
2. Wide working voltage range, strong adaptability to electricity power grid, high ability of interference resistance, automatic voltage compensation, stable cutting current and steady arc;
3. Compact structure, portable, energy saving, easy for maintenance
4. For CUT-40D and CUT-50D, we also can provide 110/220v duel automatic input voltage shift.
5. D Series machine has 110/220 duel voltage input, automatic input voltage shift;
6. Intensive arc, high cutting speed, narrow and smooth kerf, continuous current regulation, little distortion for work-piece, safety and reliable for operation;
7. Applicable to automatic cutting equipment;
8. Suitable for carbon steel, stainless steel, aluminum, copper, etc.
9. Complete accessories: air cooling cutting torch, earth clamp, compressed air regulator, etc.
Parameters of DC Dual Voltage air plasma cutting tools CUT60D :
|
Spec. |
CUT60D |
|
Power supply voltage |
1-ph AC 110 &220 ±10% V |
|
Power frequency |
50~60 Hz |
|
Power supply capacity |
7.6 kVA |
|
Rated input current |
34 A |
|
No-load voltage |
220 V |
|
Output current range |
20-60 A |
|
Output voltage range |
88-104V |
|
Duty cycle |
60% |
|
Efficiency |
85% |
|
Tip hole diameter |
1.2 mm |
|
Arc striking model |
Touch / Untouch |
|
Cosφ (η) |
0.93 |
|
Air pressure |
0.5 MPa |
|
Cutting thickness |
Steel |
1-15 mm |
Aluminum |
1-8 mm |
|
Copper |
1-6 mm |
|
Air flow |
120 L/min |
|
Insulation grade |
B |
|
Protection grade |
IP 21 S |
|
Net Weight |
14.7 kg |
|
Dimensions (mm) |
500*210*365 |
|
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate
on the device.
RONGYI Buildings
Our Certifications

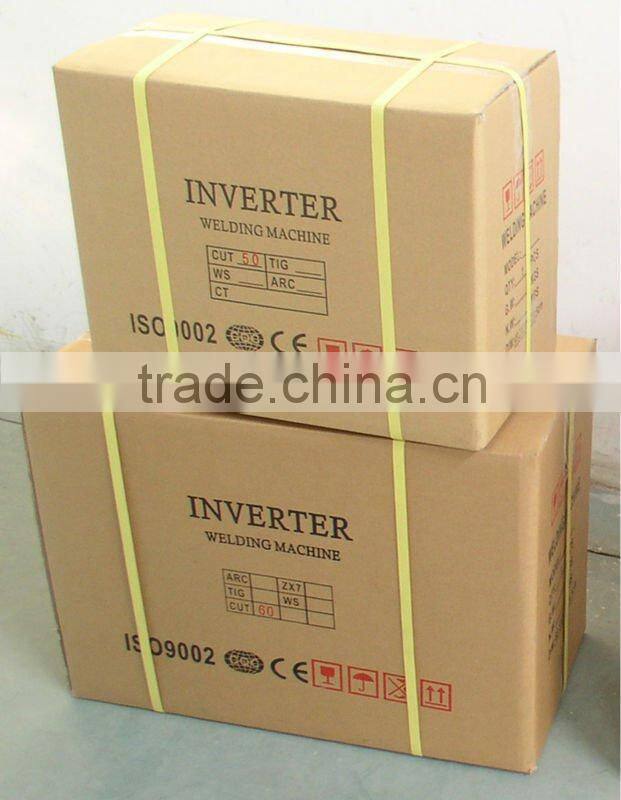

Products and Package
