Specifications:

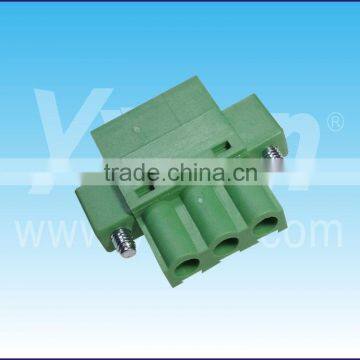

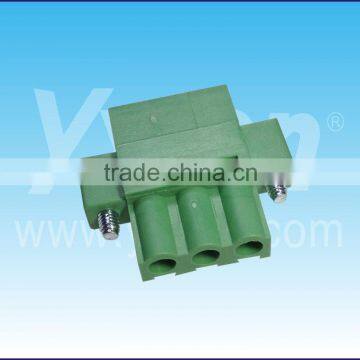

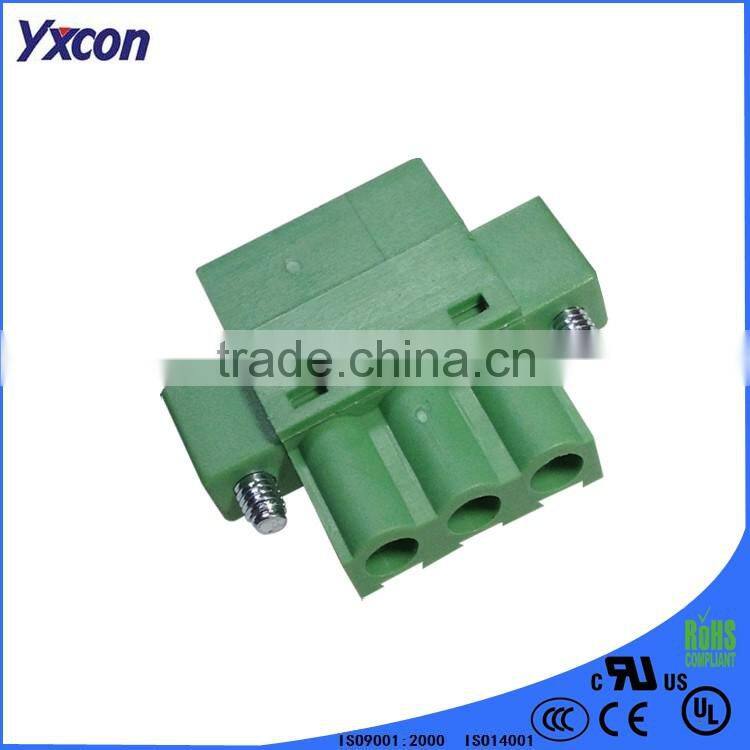

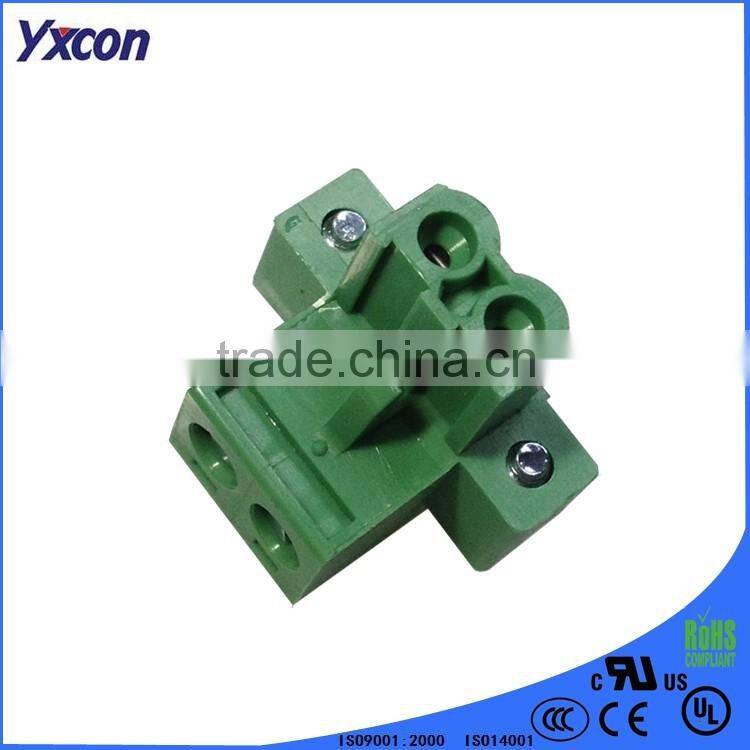

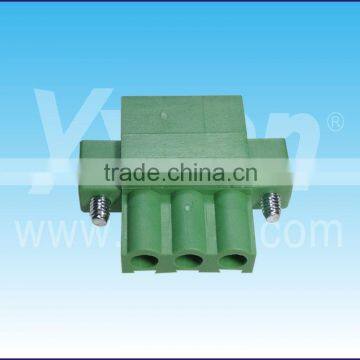

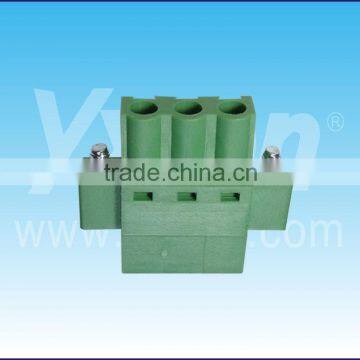

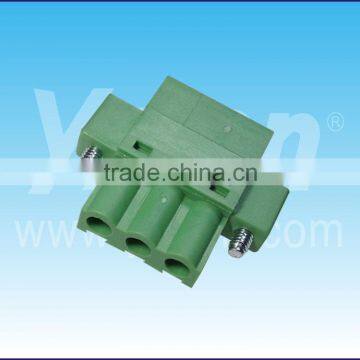

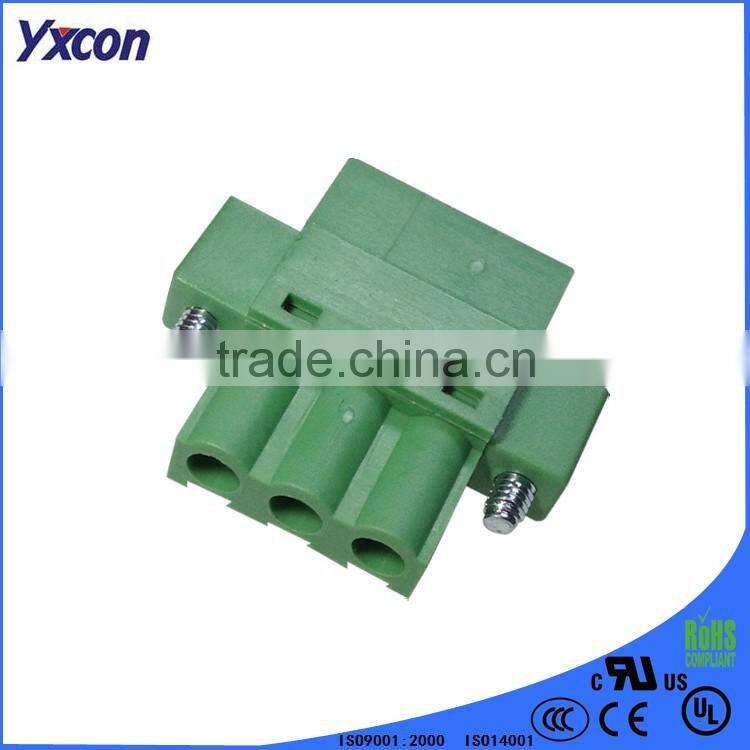

| Product Name | three poles green color wire to board connector Terminal Block |
| Details | Wire to Board Connector |
| Pitch | 2.54mm ,3.50mm ,3.81mm ,5.00mm ,5.08mm ,7.50mm |
| Mounting Type | Through hole ,Straight ,Right Angle |
| Housing | PA66 ,PA9T ,UL94V-2 ,UL94V-0/2 |
| Pin | 2~50pin per row |
| Header Length of Each Part | Customized ,or we suggested |
| Contact Material | Brass Round Pins |
| Contact Finish / Finish Thickness | 0.8U" ~ 50U" Gold (Au) Plating over Nickel (Ni) 30U" Min or 80U" ~ 120U" Tin (Sn) Plating over Nickel (Ni) 30U" Min |
| Insulator / Plastic Material | PBT ,PA6T ,PA9T ,LCP for Choice ,in Black ,or other colors you want |
| Current Rating | 3A, 5A |
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Withstanding Voltage | AC 500V/Minute |
| Operating Temperature | -40° C ~ +105° C |
| Lead Free Status/RoHS Status | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
Drawing:
Relevant Products:
Packaging: PE Bag, Tape&Reel+CAP, Tube, Tube&CAP, Tray,Small Plastic Box.
To choose different items to protect product during delivery.
Shipping: Air Transportation, Sea Transportation, International Express
We can provide OEM and ODM services!
Business Philosophy:
- High Standard
- Strict Requirements
- High Quality
- Favorable Price
- Integrity
- Co-prosperity
Success requires effects of the whole team!
We are willing to help our customers with our earnest enthusiasm!
Company Introduction:
Our main products are auxiliary products provided to famous enterprises.Our main products are widely applied in meters and instruments,electrical control,electrinic communication,LED display screen,SPC exchange,digital camera,outdoor display screen,portable storage device and other electronic devices.Our company aims to provide precise and reliable connectors for our customers.
Workshop Show:
Equipment:
Basing on rising demand of customers,our company has collocated a variety of advanced production equipment and testing equipment to monitor the product during the whole process.We will try our best to satisfy customers' reqiurements.
Company Culture:
Cooperated Partners:
Certifications:
Our company gains UL,VDE,CQC,CB,SGS,RoHS and other certifications.
- Q: Can I get some samples?
- A: Most of items can offer free samples within 20pcs.But buyers should undertake the freight cost of samples. 1- If you/your company have/has your own international express account,we can choose service of freight collect with your account,or you place order to express company to pick up samples from us directly. 2- If you/your company have/has no international express account, we can deliver samples by the express you like.
- Q: What's the lead time of sample ?
- A: Usually within one week after details confirmed.
- Q: What's the lead time of mass production?
- A: 3~4 weeks after we received the deposit.
- Q: Can I know the process of my order production?
- A: We will keep you copy with the situation of your order any time.
Any other questions ,you can contact us to ask freely.
