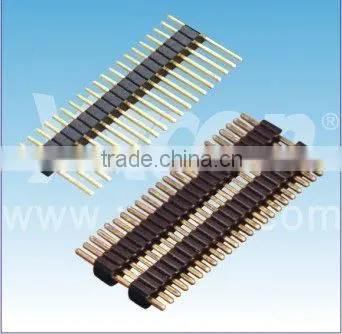

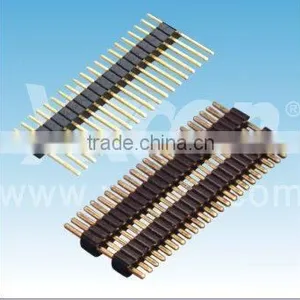

Help Center1.27mm Pitch Single Row Straight With One or More Plastic Bar Brass Pin Header Connector
Related Products
-
China ISO9001 Certificate 1.27mm Pitch Double Row DIP Type Pin Header ConnectorUS$ 0.01 - 1MOQ: 1000 Pieces -
Dongguan Yxcon 1.27mm Pitch Dual Row DIP PCB Mounted Pin Header ConnectorUS$ 0.01 - 1MOQ: 1000 Pieces
-
5.08mm Pin Header ConnectorNegotiableMOQ: 5000 Pieces
-
5.08mm Pin Header ConnectorNegotiableMOQ: 5000 Pieces
-
5.08mm Pin Header ConnectorNegotiableMOQ: 5000 Pieces
Specifications:
| Product Name | 1.27mm pitch single row straight with one or more plastic bar brass pin header connector |
| Pitch | 1.27mm |
| Detail | Pin Header Connector |
| Housing | PA9T/LCP + 30%G.F UL94V-0 |
| Number of Pin | 2~50pin |
| Insulator Height for Choice | 1.0mm ,1.5mm ,1.7mm ,2.0mm ,2.5mm |
| Brand Name | Yxcon |
| Contact Material | Brass |
| Insulator Material | PBT ,PA6T ,PA9T ,LCP ,PA66 ,PA46 ,PPS ,PA115(Halogen Free) |
| Rating Current | 1.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstanding Voltage | AC 500V/Minute |
| Insulating Resistance | 1000mΩ Min |
| Temperture Range | -40°C to +105°C |
Product Drawing:
Relevant Products:
Packaging: PE Bag, Tape&Reel+CAP, Tube, Tube&CAP, Tray,Small Plastic Box.
To choose different items to protect product during delivery.
Shipping: Air Transportation, Sea Transportation, International Express
We can provide OEM and ODM services!
Business Philosophy:
- High Standard
- Strict Requirements
- High Quality
- Favorable Price
- Integrity
- Co-prosperity
Success requires effects of the whole team!
We are willing to help our customers with our earnest enthusiasm!
Company Introduction:
Our main products are auxiliary products provided to famous enterprises.Our main products are widely applied in meters and instruments,electrical control,electrinic communication,LED display screen,SPC exchange,digital camera,outdoor display screen,portable storage device and other electronic devices.Our company aims to provide precise and reliable connectors for our customers.
Workshop Show:
Equipment:
Basing on rising demand of customers,our company has collocated a variety of advanced production equipment and testing equipment to monitor the product during the whole process.We will try our best to satisfy customers' reqiurements.
Company Culture:
Cooperated Partners:
Certifications:
Our company gains UL,VDE,CQC,CB,SGS,RoHS and other certifications.
- Q: Can I get some samples?
- A: Most of items can offer free samples within 20pcs.But buyers should undertake the freight cost of samples. 1- If you/your company have/has your own international express account,we can choose service of freight collect with your account,or you place order to express company to pick up samples from us directly. 2- If you/your company have/has no international express account, we can deliver samples by the express you like.
- Q: What's the lead time of sample ?
- A: Usually within one week after details confirmed.
- Q: What's the lead time of mass production?
- A: 3~4 weeks after we received the deposit.
- Q: Can I know the process of my order production?
- A: We will keep you copy with the situation of your order any time.
Any other questions ,you can contact us to ask freely.
