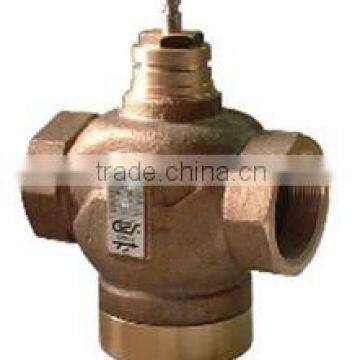

Help Center3Way Bronze Control Valve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Material:
Other, Bronze
Payment & Shipping
Payment Methods:
Port of Shipment:
Incheon Busan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Control
Material
Other, Bronze
Temperature of Media
Medium Temperature
Media
Water
Place of Origin
Gyeonggi-do, South Korea
Model Number
GXS 21 series
Brand Name
GINICE CO.,LTD
| Model | DN | Flow | Stroke | Sv | ΔPv | Actuator ΔPmax(Kgf/cm²) | |||||||
| mm | inch | Kvs | CV | mm | mixing | Diverting | GEA-10A[P] | GEA-20A[P] | |||||
| mixing | Diverting | mixing | Diverting | ||||||||||
| GXS21.15 | 15 | 1/2” | 4 | 4.7 | 20 | 30 | 8 | 4 | 8 | 4 | 8 | 4 | |
| GXS21.20 | 20 | 3/4” | 6.3 | 7.4 | 20 | 30 | 8 | 4 | 8 | 4 | 8 | 4 | |
| GXS21.25 | 25 | 1” | 12 | 14 | 20 | 30 | 8 | 4 | 7 | 3.5 | 8 | 4 | |
| GXS21.32 | 32 | 11/4” | 16 | 18.7 | 20 | 30 | 8 | 4 | 4.5 | 2 | 8 | 4 | |
| GXS21.40 | 40 | 11/2” | 25 | 29 | 20 | 30 | 8 | 4 | _ | _ | 6 | 3 | |
| GXS21.50 | 50 | 2” | 37 | 43.2 | 20 | 30 | 8 | 4 | _ | _ | 4 | 2 | |
