Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > LINEAR ELECTRIC ACTUATOR

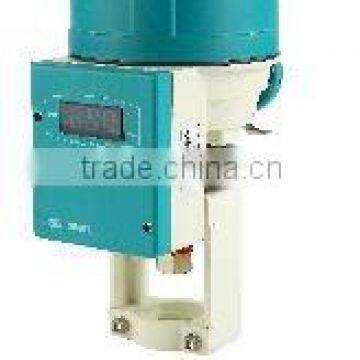

LINEAR ELECTRIC ACTUATOR
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Gyeonggi-do, South Korea
Brand Name:
GINICE CO.,LTD
Model Number:
GEA-20PD/ 35PD
Payment & Shipping
Payment Methods:
Port of Shipment:
Incheon Busan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GDCA-20P, 35P Electric Actuator With Temperature ControllerNegotiableMOQ: 1 Piece -
SPRING RETURN LINEAR ACTUATORNegotiableMOQ: 1 Piece
-
Digital Electric Linear ActuatorNegotiableMOQ: 1 Piece
-
Electric Linear ActuatorNegotiableMOQ: 1 Piece
-
LINEAR PROPORTIONAL ELECTRIC ACTUATORNegotiableMOQ: 1 Piece
Place of Origin
Gyeonggi-do, South Korea
Brand Name
GINICE CO.,LTD
Model Number
GEA-20PD/ 35PD
| Model(optional) | GEA-20PD | GEA-20PDS | GEA-35PD | ||
| NOMINAL STROKE (mm) | 20 | 40 | |||
| NOMINAL FORCE (KN) | 2000 (2.0) | 3500 (3.5) | |||
| OPERATING TIME (Sec) | 50 (0.4mm/s) | 28 | 100 (0.4mm/s) | ||
| OPERATING POWER (V) | AC 24V or (AC220V) . ±10% | ||||
| FREQUENCY (Hz) | 60 or 50 | ||||
| MOTOR SPEED (rpm) | 600 | ||||
| REGULAR LOAD (A) | 0.5 (0.075) | ||||
| CONDENSER (mF) | 34 (0.474) | ||||
| POWER CONSUMPTION (VA) | 12 (16.5) | ||||
| INPUT SIGNAL | ( 0~10V, 2~10V, 4~20mA DC Switchable) | ||||
| OUTPUT SIGNAL | Output At order : 0~10V or 2~10V or 4~20mA DC. | ||||
| F N D INDICATION | DIGITAL Indication , 0 - 100% | ||||
| VOLTAGE ENDURANCE | 1,000VAC, 50/60Hz , 1 minute | ||||
| INSULATION CLASS | E (IEC) | ||||
| OPERATING TEMP | Operation :-15 ~ 60°C / Transportation :-30 ~ 65°C | ||||
| COVER MATERIAL | Glass Filled Nylon | ||||
| HUMIDITY | 5 ~ 95% Rh | ||||
| HOUSING PROTECTION GRADE | IP 54 | ||||
| CABLE GRAND | PF½ | ||||
| WEIGHT (Kg) | 3.4/3.5 | 3.5/3.6 | |||
