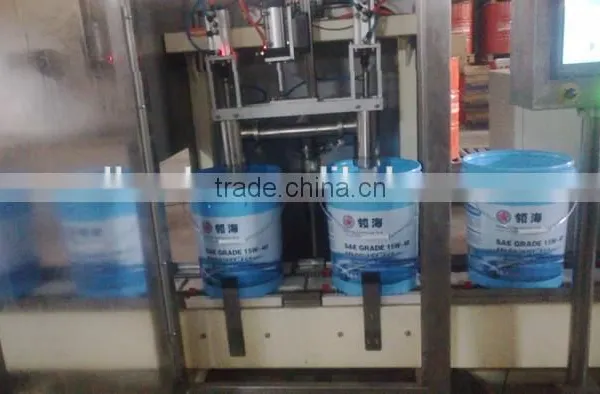

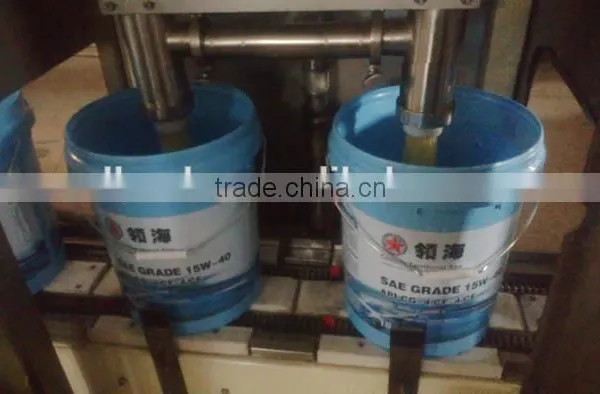

ALLUNDER automatic weighing filling machine
Machine Specification:
Automatic Grade: Fully automatic weighing filling, cap/cover feeding & placed is optional for manually or automatically
Filling speed: 200-240BPH (18L barrel as example)
Filling heads: 2, 4, 6 & 8 nozzles (customized available)
Filling volume range: 3L~8L, 8L~20L, 25L~100L, 100L~200L (customized available)
Precision: ≤0.3% (Higher precision can be designed as per buyer's requirement)
Voltage: AC220/380V 50/60HZ
Power consumption: 4Kw~8Kw
Air pressure: 0.4~0.8Mpa
Air consumption: 30L/min
Machine Dimension: 9800mm(L)×660mm(W)×1600mm(H)
Weight: around 1200~1500KG
Machine Features:
1. Easy operation of SCM/PLC controling systerm;
2. Human interface operation, easy understanding and high automation;
3. High filling precision by 1st filling with large flow, and 2nd small volume to make sure filling accuracy;
4. Channel under filling nozzles prevent the floor from filling material pollution, make sure clean working area;
5. Caps/covers feeding and placing is optional for automatic or manually;
6. Caps/covers capping type can be customized and ALLUNDER can design for it.
