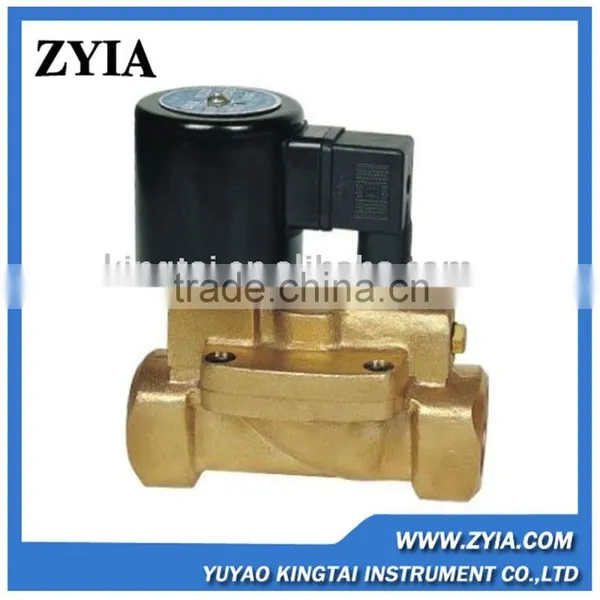

DF Series water solenoid valve
Technical Parameters
Dia diameter |
10 ,15, 20 ,25,32 ,40,50,65,80,100 |
Working pressure |
0.03-0.8 Mpa |
Medium |
liquid,gas,Oil≤4E |
Medium Temperature |
-5-80°C |
Rating Voltage(V) |
AC:380 ,220, 36 DC:220 ,110,24,12 |
Power |
DN:5-20 12W DN:25-100 25W |
Installation Size(mm)
Model |
L(MM) |
H(MM) |
Connect Mode |
Material |
DF-10 |
70 |
95 |
G3/8(F) |
Cast copper |
DF-15 |
83 |
92 |
G1/2(F) |
|
DF-20 |
85 |
98 |
G3/4(F) |
|
DF-25 |
102 |
120 |
G1(F) |
|
DF-15 |
90 |
105 |
G1/2(F) |
Valve body”Copper if use stainless steel,Pls indicate “B”after mode code |
DF-20 |
100 |
115 |
G3/4(F) |
|
DF-25 |
120 |
135 |
G1(F) |
|
DF-32 |
135 |
145 |
G11/4(F) |
|
DF-40 |
145 |
160 |
G11/2(F) |
|
DF-50 |
190 |
180 |
G2(F) |
|
DF-40F |
155 |
205 |
Flange 4hole 17.5hole diameter 110length between hole |
Valve body: Cast iron |
DF-50F |
200 |
220 |
Flange 4hole 17.5hole diameter 125length between hole |
|
DF-65F |
235 |
260 |
Flange 4hole 17.5hole diameter 145length between hole |
|
DF-80F |
270 |
275 |
Flange 4hole 17.5hole diameter 160length between hole |
|
DF-100F |
350 |
310 |
Flange 4hole 17.5hole diameter 180length between hole |
