RCM SAA CE Rohs 70W Dimmable Led High Bay China Factory

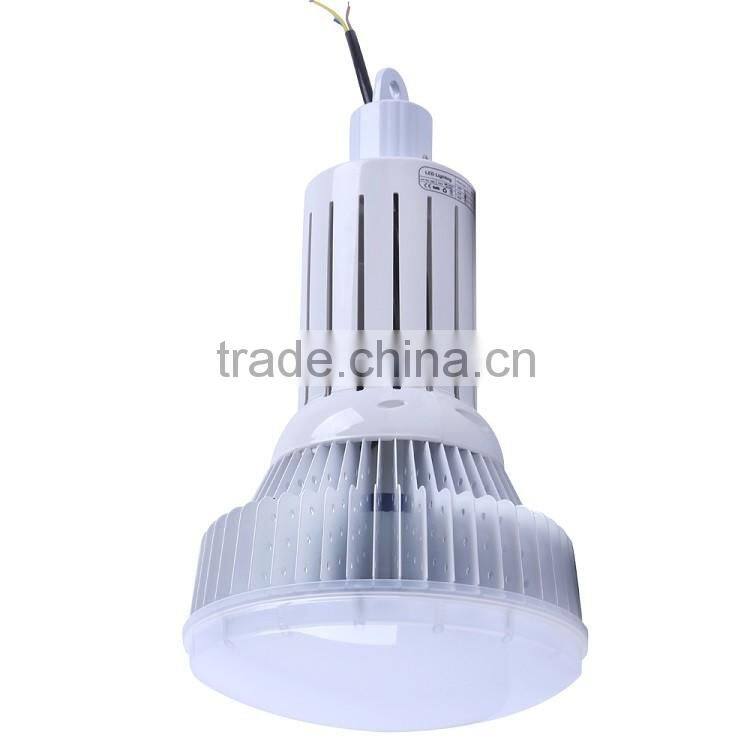

RCM SAA CE Rohs 70W Dimmable Led High Bay China Factory photo-1
RCM SAA CE Rohs 70W Dimmable Led High Bay China Factory photo-2
RCM SAA CE Rohs 70W Dimmable Led High Bay China Factory photo-3
RCM SAA CE Rohs 70W Dimmable Led High Bay China Factory photo-4
US$ 48 - 54 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD3030 Nichia
Warranty(Years):
5
Input Voltage(V):
200~265VAC
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source SMD3030 Nichia
Warranty(Years) 5
Input Voltage(V) 200~265VAC
Lamp Power(W) 70
Lamp Luminous Flux(lm) 5600lm± 5%
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, 3000K/4000K/6000K
Working Temperature(℃) -20, 55
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification CE, EMC, FCC, LVD, SAA
Place of Origin China
Brand Name Seamount
Model Number SM-D200-70W-IC-A

RCM SAA CE Rohs 70W dimmable led high bay china factory



Product Description

Base Type:  E40 / Closed Ring
Light Source:                       86 LED(3030)
Driver : AC integrated driver
Surge Protection >4KV
Rated Power(W): 70W± 5% @230VAC
Input Voltage(V):                     200~265VAC
PF: 0.98
Lumious(lm):       5600lm± 5%
CCT(K):          3000K-4000K-6000K
CRI: >80
Beam Angle:           120°
Material:              Aluminum Fin Type+PC Diffusion Cover
Dimension:           203*295mm(E40)/203*315mm(Closed ring)
Weight : 1kg
Packing: 540*280*405mm/ 5kg/2pcs/Carton



Product Feature

1. AC integrated driver,,high reliability, PF>0.98

2. OVP,OCP,OTP and 4KV surge  protection

3. SMD3030 chips inside,CRI>80

4. 70W AC LED,can replace 150 metal halide lamp.

5. Aluminum Fin type housing,light weight and good heat dissipation.

6. E40 / Closed ring base,easy intall

7.1~10V dim optional

8.Moving Sensor / Remote Control (Optional)

9.5 years warranty

10. CE,RoHS,FCC,SAA,.RCM certificate

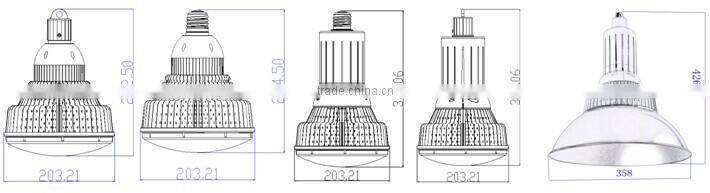

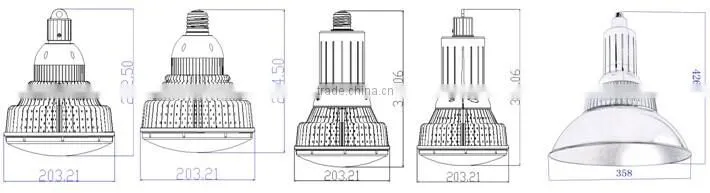

Product Dimension(mm)



RCM SAA CE Rohs 70W dimmable led high bay china factory

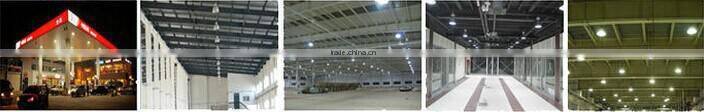

Product Application



1.This 180W AC led high bay lighting can only use indoor,it cant waterproof.



2.It can be use in industrial light .commercial lighting ,warehouse lighting,stadium lighting and so on.



3.Reflector is recommened if ceiling is over 8 meters.







Product  Certificate

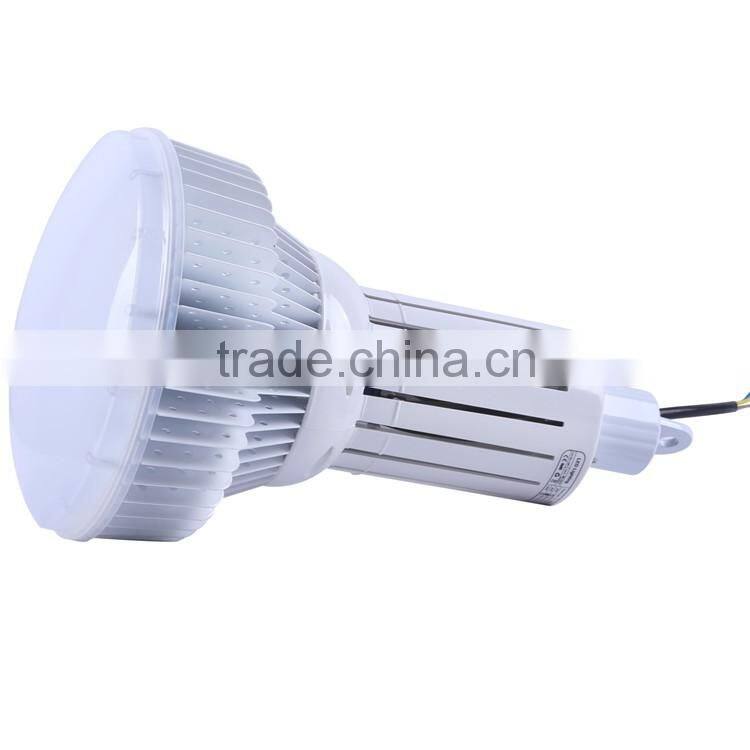

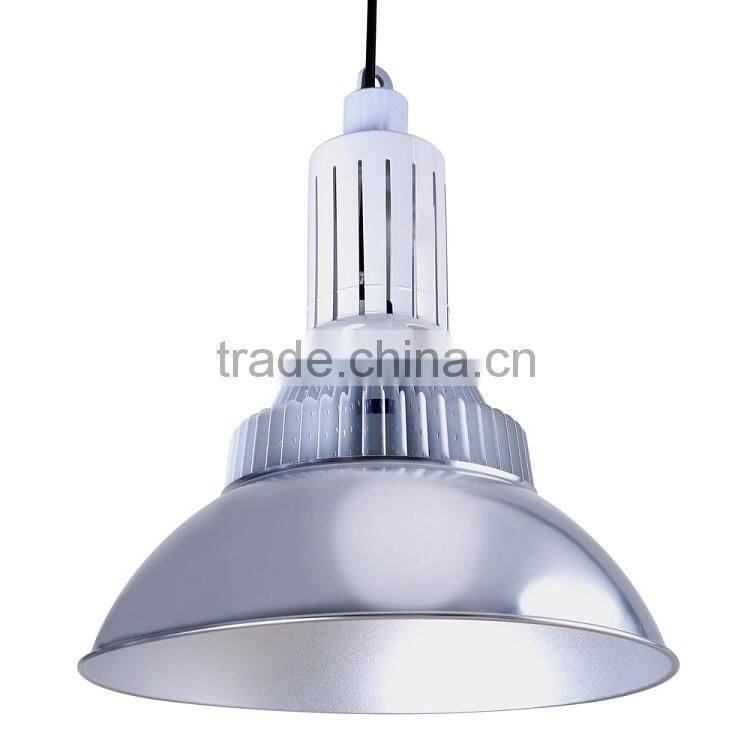

Product Show

RCM SAA CE Rohs 70W dimmable led high bay china factoryRCM SAA CE Rohs 70W dimmable led high bay china factory

RCM SAA CE Rohs 70W dimmable led high bay china factory
