Help Center20W 25W AC LED Downlight Module
US$ 4.20 - 4.20
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD2835 48PCS
Warranty(Years):
3
Input Voltage(V):
220-265
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM ODM Custemors-design 20W 25W Led Downlight EngineUS$ 4.20 - 4.20MOQ: 1 Piece -
10W 15W OEM ODM Customers-made DOB Led Display ModuleUS$ 2.50 - 2.50MOQ: 1 Piece
-
2KV Surge Protection 3 Years Warranty 10W 15W 20W AC LED ModuleUS$ 2.50 - 2.50MOQ: 1 Piece
-
220VAC Opterate Directly 10w 15w SMD2835 AC LED ModuleUS$ 2.50 - 2.50MOQ: 1 Piece
-
5W 6W 7W 44mm Dimension220VAC Dob Led Light ModuleUS$ 1.40 - 1.40MOQ: 1 Piece
LED Light Source
SMD2835 48PCS
Warranty(Years)
3
Input Voltage(V)
220-265
Lamp Power(W)
25
Lamp Luminous Flux(lm)
2700
Lamp Luminous Efficiency(lm/w)
110
Color Temperature(CCT)
Other, cw,nw,ww
Working Temperature(℃)
-30, 55
Working Lifetime(Hour)
30000
Lamp Body Material
Aluminum
Model Number
SM804-F44-0507-1
Place of Origin
Guangdong, China
Brand Name
seamount

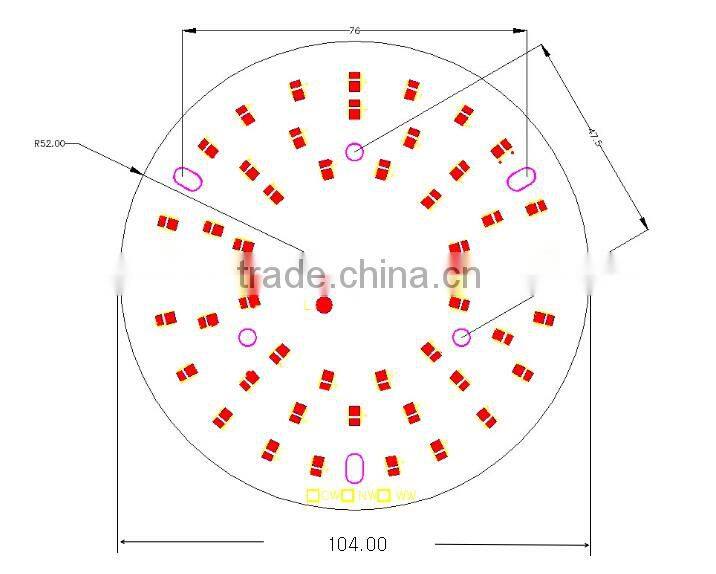

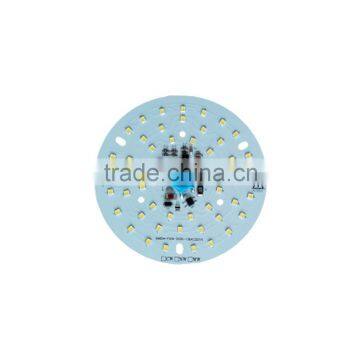

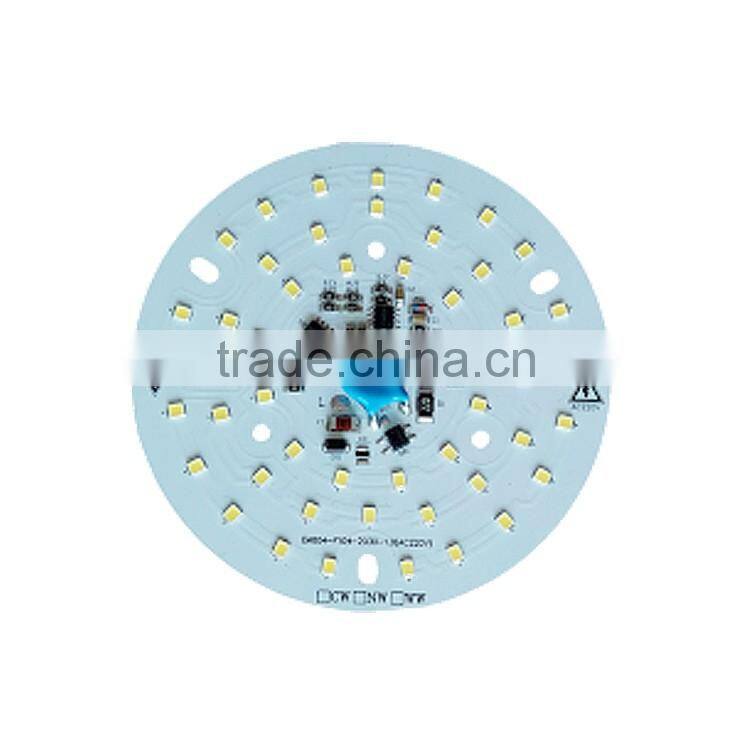

20W 25W AC LED downlight module
| 20W AC Linear LED Module | |
| Led source: | SMD 2835 48pcs |
| Rated Watts: | 20W |
| Input Voltage: | AC220-240V |
| PF: | 0.98 |
| Driver: | AC Linear |
| Luminus(lm): | 2300 lm±5% |
| CCT(K): | 3000-6000K |
| Ra: | >80 |
| Beam angle: | 140° |
| Material: | PCB2.0(high-conductivity) |
| life span(H): | >30,000 |
| Operating temperature: | -30℃ ~ 55℃ |
| Size: | 74*2.0mm |
* AC integrated driver, high reliability,PF>0.98
* With OVP, OTP and OCP pProtection,
* 2KV surge protection(optional),
* LED 2835 28pcs,CRI>80,
* CE, RoHS, FCC,SAA,RCM certificatable
* 3000K,4000K,6000K
* THD<15%
* 3 years warranty
* High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.
* The AC light engine can use in high bay light,flood light,street light,downlight and so on.
