MTC-series mould temperature controller water and oil 1hp pump

Specifications

Mould Temperature Controller:
1.water & oil type temperature controller,
2.use for any kind of mould,
3.max. temperature 3

Detailed Product Description

Mould Temperature Controller:
1.water & oil type temperature controller,
2.use for any kind of mould,
3.max. temperature 350C

Mould Temperatrue Controller:

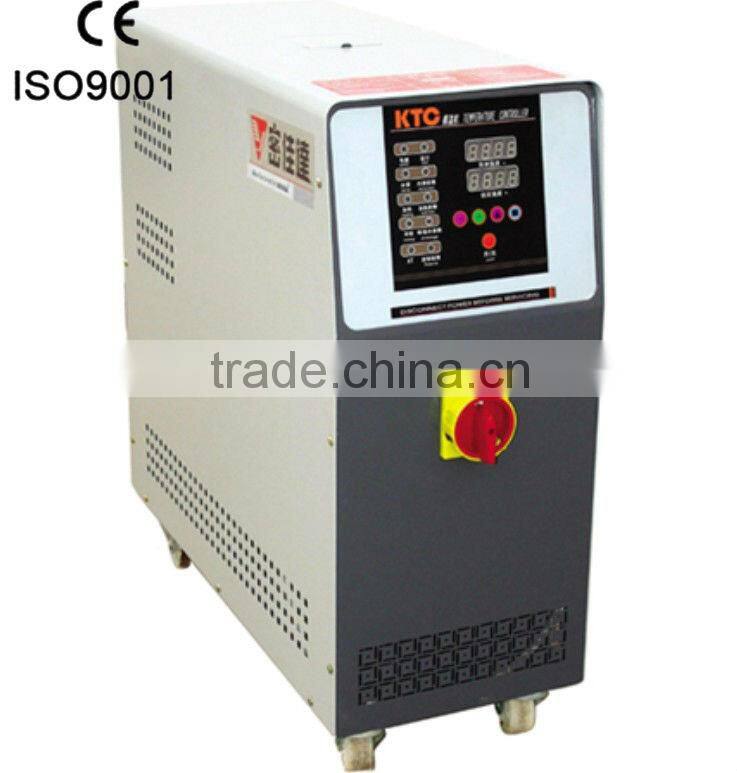

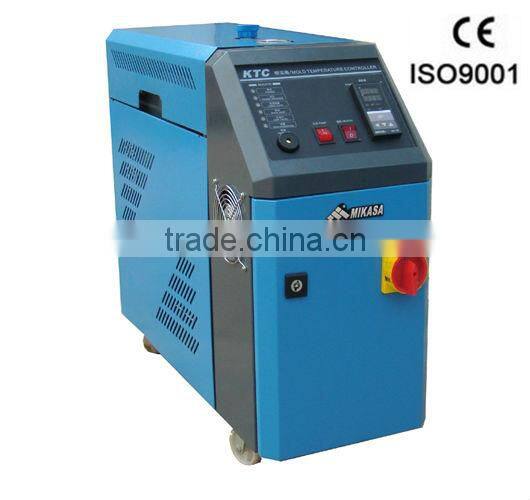

A, KTC-series Features Mould Temperatrue Controller:

Feature

1.      Microcomputer touch-type control, easy to operate.

2.      PID controlled touch-type memory for automatic computation, with temperature control at±1 and 35% energy saved.

3.      Imported pump with large pressure and flow rate ensures uniform temperature on mould.

4.      Brand-new design, elegant outlook, compact size and convenient maintenance.

5.      Completely stainless steel made bladder and high-pressure blastproof piping



Safety protection system:

No total power over-current breaker

Motor reversal protection and indication

Low oil protection and indication

Overheat protection and indication

Circulating pump overload protection and indication

Abnormality alarm buzzer and indication

Phase failure protection



Specifications of KTC-series full-auto mould temperature controller

Model			KTC-1	KTC-2	KTC-3	KTC-4
Max. Temp.()			120	95	150	200
Diathermanous Media			Heat transfer oil	Water	Heat transfer oil	Heat transfer oil
Heating Energy(KW)			6	6	9	9
Cooling Type			Indirect	Direct	Indirect	Indirect
Pump	Motor Power		1HP	1HP	1HP	1HP
	Max. Pressure		4kg/cm	4kg/cm	4kg/cm	6kg/cm
	Max. Flow		60L/min	60L/min	60L/min	60L/min
Power Supply			220V/380/415V  60HZ/50HZ
Oil Tank Volume			8L	8L	8L	8L
Pipe Dia.		Circulating System	2×1/2	2×1/2	2×1/2	2×1/2
		Cooling System	1/2	1/2	1/2	1/2
Overall Dimensions			650×280×700(W*D*H)
Weight(kg)			60	60	60	70

All specifications above are for reference only due to constant research and improvement, welcome the provision of drawing for produce..



B, MTC-series Mould Temperatrue Controller:

Feature:

1.All-digital P.I.D.sectional from temprature system control,temperature error within ±1°C.

2.Multiple safety device,automatically detect the abnormality when accident occurs,indicator light display abnormality state.

3.Safety main power switch cut-off the power when any emergency comesout.

4.Use AOTE pump,large pressure,high stability.

5.Direct cooling to better colling effect;automatically water makeup device,quick cooling to setting temperature,applicable to low temperature control.

6.Stainless inside,high pressure,exposion proof.

7.Elegant design,easy disassembly and mantain.

8.350°C oil temperature control is important for the Bottle Blowing,Delta Metal Die Casting industry in particular.





Futher information,kindly let me know
