Specifications of Products

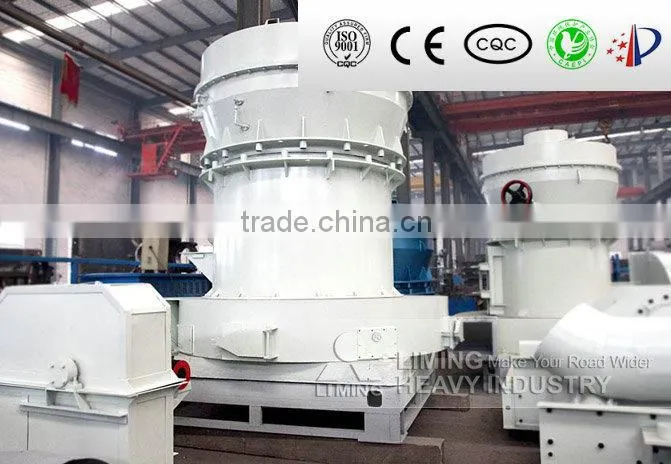

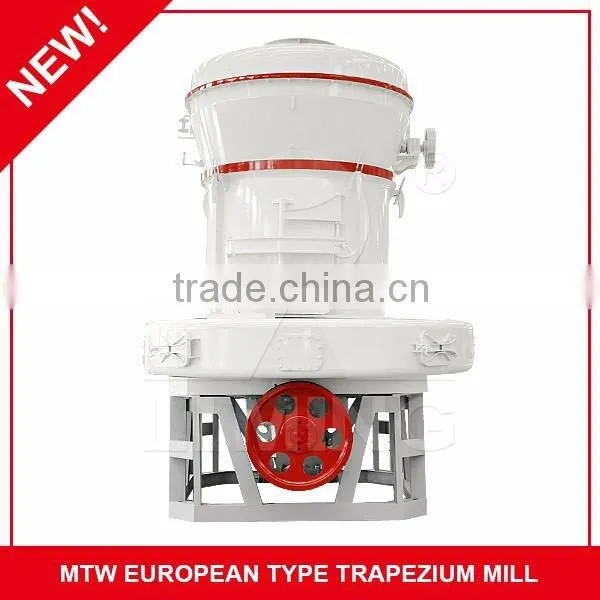

Overview of MTW European Type Trapezium Mill
MTW European Type Trapezium Mill -- the latest grinding equipment, with its own knowledge patents, have reached modern advanced level in the world. This series mill absorbing the European advanced technology and many engineers' ripe experience, combining the actual requirement and proposal of our 9518 customers', have been developed on the basis of our professional engineers' hard researching. This new type mill adopts bevel gear overall drive, inner automatic Thin-Oil lubricating system, arc air channel and several latest patent technology.
Features of MTW European Type Trapezium Mill
1) Bevel gear overall drive: the traditional grinding mill is driven by speed reducer and coupling. It is hard to be installed. And there will be too much noisy, and the efficiency is lower. MTW series mill is driven by bevel gear, so its structure is compacter, easy to be installed and more efficient.
2) Inner automatic Thin-Oil lubricating system: the traditional mill adopts grease lubrication, so the lubricating resistance is stronger, the temperature will be higher soon, the bearing life is shorter. MTW series mill adopts inner L.O. pumps, so the main shaft bearing and bevel gear can be lubricated without an additional lubrication system.
3) Arc air channel: all of the air channel of traditional grinding mill is upright board type. In this case, there will be stronger resistance when the air impacts the air channel board, and the energy of collisions of air molecules loss heavily, as a result, the air channel will be jammed easily because of the eddy air flow. MTW series mill adopts a cambered air channel, the tangential air goes into air channel easily because there is small resistance. And the inner outlet is very good for the grinded material to spread around and avoid grinding material jammed.
Our Products Supply range of LIMING Company
1.Vibrating feeder, two types of GZD and ZSW to meet user’s different processing capacity;
2.First crushing: Jaw crusher, or Impact crusher, or cone crusher to meet user’s choise
3.Secondary crushing: fine jaw crusher, or impact crusher, or cone crusher(spring type, spring and hydraulic type, hydraulic type)
4.Vibrating screen, YK series, linear series, DF series
5.Belt conveyor, stationary type, or mobile type sand stone production line
6.Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc.
7.Electric control cabinet sand stone production line
8.Diesel power generation set for choosing.
Application of LIMING crusher
LIMING provides a complete line of stone production; the output is widely used in road, bridge, house, high building,
railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.
Advantages of LIMING Brand of Stone Production Line
1.Complete stone production line, near to turn-key project;
2.Stationary type or mobile type for choosing
3.First class workmanship sand stone production line
4.Reliable quality with CE approved, reaching to European standard
5.Updating in design and function year by year, forms our own unique design by considering of saving more cost and
improve the processing capacity for user’s consideration.
6.Invention technical patent kept sand stone production line
More real pictures for our equipment working case
Jaw Crushers —————————————>>
Impact crushers ————————————>>
Cone Crushers ————————————>>
More Case about crushing line case for your reference
Jaw stone crushing line case
Impact crushing line case for complete sand production lines
Cone crushing line case complete sand production lines
mobile crusher production line csse complete stone production lines
Sand production line csse complete sand production lines
Delivery for Stationary crushing plant
Export standard container 20GP OR 40GP,40HQthe spare parts in wooden case.
Service:
1) Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and
detailed process, and complete process of export stone and sand making production line
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Service supervision
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff , please feel free to contact us by
dialing 24 hours hot line;:0086-21-68911957 for stone and sand making production line
