Specifications
Plastic grinding machine:1.Supply bottle grinding machine;
2.Big capacity grinding;
3.Paddle cutter bottle grinding machine.

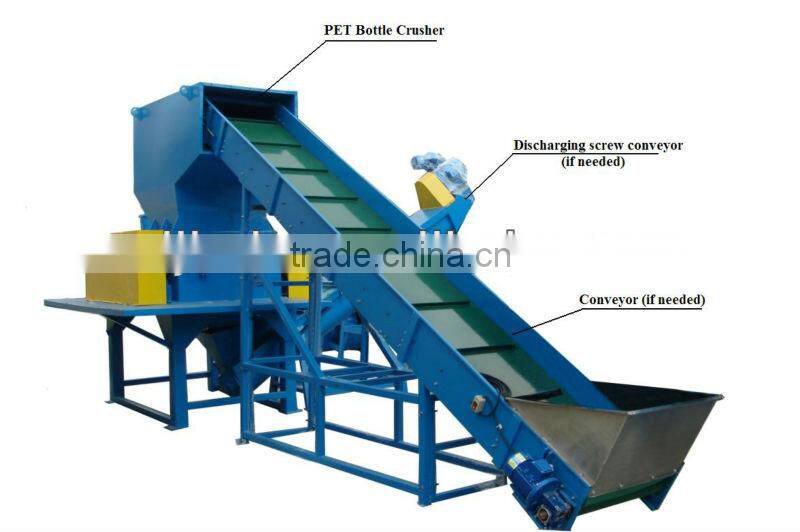

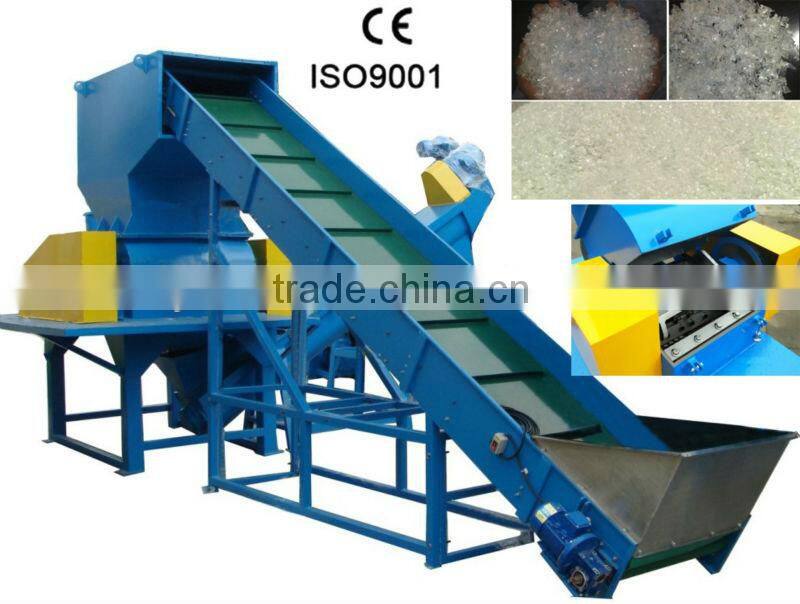

Plastic Pet Bottle Grinding Machine:
This is a high efficient crusher which is designed for plastic bottle and some containers which with strong elasticity. Base on the normal crusher, we increase a water inlet for offering water during crushing, which to avoid damage of bottle’s nature quality. Besides it equip with positive feed system and suitable for both dry crush and watered crush.
(Standard type: only with watered crush; Positive feed system: with both watered crush and positive feed.)
Feature:
-- Outboard bearing: deep-set heavy bearing is fitted beside the machine, prevent the dust from dropping into the bearing; long life, easy maintain, especially excellent for the watered crush. Effectively avoid the damage of original quality of bottle. It also can work without putting water—dry crush.
-- 6pcs rotary Flat-cutter with ,mainly used for Plastic Bottle. High-quality cutter, sharp edge, durable in operation.
-- Easy operation; easy and quick to Change cutter.
-- Custom-made sound proof Bottle Grinder and grinder with standing station, Feeding Belt Conveyor and Discharging system etc.
Specification of PET Bottle Watered crusher:
Model |
MSC-5063 |
MSC-5080 |
MSC-50100 |
|||
Type |
Standard type |
positive feed system |
Standard type |
positive feed system |
Standard type |
positive feed system |
Crusher Motor Power (HP) |
30 |
50 |
75 |
|||
|
Positive Feed Power (HP) |
/ |
3 |
/ |
4 |
/ |
7.5 |
Crushing Chamber (mm) |
630x500 |
800x500 |
1000x500 |
|||
|
Rotary speed (r/min) |
480 |
430 |
350 |
|||
Output size of flakes (mm) |
Customizing |
Customizing |
Customizing |
|||
Crushing ability (kg/hr) |
500~900 |
800~1300 |
800~1200 |
1200~2000 |
900~1500 |
1800~2500 |
Rotary cutter (pcs) |
6 |
6 |
6 |
|||
Stationary cutter (pcs) |
2 |
4 |
4 |
|||
Dimensions(mm) |
1280x1270x2210 |
1600x1800x2150 |
1800x1900x2300 |
|||
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Strong Plastic Crusher:
Company Website:
Feature:
1. Heavy-duty bearings, large inertial wheel and strong crushing ability;
2. Easy-disassembly design, simple and easy to clean and maintain;
3. Two-layer sound-insulated hopper to insulate noise;
4. High-speed quality cutter, sharp edge, durable in operation;
5. Interlock power protection to ensure poerational safety
Specifications of strong plastic crusher:
Model |
Power (HP) |
Crushiong Dimension (mm) |
Crushiong ability (kg/hr) |
Rotary Cutter (Pcs) |
Stationary Cutter (Pcs) |
Dimension(mm) |
Total Dimension (CBM) |
Net Weight (kg) |
MSC-0305 |
5HP |
250×210 |
150-300 |
3/15 |
2PCS |
950×630×1100 |
0.9 |
290 |
MSC-0575 |
7.5HP |
300×210 |
160-320 |
9/15 |
2PCS |
1000×700×1260 |
1.2 |
330 |
MSC-7510 |
10HP |
380×250 |
180-360 |
6/18 |
2PCS |
1080×820×1330 |
1.6 |
520 |
MSC-7515 |
15HP |
500×250 |
200-550 |
6/24 |
2PCS |
930×1280×1400 |
2 |
750 |
MSC-1520 |
20HP |
500×320 |
360-720 |
6/21 |
2PCS |
1700×1350×1760 |
4.9 |
1000 |
MSC-2030 |
30HP |
630×320 |
600-1200 |
6/27 |
2PCS |
1700×1480×1760 |
5.3 |
1250 |
MSC-3050 |
50HP |
700×480 |
800-1600 |
6/27 |
2PCS |
2000×1600×2000 |
7.5 |
1600 |
MSC-5075 |
75HP |
800×650 |
900-1800 |
6/27 |
2PCS |
1600×2100×2620 |
10.5 |
2500 |
MSC-75100 |
100HP |
1000×800 |
1000-2000 |
6/27 |
2PCS |
1800×2100×3150 |
13.6 |
4000 |
