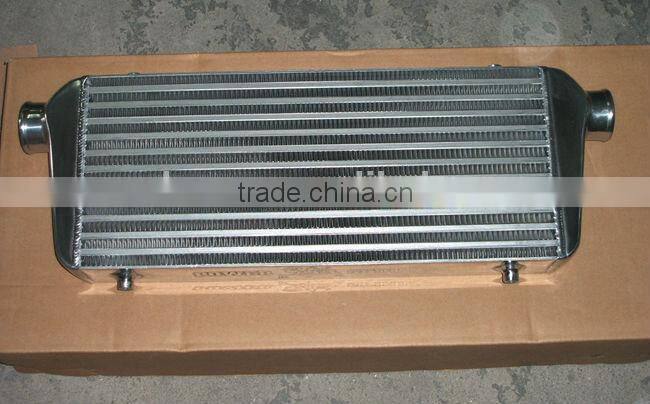

550*230*65 core plate and fin front mount universal Intercooler
1.Core Size: 550mmX230mX65mm .
2. Inlet & Outlet size: 2.5"-2.5" .
3. Core Structure: Bar and Plate.
4. Customed service is offered.Please offer the core size and inlet/outlet size,we can check the availability.
5. Characteristics: compared to tube-fin intercooler,the working pressure is higher.
The list contains the common size of BAR and Plate Intercoolers we manufacture
| NO. | CORE SIZE | INLET-OUTLET | WEIGHT | REMARK |
| 1 | 465*150*55 | 2”-2” | 3.4 | |
| 2 | 410*160*67 | 2”-2” | 3.4 | |
| 3 | 250*300*76 | 3"-3" | 4.5 | |
| 4 | 500*162*80 | 2"-2.5" | 4.8 | |
| 5 | 533*225*50 | 2”-2” | 5 | |
| 6 | 470*203*76 | 2.5"-3" | 5.2 | |
| 7 | 526*220*66 | 2"-2.5" | 5.6 | |
| 8 | 500*200*76 | 2.5"-3" | 5.6 | |
| 9 | 400*300*76 | 3"-3" | 6.2 | |
| 10 | 450*300*76 | 3"-3" | 6.8 | |
| 11 | 400*300*76 | 2.5”-2.5” | 7 | |
| 12 | 450*300*76 | 2.5”-2.5” | 7.1 | |
| 13 | 640*200*70 | 2.5”-2.5” | 7.5 | |
| 14 | 560*230*90 | 2.5”-2.5” | 7.8 | |
| 15 | 510*190*100 | Φ30*60-Φ30*60 | 7.9 | WRX |
| 16 | 450*280*75 | 2.5”-2.5” | 8 | |
| 17 | 450*295*105 | 2.5”-2.5” | 8.54 | |
| 18 | 600*300*76 | 2.5”-2.5” | 8.6 | |
| 19 | 600*300*76 | 3"-3" | 8.8 | |
| 20 | 600*285*76 | 3"-4" | 9.6 | angular connector |
| 21 | 600*285*76 | 3"-3" | 9.6 | angular connector |
| 22 | 600*280*75 | 2.5”-2.5” | 10 | |
| 23 | 510*315*89 | 2.5"-2.5" | 10 | |
| 24 | 600*295*145 | 2.5”-2.5” | 10.6 | |
| 25 | 600*285*100 | 4"-4" | 11 | angular connector |
| 26 | 600*285*100 | 3"-3" | 11 | angular connector |
| 27 | 600*300*102 | 4"-4" | 11.2 | |
| 28 | 600*300*102 | 3"-4" | 11.2 | |
| 29 | 600*300*102 | 3"-3” | 11.2 | |
| 30 | 600*300*100 | 3"-3” | 11.4 | |
| 31 | 600*300*100 | 2.5"X2-3" | 11.6 | |
| 32 | 600*300*100 | 2.5"X2-4" | 12 | |
| 33 | 600*285*115 | 3"-3" | 12.6 | |
| 34 | 600*285*115 | 4"-4" | 13 | angular connector |
| 35 | 1040*356*940 | 4”-4” | 29.2 |
Wuxi Xinsheng Heat Exchanger Co., Ltd is established in July, 2 0 0 1 and located in Wuxi City near Shanghai, covering the building area of 26000 square meter. We are an experienced manufacturer of aluminum plate–bar and tube-fin heat exchangers. Until now, we totally have 33fin punching machines, 6 vacuum brazing furnaces and 1 noclock line, and the potential production capacity reaches 16, 5 0 0 pcs / month. Since 2 0 0 3, we has acquired the import & export certificate, I S O 9 0 0 1 certificate, CE certificate, T S 1 6 9 4 9 certification system, I S O 1 4 0 0 0 and O H S A S 1 8 0 01.
Based on our large-scale testing background, we can fully test the product performance before delivery. These include thermal balance test, vibration performance and lifetime tests involving pressure impulse testing, and surface treatment tests of salt spray testing. All are conducted in accordance with our strict quality standards.
Xinsheng focuses on supplying the cooling solution to application of Construction machinery, Wind Power, Industry and Automotive. We are keeping long-term and good cooperation with Atlas Copco, Liebherr,Airman, Compair, GE, Sinoval, Hydac, Dynapac, Volvo, Zoomlion, Liugong, Lingong, Yuchai, Strong and Kobelco.
We are glad to work together with you and finally bring you the satisfied service.
