Good Quality and Cheaper H or W Type 12way Insulated Terminal Block Connector

Good Quality and Cheaper H or W Type 12way Insulated Terminal Block Connector thumbnail-1
Good Quality and Cheaper H or W Type 12way Insulated Terminal Block Connector photo-1
US$ 0.15 - 2.92 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JESUO
Model Number:
30A~150A
Contact Supplier Request Quote Chat Now
Wenzhou Jieshuo Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JESUO
Model Number 30A~150A
Number of Contacts 11 - 20
Conductor Size 21 - 30 AWG
Type Feed Through

Product Description



H series 12 pole terminal blocks are suitable for continuity or branching-off connectors between electric conductors.

1.Name:  Good Quality and Cheaper H or W type 12way insulated  terminal block connector



2.Insert: brass



3.Plastic: PE, PP or PA



4.Max. Operating  temperature: -5~+85  for  PE



5.Standard:EN60998-1 EN60998-2-1



6.Color :Natural, Black, White

Good Quality and Cheaper H or W type 12way insulated terminal block connector   Good Quality and Cheaper H or W type 12way insulated terminal block connector





Feed through terminal block connector sizes

Good Quality and Cheaper H or W type 12way insulated terminal block connector

  H Type Terminal Block (12 Pole) Sizes



Item No Rated current(A) Section size(mm2) Dimension (mm)
L(mm) W(mm) H(mm) A(mm) B(mm) Ød(mm)
A-3 3 2.5/4 92 15.5 12.7 5.5 8 3
A-6 6 6 119 17.3 13.9 6.5 8.2 3.3
A-10 10 10 131 20.85 16.4 7.25 11.2 3.71
A-15 15 12 135 22.65 18.25 8.25 11.5 4.2
A-20 20 14 141.6 22.65 18.4 8.5 12.2 4.5
A-30 30 16 165 24.1 21.1 9.5 14.1 5.5
A-60 60 25 190 30.8 25.2 11.15 16.5 6.3
A-80 80 30 201 36 22.65 12.1 18.15 6.9
A-100 100 35 228 38 33 13.8 19.4 7.4
A-150 150 40 261 44 33 21.2 22 8.3







W(U) Type Terminal Block (12 Pole)



Item No Rated current(A) Section size(mm2) Dimension (mm)
L(mm) W(mm) H(mm) A(mm) B(mm) Ød(mm)
W-3 3 2.5/4 92 14.9 11.7 4.1 8 3
W-6 6 6 110 16.5 12.85 6.6 9.6 3.3
W-10 10 10 127.7 19.35 15.4 7.1 11.1 3.71
W-15 15 12 134 22.3 17.2 8.3 11.5 4.2
W-20 20 14 144 22.5 17.4 8.65 12.2 4.5
W-30 30 16 163 24.9 19 9.1 14.1 5.5
W-60 60 25 187 28.65 21.4 11.2 16 6.3
W-80 80 30 208 35.8 29.15 12.2 18 7.4









Advantages



Complete products: Terminal block connector,insulate terminals etc 36 kinds of wiring accessories series
Quality assurance: Strict quality control before shipment
High efficiency: Handling customer questions within 24 hours
Increase customer utility: Personal tracking, 5 to 10 days shipment after received payment





Related Product

Good Quality and Cheaper H or W type 12way insulated terminal block connector

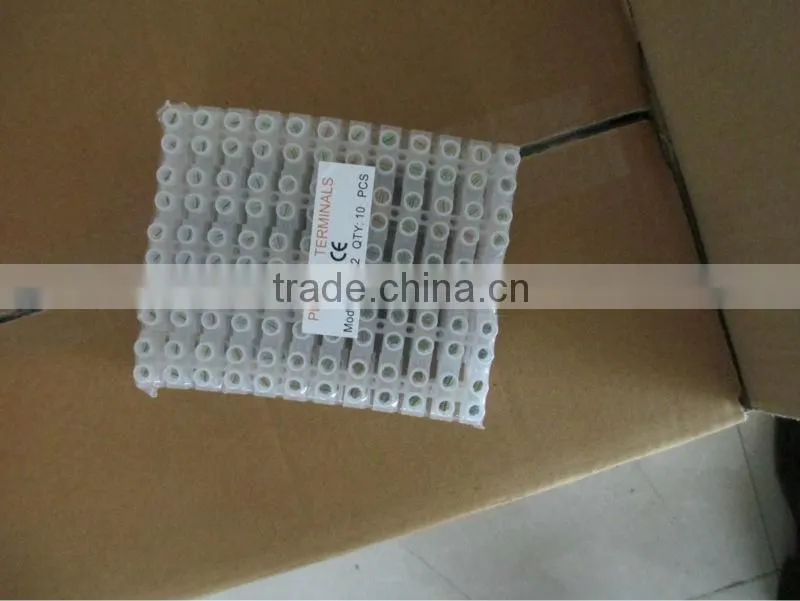

Packaging
