E0506 Tube Pre-insulated Terminals,Copper Terminal

Name: E0506 Tube Pre-insulated Terminals,Copper Terminal
Brand: JESUO
SKU: 107030867
Availability: InStock

US$ 2.3 - 13.7 MOQ: 100 Bags

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

JESUO

Model Number:

E0506

Wenzhou Jieshuo Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JESUO

Model Number E0506

Type Splice

Product Description

Kind of pre-insulated terminals we offer are: Tube pre-insulated terminals ,Tube Terminal

1.Material:Copper Pipe

2.Insulating Cover Material : Nylon, PVC

3.Various wire range
4.Made by high purity copper

Schematic diagram

size

Item No .	Dimension (mm)						Size of Cable		Color (Up)Germany us (down)France us
	F	L	W	B	D	C	AWG	mm2
E0506	6	12	2.6	6	1.3	1	22	0.5	Orange White
E0508	8	14
E0510	10	16
E7506	6	12.4	2.8	6.4	1.5	1.2	20	0.75	White Blue
E7508	8	14.6
E7510	10	16.4
E7512	12	18.4
E1006	6	12.4	3	6.4	1.7	1.4	18	1	Yellow Red
E1008	8	14.6
E1010	10	16.4
E1012	12	18.4
E1508	8	14.6	3.5	6.4	2	1.7	16	1.5	Red Black
E1510	10	16.4
E1518	18	24.4
E2508	8	15.2	4	7	2.6	2.3	14	2.5	Blue Grey
E2512	12	19
E2518	18	25
E4009	9	16.5	4.4	7.5	3.2	2.8	12	4	Grey Orange
E4012	12	19.5
E4018	18	25.5
E6012	12	20	6.3	8	3.9	3.5	10	6	Black Green
E6018	18	26
E10-12	12	21.5	7.6	9.5	4.9	4.5	7	10	Milk white Brown(palm)
E10-18	18	27.5
E16-12	12	22.2	8.8	10.2	6.2	5.8	5	16	Green Milk white
E16-18	18	28.2
E25-16	16	29	11.2	13	7.9	7.5	4	25	Brown(palm) Black
E25-22	22	35
E35-16	16	30	12.7	14	8.7	8.3	2	35	Grey brown Red
E35-25	25	39
E50-20	20	36	16	15	10.9	10.3	1/0	50	Olive colour Green
E50-25	25	41
E70-20	20	37	16	17	14.3	13.5	2/0	70	Yellow Yellow
E70-25	25	42
E70-27	27	44
E95-25	25	44	18.5	19	15.3	14.5	3/0	95	Red Red
E120-27	27	47.6	20.3	20.6	17.5	16.5	4/0	120	Blue Blue
E120-32	32	52.6
E150-27	27	52.6	23.4	25.6	20.3	19.6	250/300	150	Yellow Yellow
E150-32	32	57.6

Product Contents

Advantages

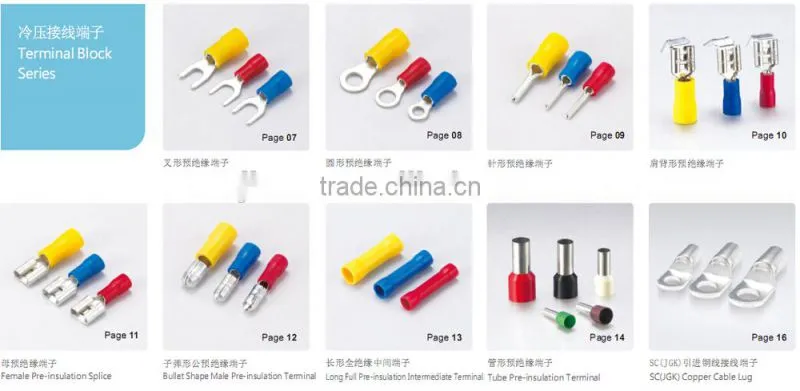

Complete products:	Insulate terminals,terminal block, etc 36 kinds of wiring accessories series
Quality assurance:	strict quality control before shipment
High efficiency:	Handling customer questions within 24 hours
Increase customer utility:	personal tracking, 3 to 10 days shipment after received payment
