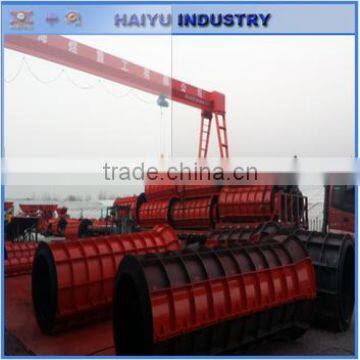

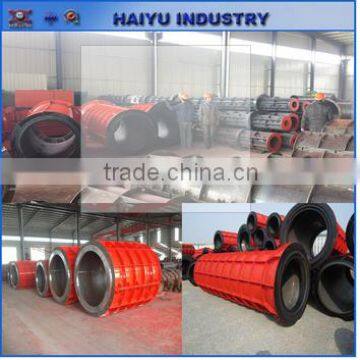

Rcc human pipe concrete pipe making machine
HY:A Leading Manufacturer of Concrete Product Equipments
Shandong Haiyu Industry Co., Ltd is a leading manufacturer producing complete set of pre-stressed and reinforced spun concrete pole production equipments and passes ISO9001:2008 quality management system certificate. In recent years, with experience of years in manufacturing concrete pole equipment and concrete drainage pipe equipment, Our company has not only sold our products very well in Asian countries(Cambodia,Laos,Vietnam,Afghanistan etc.),African countries(Kenyan, Ethiopia,Ghana,Sudan etc) and other countries but also developed and manufactured various kinds of advanced concrete products equipments and molds and building materials machinery equipments.

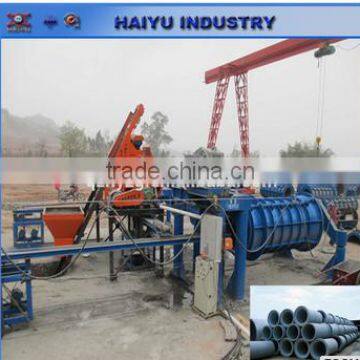

suspension roller concrete pipe machine
1. Overview of Suspension Roller type Concrete Pipe Machine
2. Working Principle of Suspension Roller type Concrete Pipe Machine
This machine uses the Roller to support the concrete pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete between the mould and the roller will be compacted solid to form a pipe.
3. Character of Suspension Roller type Concrete Pipe Machine
3.1 Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.
3.2 This pipe machine uses the dry cast material, there will no waste cement mud, then it won't pollute the environment.
3.3 During the production, the noise is low, it is about 80-90 DB.
3.4 The concrete pipes are with high pressure load and with high production efficiency.
4.Technical Parameter of Suspension Roller type Concrete culvert Pipe Machine
| XG 200-600 | XG 800-1200 | XG 1000-1500 | XG 4M | |
| Diameter | 200-600mm | 800-1200mm | 1000-1500mm | 300-2000mm |
| Length | 2000mm | 2000mm | 2000mm | 1000-4000mm |
| Power of Motor | 15KW | 45KW | 90KW | 110KW |
| Capacity | 10-15Pc/h | 8-12Pc/h | 6-10Pc/h | 6-8Pc/h |
| Labor demand without feeding machine | 4-5 | 4-5 | 4-5 | 4-5 |
| Labor demand with feeding machine | 3-4 | 3-4 | 3-4 | 3-4 |
| Joint | Plain,socket and spigot,male and female | Plain,socket and spigot,male and female | Plain,socket and spigot, tongue and groove | Plain,socket and spigot,tongue and groove |

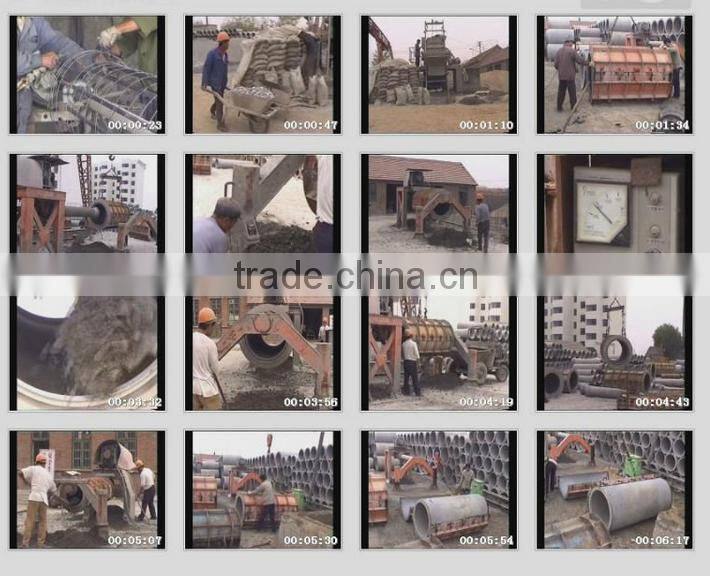

production for concrete pipe
1.Complete production line supporting machines and all necessary accessories with high performance and good quality;
2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.

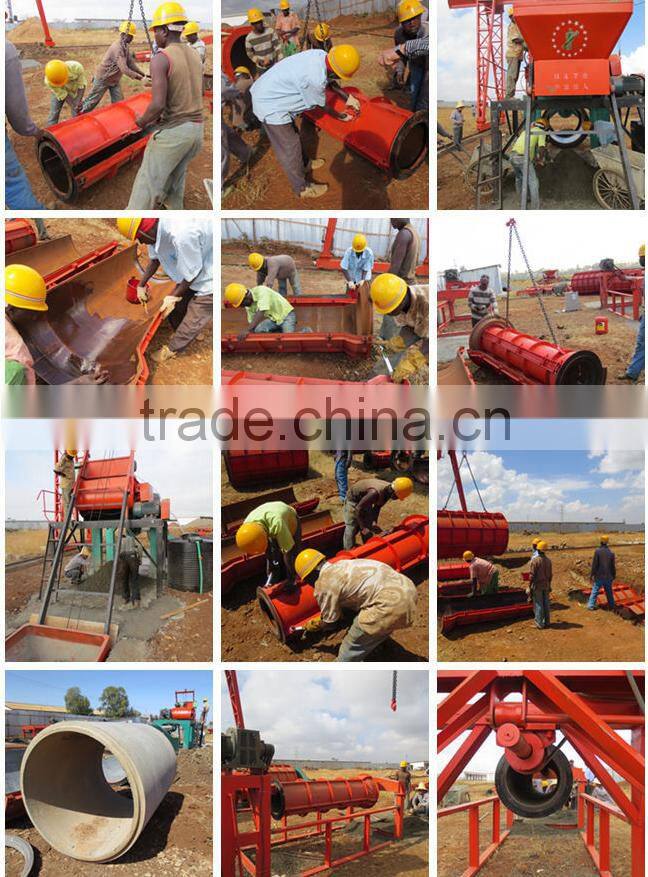

3.Installation and commissioning of all production machines as well as the workers training.
We will make every effort to provide different satisfactory solutions for prestressed concrete pole project according to different requirements of our clients all over the world!
We promise our customers:
High Qaulity ,
Professional Guidance,
Satisfactory After-Sale Service!
Warmly Welcome To Visit Our Factory !
