Roll Packing Heat Shrinkable Tube & Heat Shrink Tube

Roll Packing Heat Shrinkable Tube & Heat Shrink Tube thumbnail-1
Roll Packing Heat Shrinkable Tube & Heat Shrink Tube photo-1
US$ 0.02 - 1.45 MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JESUO
Model Number:
1.0mm~70mm
Contact Supplier Request Quote Chat Now
Wenzhou Jieshuo Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JESUO
Model Number 1.0mm~70mm
Type Insulation Sleeving
Material Other, PE, Polyolefin
Application Low Voltage
Rated Voltage 600v
Tensile Strength ≥14Mpa

Product Description

1.Name:2:1 Insulation pvc heat shrink tube



2.Shrindageratio :2:1,3:1



3.Characteristic :Heat  shrinkable  tubes  are  featured  with  halogen  free,  environmental  protection,  fire
retardation, insulation, flexible, elasticity, low shrinkage temperature, rapid shrinkage, etc



4.Application: Heat Shrinkable Tube are widely  applied  to  wire  connection,  soldered  joint  protection,  end  treatment  of  wire,  wire marking, rust prevention and corrosion protection of metal, insulation protection of resistor and capacitor, etc. The  large  tubes can be applied  to copper-bar, aluminum-bar and other  low-voltage tank brackets, shrindageratio is 2:1,3:1



Roll Packing Heat Shrinkable Tube & Heat Shrink Tube







Advantages







Complete products: Heat Shrink Tube,Electrical tape,Expand Nail,Wire Duct,Hose Clamp etc wiring accessories series
Quality assurance: Strict quality control before shipment
High efficiency: Handling customer questions within 24 hours
Increase customer utility: Personal tracking, 10 to 15 days shipment after received payment









Size Heat Shrinkable Tube

Specification
mm		 AS Supplied After Shrinkage Cable Range Packing
(M/Roll)
mm
1.D		 Thickness mm
1.D		 Thickness
Ø1.0/0.5 1.50±0.30 0.20±0.05 0.6 0.35±0.05 0.50~0.90 200
Ø1.5/0.75 2.00±0.30 0.20±0.05 0.8 0.35±0.05 0.75~1.40 200
Ø2.0/1.0 2.50±0.30 0.20±0.05 1 0.42±0.05 100~1.80 200
Ø2.5/1.25 3.00±0.30 0.20±0.05 1.25 0.42±0.05 1.25~2.30 200
Ø3/1.5 4.00±0.30 0.20±0.05 1.75 0.42±0.05 1.75~3.20 200
Ø4.0/2.0 4.50±0.30 0.20±0.05 2 0.45±0.05 2.00~3.60 200
Ø5.0/2.5 5.50±0.30 0.28±0.05 2.5 0.50±0.08 2.50~4.50 100
Ø6.0/3.0 6.50±0.30 0.28±0.08 3 0.50±0.08 3.00~5.40 100
Ø7.0/3.5 7.50±0.30 0.30±0.08 3.5 0.55±0.08 3.50~6.30 100
Ø8.0/4.0 8.50±0.30 0.30±0.08 4 0.60±0.08 4.00~7.20 100
Ø9.0/4.5 9.50±0.30 0.30±0.08 4.5 0.60±0.08 4.50~8.00 100
Ø10.0/5.0 10.50±0.50 0.30±0.08 5 0.60±0.08 5.00~9.00 100
Ø11.0/5.5 11.50±0.50 0.30±0.10 5.5 0.60±0.08 5.50~10.00 100
Ø12.0/6.0 12.50±0.50 0.30±0.10 6 0.60±0.08 6.00~11.00 100
Ø13.0/6.5 13.50±0.50 0.35±0.10 6.5 0.65±0.08 6.50~12.00 100
Ø14.0/7.0 14.50±0.50 0.35±0.10 7 0.65±0.08 7.00~13.00 100
Ø15.0/7.5 15.50±0.60 0.40±0.12 7.5 0.70±0.08 7.50~14.00 100
Ø16.0/8.0 16.50±0.60 0.40±0.12 8 0.70±0.08 8.00~15.00 100
Ø18.0/9.0 19.00±0.60 0.40±0.12 9 0.80±0.15 9.00~17.00 100
Ø20.0/10.0 21.00±0.60 0.40±0.15 10 0.80±0.15 10.00~19.00 100
Ø22.0/11.0 23.00±0.70 0.45±0.15 11 0.90±0.15 11.00~21.00 100
Ø50.0/25.0 50.50±0.70 0.50±0.15 25 1.00±0.15 25.00~49.00 25
Ø60.0/30.0 60.50±0.70 0.55±0.15 30 1.00±0.20 30.00~59.00 25
Ø70.0/35.0 70.50±0.70 0.55±0.15 35 1.00±0.20 35.00~69.00 25

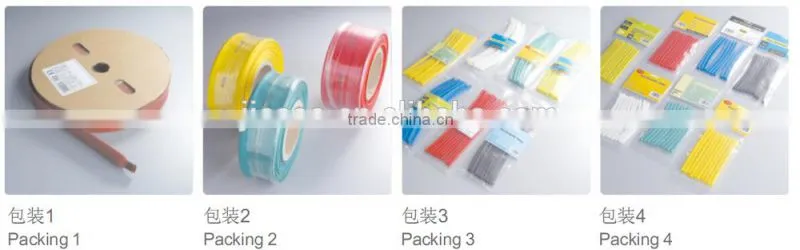

Packing Style

Roll Packing Heat Shrinkable Tube & Heat Shrink Tube
