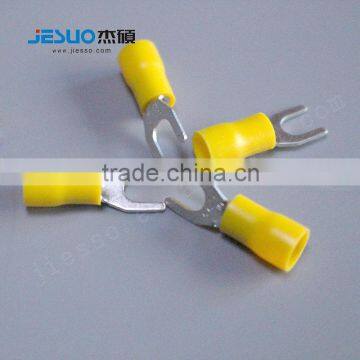

SV Insulated Fork Cable c Crimp Terminal Connector
US$ 0.66 - 0.96
MOQ: 1000 Bags
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JESUO
Model Number:
RV,SV,FDD,MDD,E,TE,SC,PTV...
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MPD Type Insulated Male Bullet Crimp TerminalUS$ 1.17 - 1.19MOQ: 1000 Bags -
BV- Long Type Nylon Fully Insulated Middle Joint Terminal Cable LugUS$ 1.32 - 1.35MOQ: 1000 Bags
-
E Series Tube Type Per-insulation TerminalUS$ 0.2 - 3MOQ: 100 Bags
-
SC JGK Copper Connecting Terminal/cable Lug Price/cable ConnectorUS$ 0.01 - 10MOQ: 100 Pieces
-
Tin Plated Copper Cable Terminal Lugs SC(JGK)US$ 0.032 - 9.31MOQ: 10000 Pieces
Place of Origin
Zhejiang, China
Brand Name
JESUO
Model Number
RV,SV,FDD,MDD,E,TE,SC,PTV...
Type
Crimp Terminal
Product Description
1.sv cable fork terminal lug ,fork shape pre-insulation terminal,brass terminal connector ,brass insulated terminal ,
2.Full ranges of terminals for selection
3.Sample free
Advantages
| Complete products: | insulate terminals,terminal block, etc 36 kinds of wiring accessories series |
| Quality assurance: | strict quality control before shipment |
| High efficiency: | Handling customer questions within 24 hours |
| Increase customer utility: | personal tracking, 15 to 25 days shipment after received payment |
Size
Schematic diagram
Dimension
| Size of cable:0.5~1.5mm2 (A.W.G 22~16) Max. Current=19A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| SV1.25-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | 1.8 | Red |
| SVS1.25-3.7 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | ||||
| SVL1.25-3.7 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | ||||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | ||||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS1.25-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 | ||||
| SVL1.25-6 | 1/4 | 6.5 | 12 | 21.7 | 11 | ||||
| Size of cable: 1.5~2.5mm2 (A.W.G 16~14) Max. Current=27A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| SV2-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | 2.4 | Blue |
| SVS2-3.7 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | ||||
| SVL2-3.7 | #6 | 3.7 | 6 | 21.2 | 6.5 | ||||
| SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | ||||
| SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS2-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 | ||||
| SVL2-6 | 1/4 | 6.5 | 12 | 21.7 | 11 | ||||
| Size of cable: 2.5~4mm2 (A.W.G 14~12) Max. Current=37A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| SV3.5-3.7 | #6 | 3.7 | 8 | 24.8 | 7 | 12.5 | 6.2 | 3.2 | Black |
| SV3.5-4 | #8 | 4.3 | 8 | 24.8 | 7 | ||||
| SV3.5-5 | #10 | 5.3 | 8 | 24.8 | 7 | ||||
| SV3.5-6 | 1/4 | 6.5 | 12 | 28 | 12 | ||||
| Size of cable: 4~6mm (A.W.G 12~10) Max. Current=48A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| SV5.5-3.7 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | 4 | Yellow |
| SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | ||||
| SVL5.5-4 | #8 | 4.3 | 9 | 23.9 | 7.5 | ||||
| SV5.5-5 | #10 | 5.3 | 9 | 23.9 | 7.5 | ||||
| SVS5.5-6 | 1/4 | 6.5 | 9 | 23.9 | 7.5 | ||||
| SVL5.5-6 | 1/4 | 6.5 | 12 | 31.2 | 12 | ||||
| SV5.5-8 | 5/16 | 8.4 | 14 | 30 | 11.5 | ||||
