Low Cost Mini Computer With Pentium Quad Core N3510 2Ghz DDR3L COM USB3.0 HD Ports Linux Android Computer Home Desktop
New Design Mini PC with Intel Pentium N3510 2GHz/N3520 2.166GHz Quad Core Intel HD Graphics HDMI RS232 USB3.0 HD Streaming Support
Standard Configuration we will send with the PC after payment
-Intel Pentium Quad Core N3510 2GHz/N3520 2.166GHz Processor
-Intel HD Graphics
-No memory.
Optional 0/2/4/8GB RAM DDR3 (Brands among Elpida, Hynix, SAMSUNG, Kingston, ADATA by random)
-No Storage
Optional 0/8/16/32/64/128/256GB SSD (Brands among Kingfast, T0SHIBA by random)
Or 160G/320G/500G Hard drive (Brands among HlTACHI, Western Digital, SeaGate and others by random)
-300M WIFI with dual antennas
-Bluetooth 4.0 USB Dongle
-HDMI Cable
Accessories: Power adapter (Europe/US/UK stype plug optional), desktop bracket (or VISA bracket). Reminder: If you order HDD, desktop bracket are suggested only.
Important Notice
The old V7-N3510 model has stopped supply, the current model with bit larger case 175*120*35MM, and coming with 2 RS232 ports. Please don't order it if you don’t like larger size. The old one size is 140*100*30MM, without RS232 ports.
Free Operating System: Default installed OEM cracked version Win7 32/64bits in English(Genuine Verison add US$50), other languages can be selected among Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install.
Suggested Pre-installed OS for Different Configuration
- 1. Windows 7 64bits/Win8: At least 4G RAM+320G HDD or 64G SSD to make it run smoothly
- 2. Windows 7 Simple Version: At least 2G RAM+16G SSD or 160G HDD or up
- 3. Android/LINUX: Android OS is charged, we don’t offer it usually. LINUX we usually offer Ubuntu.
About Shipping
1.Please select the shipping method (FEDEX, DHL, UPS, ARAMEX, EMS etc) you prefer, make sure your area has the courier service which you selected.
2.Leave us the full address with zip code, correct receiver’s full name and mobile number to insure the parcel arriving in your hand.
3.If you use DHL while your area locates in remote, please kindly add the remote delivery fee before your order (we must know your place zip code to check out if receiving place locates in remote)
4.Informing us what product name and valume should be written on the shipping invoice after your order will be much appreciated.

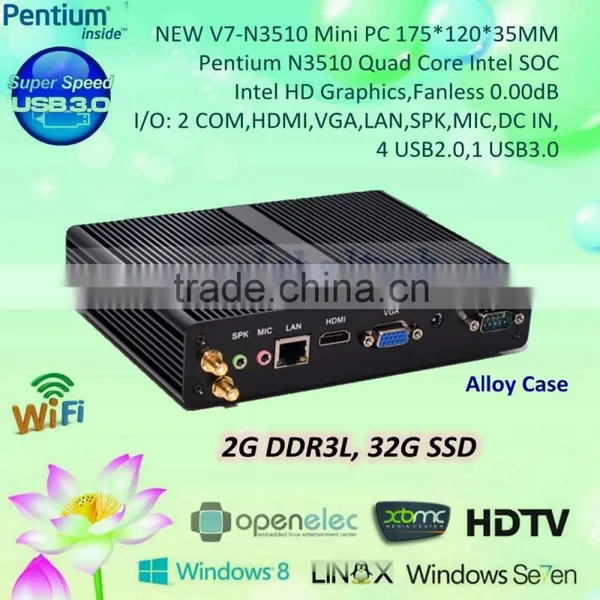

EGLOBAL Quad Core NEW Mini PC NEW V7-N3510/N3520 Top Advantages
- 1. Fast & Special: Quad core, fast computing, has both RS232 and HDMI Ports
- 2. Saving: Pentium Core, doing well on performance and saving energe
- 3. Stable: Fanless+Intel SOC+N3510/N3520 Core+Embedded SSD
- 4. Small: only 175*120*35MM Size
- 5. Strong: Aluminium Alloy Case, protect the inner structure well
- 6. Smart: Multiple OS supporting Win8/Win7/Android, support both 32bits and 64bits OS
EGLOBAL Quad Core NEW Mini PC V7-N3510/N3520 Main Features
1. Processor: Onboard Intel Pentium N3510 2GHz/N3520 2.166GHz ProcessorQuad Core
2. Compatible Operating System: Windows 8/ Windows 7/ Android/ LINUX
3. Storage (optional): SSD: 8GB/16GB/32GB/64GB/128GB/256GB or HDD 160G/320G/500G/1TB
4. Memory (optional): 2GB/4GB/8GB DDR3
5. Resolution: Support 1920*1080 HD resolution
6. Network: 1000Mbps Adaptive Ethernet RJ45
7. Ports: 2 RS232 (COM), 1 HDMI, 1 VGA, 1*RJ45, 1* USB3.0,4*USB2.0, 1 MIC, 1 SPK, 1 DC Power in
EGLOBAL Quad Core NEWMini PC V7-N3510/N3520 Specifications
General | |
CPU |
Onboard Intel Pentium N3510 2GHz/N3520 2.166GHz Processor (Turbo boost Technology) Quad Core 4 threads |
CPU(FSB) |
100MHz |
Lithography |
22 nm |
Max TDP |
7.5W |
L2 Cache |
2MB |
Instruction Set |
64-bit |
BIOS |
AMI BIOS, ACPI supported |
Chipset |
Intel SOC |
|
Memory Memory Type Memory Channels |
1* SD-DDR3 SDRAM slot DDR3L-1333/1066Max 8GB 2 |
Storage |
SSD: 8G/16G/32G/64G/128G/256G HDD: 160G/320G/500G/1TB |
Operating System |
Windows 7/Windows 8/ Android/ LINUX |
Audio |
ALC662 chip, 6 channel sound |
Network |
Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN Optional 300M WIFI with dual antenna or 300M WiFi&Bluetooth |
Video |
Intel HD Graphics Graphics Base Frequency 313 MHz Graphics Max Dynamic Frequency 750 MHz Intel® Quick Sync Video support VGA and HDMI full screen HD playback |
I/O port | |
front panel ports |

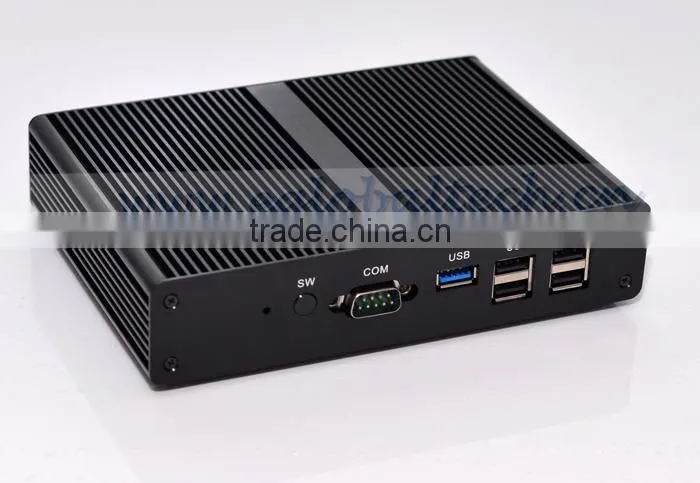

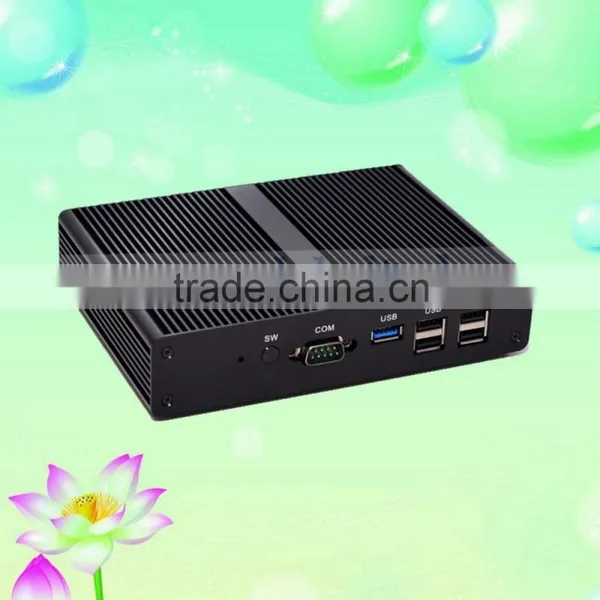

1*RS232 (COM), 1* DC IN, 1* Power indicator and switch, 4*USB2.0 ports, 1*USB3.0 port |
Backside ports |

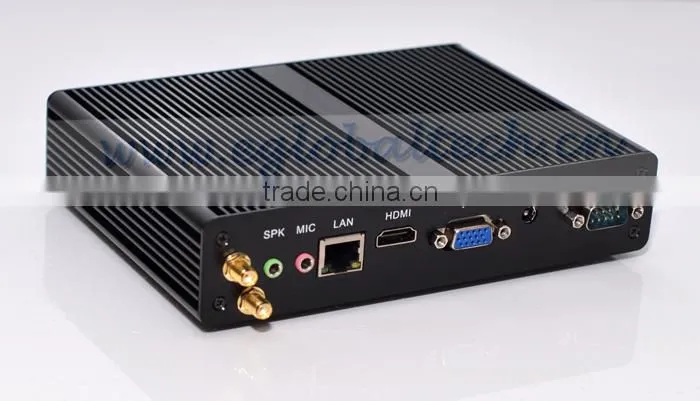

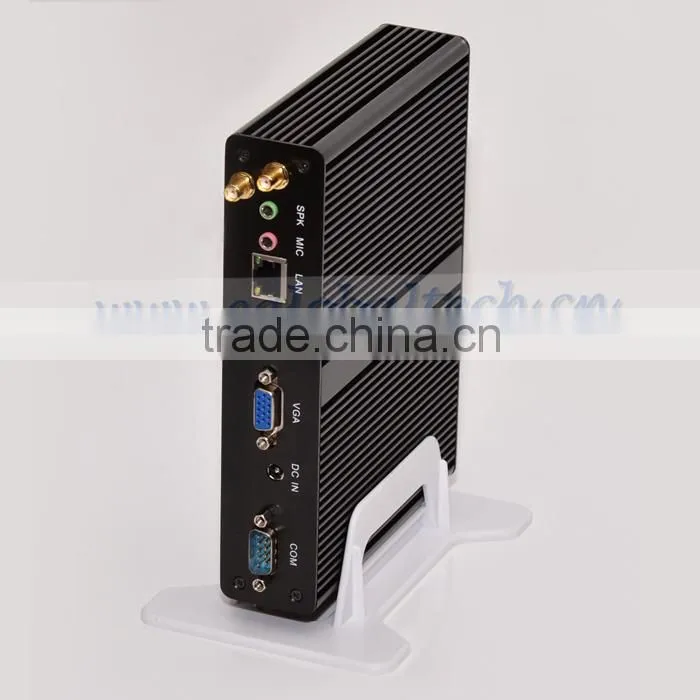

1*RS232 (COM), 1*DC IN, 1*HDMI port,1*VGA port, 1*LAN port(RJ-45), 1*MIC, 1*SPK |
Internal ports |
1*mini-PCIE port(m-SATA SSD, 3Gbps) 1*mini-PCIE port(WIFI) |
Power and Working Environment | |
Input |
DC100-240V AC/50-60Hz |
Output |
DC 12V~19V/3A |
Operating Temperature |
0/70 Centigrade(32F~140F) |
Storage Temperature |
-20/+80 Centigrade |
Relative Humidity |
10%~90% (non-condensing) |
energy-saving |
Support Energy-saving technology, Speedstep |
64 bit computing |
Support 64 bit computing |
virtualization |
Support Virtualization technology |
hyper-threading |
NO |
Product Dimension & Details | |
Size |
175*120*35MM |
Weight |
1.5kg |
Consumption |
7~15W |
Shell |
All black aluminum alloy |
Package Content |
Mini PC, Power Adapter, Desktop Bracket/VISA Mount |
EGLOBAL Quad Core NEW Mini PC V7-N3510/N3520 Application
- Living Room as Home Theater Personal Computer(HTPC). Connect your TV with the HDMI cable, you can enjoy education online and play internet movies or games.
- Offices. High performance, tiny size, smart design, support Windows 8/7/ Linux system, multi USB ports for data transfer.
- Fancy Hotel Rooms. Diskless, locally run, smart design, upgrading hotel service
- Classrooms or training centers.
- banks, shops, stores.
- Integrated with monitor, touch screen monitor or tables.
