Specifications
1.With Microphone,1 USB port2.Support 18 Users
3.Energy-efficient (under 5 watts per user)
4.For 1280x1024, 16bit color
N230 16 Bit Colour Multi User Pc Station With USB Memory Port Under 5 Watts Energy-efficient
Overview
1 monitor+1 keyboard+1 mouse + 1 Thin Client PC Station Terminal N230M=1 traditional desktop computer.
|
01 USB port 02 Speaker jack 03 Mic Inport 04 PS/2 keyboard 05 PS/2 Mouse |
06 RJ45 port for Cat 5e cable to Ethernet LAN 07 VGA monitor port 08 Power jack for DC 5V IN 09 Power Switch (on/off) |
Thin Client PC Station Terminal N230M virtual desktops share the excess power of standard PCs and make computing simple and affordable.When using Thin Client PC Station Terminal N230M,you can save money by sharing the cost of a single PC among multiple users.And your users feel like they each have their own PC while they simultaneously share common applications—including web browsers,email,office suites,and multimedia.
Every user has their own keyboard,screen,settings,applications,and data files,so their experience is just like it would be if they were working at an independent PC.
Thin Client PC Station Terminal N230M Save money, time, and aggravation
1.Efficiently share one PC with unlimited users
2.Dramatically reduce acquisition & support costs
3.Easy to set up, maintain, and secure
4.Flexible Ethernet networking
5.Supports all Windows professional os
6.Compact and reliable
7.Energy-efficient (under 5 watts per user)
Specification
Hardware
Size
Access Device: 115*115 *26 mm
Shipping Size: 235*147*44mm
Weight
N230M Terminal: 200g
Shipping Weight: 450g
Power Supply
Input: 100-250 VAC, 50-60 Hz; Output: 5 VDC, 2 A
Nominal consumption: 5 Watts
Front LED Indicators
Power: connection to power supply
LAN: connection to network
Ready: connection to host PC
Connection to Host PC
Via 100 Mb/s switched Ethernet connection
Video Resolution
640x480, 800x600, 1024x768 (at 60 or 75 Hz
refresh rate), 1280x1024 (~63 Hz). Up to 16-bit color support.
Audio
Stereo output via speaker port and Stereo input via Mic port
Internal HW
1.All solid-state design, no moving parts, no fans, no local user storage
2.Eglobal System-on-Chip with SDRAM and flash
3.Embedded Eglobal operating firmware (no local user OS)
Reliability (MTBF)
>>100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40°C)
HW Security
No local user storage
TERMINAL SERVICES SOFTWARE
Max # Users Per PC
max 18 users
User Software
PC Station terminal services software
Supported Operating Systems
Microsoft: Windows XP Professional and Media Center Edition 2005
Windows Server 2003/2008, Small Business Server 2003
Linux: several variants (refer to support section of Website for latest supported revisions of Linux)
SYSTEM REQUIREMENTS AND OPTIONS

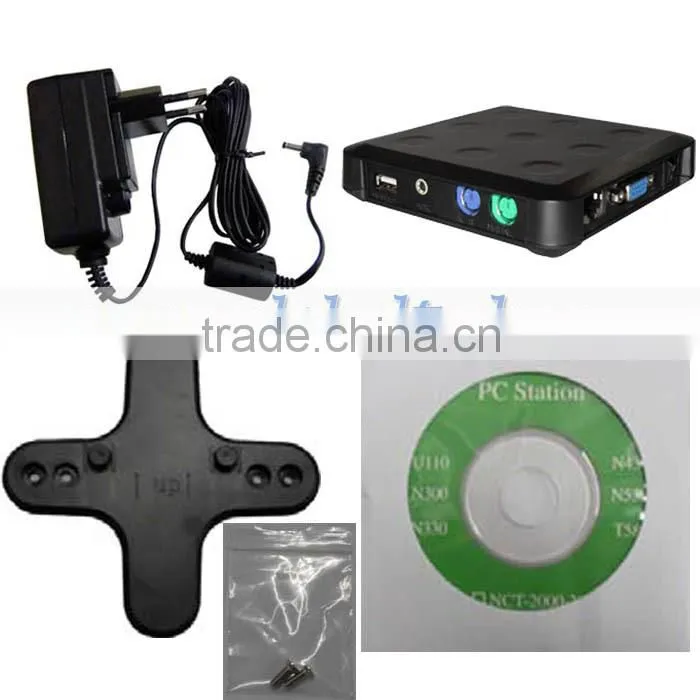

Kit Contents
EGLOBAL PC STATIONS Kit includes access terminal, power supply, software installation & user’s guide and other peripherals are NOT included and must be purchased separately.
