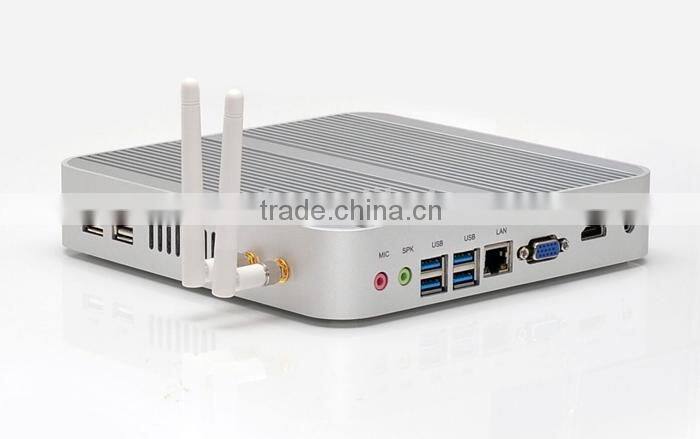

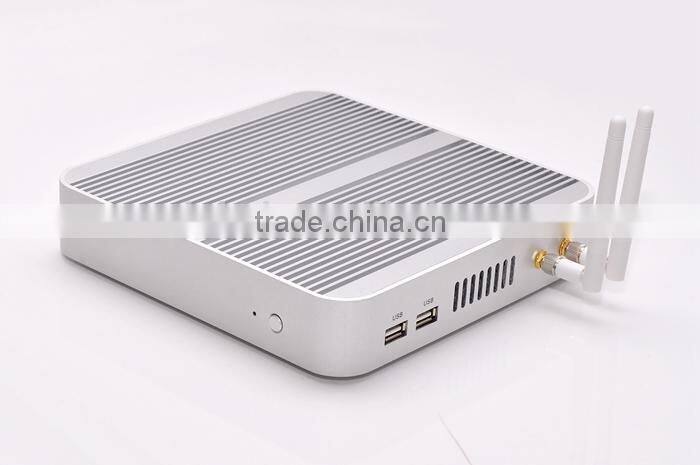

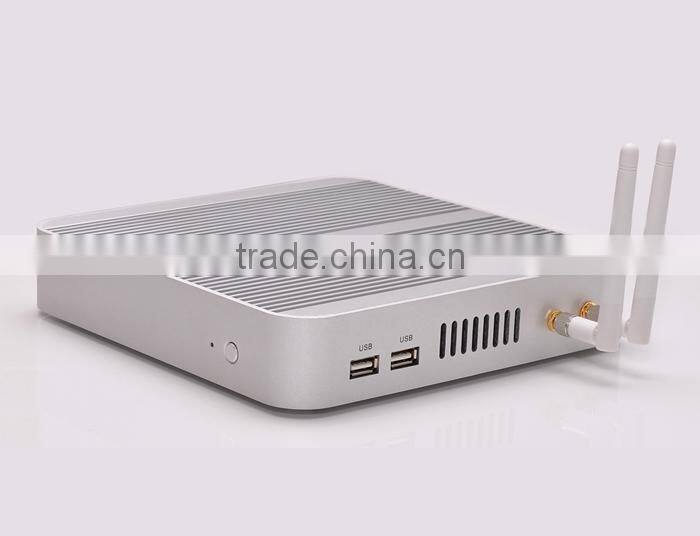

Win8 Digital Signage
*Intel Core I5 Dual Core 1.7GHz
*Blue-ray & 3D Supports
*For Windows8 Platform
*Fanless
NEW Arrival Intel Core i5 Fanless MINI PC with INTEL HD4000 Graphics USB3.0 Interface Intel Ivy Motherboard Blue-ray & 3D Games Supporting
Top Advatanges
1. Special: 64 bits computing, ; Support SSD and HDD together, up to 128G SSD or 1TB Hardisk large volume; has 4 USB*3.0 Ports
2. Stable: Intel Ivy i5+Intel HD4000 Graphics+Fanless
3. Smart: Fanless system, smart design, low noise, be able to work 24hours per day
4. Slim: Only 2.9cm body thickness
5. Smooth: Support 3D games, blue-ray and VLC HD streams, full 1080P
6. Strong: Work with any brand monitors; Suit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects
Main Features
1. Processor: Intel Core i5 3317U 1.7 GHz Dual Core
2. Compitable Operating System: Windows 8/ Windows 7/ Linux
3. Storage (optional): SSD: 8GB/16GB/32GB/64GB/128GB
or HDD: 160GB/320GB/500GB/750GB/1TB
4. Memory (optional): 2GB/4GB/8GB DDR3
5. Resolution: Support 1920*1080 HD resolution
6. Network: 1000Mbps Adaptive Ethernet RJ45
7. Ports: 1 HDMI, 1 VGA, 4 USB3.0, 2 USB2.0, 1 MIC, 1 SPK, 1 DC Power in
Specifications
* 24hours stable working *Kits for mounting behind of monitors are coming free
General | |
Processor | Intel Core i5 3317U1.7GHz Dual Core 4 thread |
Operating System | Windows XP/ Windows 7/ Linux |
Storage | SSD: 8GB/16GB/32GB/64GB/128GB HDD: 160GB/320GB/500GB/750GB/1TB |
Memory | 2GB/4GB/8GB DDR3 |
Model | Intel NM77 Express High Speed Chipset |
Processor details | |
CPU | Intel Core i3 3217U |
Speed | 1.8GHz(100MHz x 18.0) |
Processor Number | 2 core/ 4 threads |
Core code | Ivy Bridge |
Technique | 22nm |
L1 data cache | 2 * 32 KB |
L2 code cache | 2 * 32 KB |
L3 cache | 3 MB, CPU Intergrated |
Characteristic | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AVX |
BIOS | AMI BIOS, ACPI supported, support call on fanction automatically |
Function | Hyper-Threading, Virtualization technology, 64 bit computing |
Graphic Cards | Intel HD Graphics 4000 Fundamental Frequency 350MHz Max Frequencty 1050MHz |
Audio Cards | ALC662 sound chip, 6-channel |
Network card | RTL8111DL PCI-E Gigabit Ethernet NIC |
Ethernet | 10/100/1000 BaseT LAN |
WIFI | With dual antenna, 802.11.b/g/n(150M or 300M) |
I/0 Port | |
Display port | 1* VGA + 1 * HDMI |
USB port | 4* USB 3.0, 2 * USB2.0 |
SATA port | 1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s |
MINI PCIE | 1 * MSATA SSD, 1 * WiFi module |
Ethernet port | RJ45 10/100/1000 Mbps Adaptive |
Power input port | 1 inner diameter 2.5mm,external diameter 5.5mm |
Audio port | Standard 3.5 Audio input and output |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC 12V/3A |
Type | External power adapter mode |
Consumption | 17W |
Noise | Fanless System |
Temperature | 0-70 Centigrade |
Humidity | 10%-90% |
Application
- Living Room as Home Theater Personal Computer(HTPC). Connect HDTV with the HDMI cable, you can enjoy education online and play internet movies or games.
- Factories
- Classroom, banks, supermarkets manager rooms, stores.
- Integrated with monitor, touch screen monitor or tables.
- Others places you can think of.
