Cheapest Fanless Mini PC Intel Atom N270 Mini Desktop PV 12V with Linux OS

General

Processor

Intel Atom N270 Core 1.6GHz main Frequency, 533MHz External Frequency, 512 MHz Cache, Consumption 4W, fanless, whole computer consumption less than 20W

BIOS

AMI BIOS, ACPI supported

Operating System

Windows XP/ Windows 7/ Linux

Storage

SSD: 8GB/16GB/32GB/64GB/128GB

HDD: 160GB/320GB/500GB/750GB/1TB

Memory

1* SO-DDR2 SDRAM slot, max 2G DDR SDRAM

PC533/667/800 DDR SDRAM

Model

Intel® 945GSE Express Chipset
MCH: 945GSE + ICH7 mBGA
FWH

Processor details

CPU

Intel Atom N270 Core 1.6GHz

Speed

1.6GHz(100MHz x 16.0)

Processor Number

1 core/ 2 threads

Technique

45nm

Slot

PBGA437

Display Card Details

Graphic Cards

Intel GMA950, 128M video memory standard, max 256M

Audio Cards

ALC662 chip, 6 channel sound card

Network

Network card

RTL 8111DL 10/100/1000 Base T LAN, support diskless RPL or PXE guiding

WIFI

802.11.b/g/n(150M or 300M Optional)

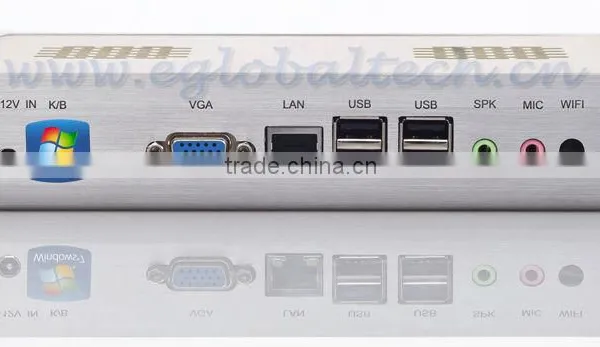

I/0 Port

Display port

1* VGA

PS/2 port

1* PS/2

USB port

6* USB 2.0

COM port

Optional, can add dual Com port

Ethernet port

RJ45 10/100/1000 Mbps Adaptive

Power input port

1 inner diameter 2.5mm,external diameter 5.5mm

Audio port

Standard 3.5 Audio input and output

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V/3A

Type

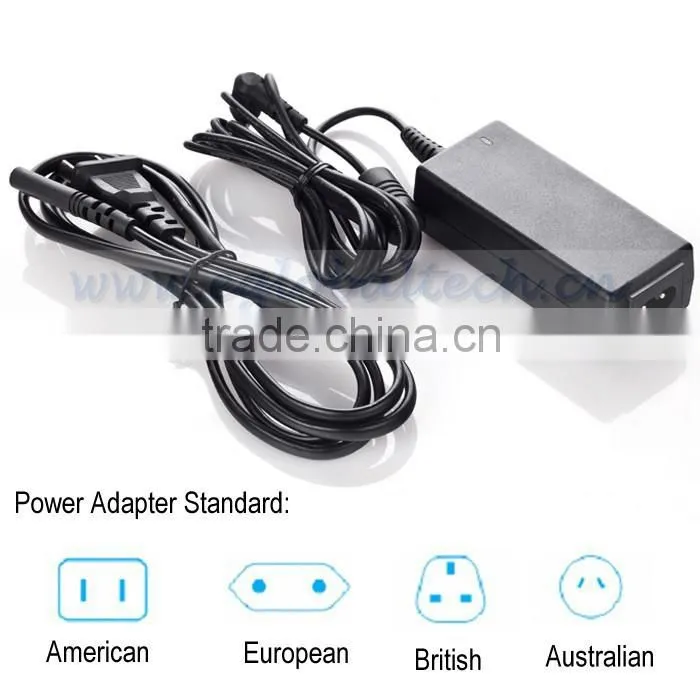

External power adapter mode

Consumption

12~16W

Noise

Fanless System

Temperature

0-90 Centigrade

Humidity

10%-85%

Case

Black Color Full Ally Case

Package Content

Mini PC device, Power Adapter, a Stand Holder

Eglobal Technology Co Ltd(HK Company), established in 2009, is a high-tech company in line with latest computer technical. Within the last five years, Eglobal devote into thin client pc station and mini pc development and supplying. With its deeply-accumulated experience and knowledge of oversea marketing, Eglobal create own brand, soonly get big worldwide market, market includes Latin America, Asia, Africa and some European countries.

Shenzhen Eglobal Import&Export CO., Limited(CN Company), established in 2013, cooperated with Alibaba to expand our market all over the world. Eglobal on Alibaba: http://eglobal.en.china.cn/

In order to make it more strong, and supply more high-tech and competitive products, make market into more other countries, Eglobal come to cooperate with several other factories and build its large wholesale center. Now our products including many other Computer and Network Products, Security Products, Printing Supplies and other Electronic Accessories.

We supply wholesale OEM & ODM service, including designing and printing customer outside color package, build in customer logo into our software along with the hardware, produce customer designed product shape and so on.
