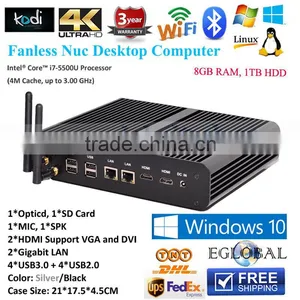

5 Gen Intel CPU Core i7 5500U Mini PC Windows10 intel HD 5500 Graphics 2*LAN port 2HDMI port Gaming PC Barebone Computer

General

CPU

Onboard Intel Core i7 5500U 2.4GHz Dual Core Four Thread Max 3.0MHz(Turbo boost Technology) processor

Core (FSB)

100MHz

CPU Slot

FCBGA 1168

CPU Technique

14nm

L3 Cache

4MB, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support calls on function automatically

Support Wake-On-LAN

Chipset

Intel Broadwell-U

Memory

2* SO-DIMM DDR3L Slot(1slot back of motherboard)

Support 4GB/8G/16G

Dual Channel, DDR3L 1333/1600, LPDDR3 1333/1600

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G

HDD: 160G/320G/500G/1TB

Operating System

Windows 7/Windows 8/ Linux

Audio

ALC897 chip, 7.1 channel sound

Intel Lynx Point-LP HDA

Network

Onboard Redlrik RTL8168E PCI-E Gigabit Ethernet NIC

Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN

Video

Intel HD Graphics 5500(300~950MHz)

support HDMI full screen HD playback

support 4K HD DP Interface

support 3D Blu-ray

I/O port

front panel ports

1* Power indicator and switch, 4*USB3.0, 1*SF Card Reader, 1*MIC, 1*SPK,1*Opticd

Backside ports

1* DC IN, 2*HDMI, 2*LAN port(RJ-45), 4*USB2.0,

Internal ports

2*M-SATA3.0 port, support 6Gb/s

1*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/6A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

virtualization

Intel VT-x

hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

21X17.5X4.5CM

Weight

3kg

Consumption

15W~28W

Shell

silver, gold, black color aluminum alloy

Package Content

Mini PC device, Power Adapter, a Stand Holder, A HDMI, 300M WIFI, VESA Mount&Screws(optional)
