Dry Feedstuff Horizontal Ribbon Mixer
- 50 Set / Sets per Month
- Qingdao Tian jing Shanghai port of China
- T/T Credit Card
- High Efficiency Carbonated Drinks Mixer / Beverage Making Machine
- Blending tank manufacturer mixing boiler vessel carbonated fizzy soda drink water mixing system beverage maker machine
- Beverage Carbonation / Syrup Mixing Machine / Mixer / carbonated drink mixer co2
- QHS-2000 advanced technology carbonated mixing machine mixer
- QHS-5000 High Capacity Carbonation Mixer / Mixing Machine
- Carbonated drink mixer processing machine water CO2 mixer beverage mixing machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | ZY Dry Feedstuff Horizontal Ribbon Mixer |
Model Number: | Horizontal Ribbon Mixer | Processing Types: | Other, dry feedstuff | Voltage: | 220v/380v/415v optional |
Power(W): | 2.5-5kw | Weight: | 300kg~2000kg | Dimension(L*W*H): | different model different size |
Certification: | CE& ISO | Warranty: | 13 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Dry Feedstuff Horizontal Ribbon Mixer | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

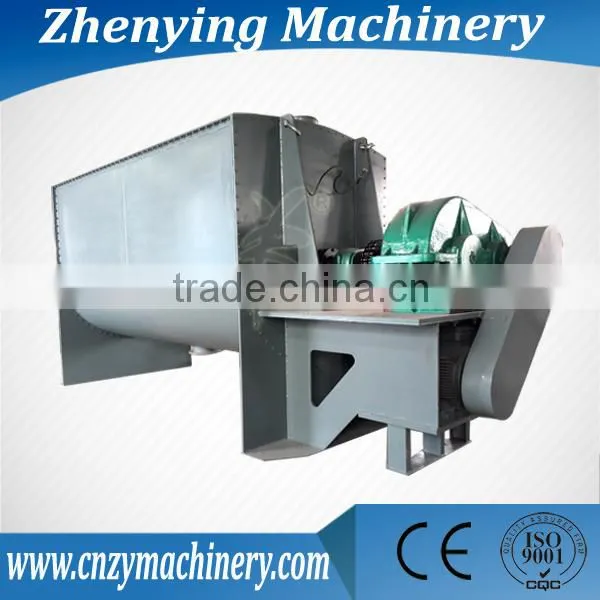

Descriptions Powder Horizontal Ribbon Mixer The machine is composed of container, screw paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre front two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to form convention mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features of Dry Powder Horizontal Ribbon Mixer 1.It is suitable for mixing materials of powder-powder and power-liquid, especially for paste,powder and thick materials, such as putty, stone coatings, metal powders etc. 2.It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low pollution and little destruction to frangible material. 3.The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit. 4.Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time. 5.The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applications of Dry Powder Horizontal Ribbon Mixer The ribbon mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is different to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Special Advantages 1.Flexible material selection 2.Reliable driven unit 3.High efficiency mixing unit 4.Excellent discharging unit Standard valve for horizontal plough shear mixer is pneumatic planar flap valve. When close the valve, the planar flap match the mixing barrel perfectly, this makes no mixing dead zone and better mixing effect. The drive types of valve are Manual, pneumatic, and electric. Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc. 5.Various inlets Various inlets on the top cover of the barrel can be designed according to different situations. They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Parameters
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Services 1.Installation,Debugging. Provide installation files, technical data and related soft copies or videos etc to ensure customer could install and debug by themselves. 2.warranty 24 months for the machine after delivery ,12 months for the motor after delivery. Provide technical support timely.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Company information Mainly manufacture vibrating screen(linear/round rotary sieve shaker,vibrator screen with ultrasonic ,tumbler rotary sieve,flow through filter sieve machine etc), mixer, feeder,conveyor,crusher and related products(magnetic separator) etc. 1.Past through the CE&ISO9001:2008 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Your success is our business! My name:Alma Zhang Mobile phone:86 18738581019 Tel:86 373 5031958 Fax:86 373 3532216 QQ:2080842285 almacnzy005 |
