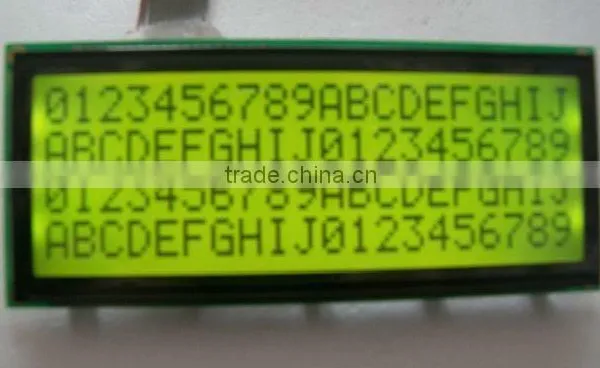

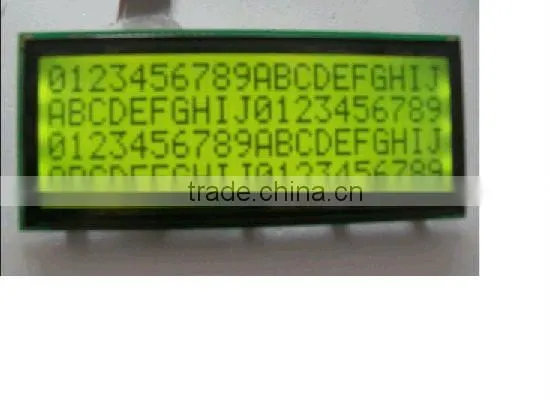

Help Center204 LCD Module
US$ 1 - 2
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Smartdisply
Model Number:
SC204D
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shaanxi, China
Brand Name
Smartdisply
Model Number
SC204D
Type
COB
Specifications
Build-in controller HD44780 or Equivalent5x8 dots,1/16 Duty,COB Board
LED BKL
| Pin | Symbol | Function |
| 1 | Vss | GND |
| 2 | Vdd | Power supply |
| 3 | V0 | Contrast adjustment |
| 4 | RS | H/L Register signal |
| 5 | R/W | H/L Read/Write signal |
| 6 | E | H/L Enable signal |
| 7-14 | DB0-DB7 | H/L Data bus line |
| 15 | A | +5v DC(BKL) |
| 16 | K | 0V(BKL) |
| Item | Range | Unit |
| Vdd-Vss | -0.3~+5.5v | VDC |
| Vin | -0.3~Vdd | VDC |
| Toperation | -20~+70 | °c |
| Tstorage | -30~+80 | °c |
