Home > Consumer Electronics > Display & Accessories > LCD Module > 20*2 Charactor LCD Module LCM

20*2 Charactor LCD Module LCM

Name: 20*2 Charactor LCD Module LCM
Brand: Smartdisplays
SKU: 106996293
Availability: InStock

Smartdisplays (Xian) Co., Ltd.

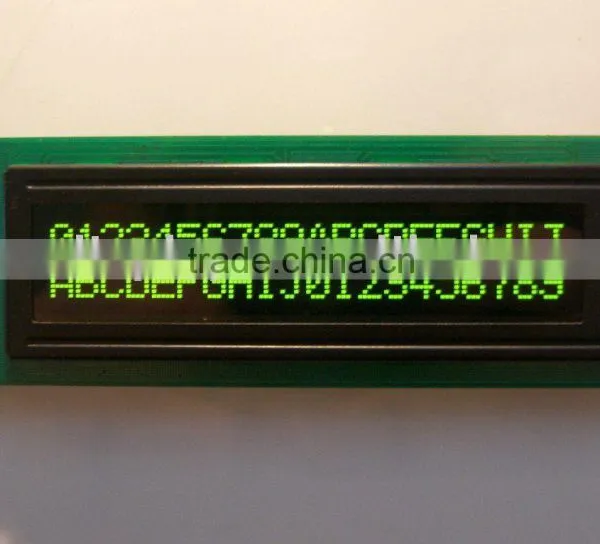

20*2 Charactor LCD Module LCM thumbnail-1

US$ 1 - 3 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Smartdisplays

Model Number:

SC162C

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Smartdisplays

Model Number SC162C

Type Other, PLED

Specifications

1.wide variety of working temperatures ranged from -40 to 80
2.high light
3.low-power dissipation

1. Features

1. 2 lines of 20 characters of 5x8 (dots)

2. Low power consumption

3. High contrast ratio and wide viewing angle

4. Compatible with LCD 20x2 type

5. Controller is compatible with HD44780

6. 4-bits or 8-bit MPU interface

7. High speed MPU interface:2 MHz(VDD=5V)

8. 80x8 bit Display RAM(80 characters max.)

1. Absolute maximum ratings

Symbol	Parameter	Min	Typ	Max	Unit
VDD	Supply voltage for Logic	4.5	5.0	5.5	V
Topr	Operating temperature	-20	25	50	°C
Tstg	Storage temperature	-30		70	°C
Vbt	Brightness control voltage	3		5	V
Tsolder	Soldering Temperature	260°C for 5 seconds
Pd	Module power consumption @Vbt=3V (Note 1)	50	80	130	mW

Item	Operating		Storage
	Min.	Max.	Min.	Max.
Ambient Temperature	-20oC	50oC	-30oC	70oC
Humidity	45oC 85%RH		45oC 85%RH
Corrosive gas	Not Acceptable		Not Acceptable

Note 1. Power consumption was measured with Vbt=3V,VDD=5V and 3 test patterns (all pixels off, random texts, all pixels on).

3 Electrical Characteristics

3.1 DC Electrical Characteristics

(Ta= -20 to 50°C)

Item	Symbol	Condition	Min	Typ	Max	Unit
Power supply voltage	VDD		4.5		5.5	V
Brightness control voltage	VBT		3		5	V
Power supply current	Icc	VDD=5V, (Logical only )		0.35	0.6	mA
High level input voltage	Vih		0.7VDD		VDD	V
Low level input voltage	Vil		-0.3		0.55	V
Leakage current	Il		-1		1	uA

3.2 AC Electrical Characteristics

(Ta= -20 to 50°C)

Write operation

Item	Symbol	Min	Typ	Max	Unit
Enable Cycle Time	Tcyc	500			ns
Enable Pulse Width (High level)	Pweh	230			ns
Enable Rise/ Fall Time	tEf, tEr			20	ns
Address Set-up Time	tAS	40			ns
Address Hold Time	tAH	10			ns
Data Set-up Time	tDSW	80			ns
Data Hold Time	tH	10			ns

Read operation

Item	Symbol	Min	Typ	Max	Unit
Enable Cycle Time	Tcyc	500			ns
Enable Pulse Width (High level)	Pweh	230			ns
Enable Rise/ Fall Time	tEf, tEr			20	ns
Address Set-up Time	tAS	40			ns
Address Hold Time	tAH	10			ns
Data Delay Time	tDDR			160	ns
Data Hold Time	tH	5			ns
