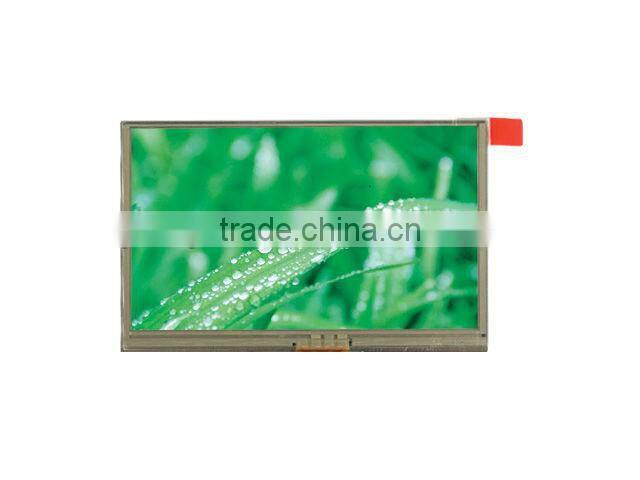

4.3'TFT-LCD Display With 480x272 Resolution

Feature

<1>Brand: INNOLUX <2> Product Model: AT043TN24 V.1  <3>Panel Size: 4.3 inches  <4>Resolution: 480x272  <5>Display Scale: 16:9  <6>Brightness: 400 cd/m2  <7>Contrast Ratio: 500:1(transmission)  <8>Panel Type: a-Si TFT-LCD <9>Signal Interface: RGB(1 ch,8-bit) <10> Features: matt surface; up/down, left/right flip show; white LED backlighting





AT043TN24 V.1 Structural Parameters

• Working Temperature:    -10°C ~ 60°C

• Storage Temperature:    -20°C ~ 70°C

• Panel Weight:    62g

• Surface Treatment:    matt surface

• Resolution:    480(RGB) x 272 (WQVGA)

• Aspect Ratio:    16:9

• Pixel Arrangement:    R.G.B

• Pixel Pitch:    0.198x0.198

• Display Area:    95.04x53.856 mm

• Visual Area:    98.70x57.50 mm

• Size:    105.5x67.2 mm

• Thickness:    4.05 mm

• Touch Screen:    with touch screen



AT043TN24 V.1 Optical Property

• Display Mode:    TN, Normally White Display, transmittance

• Brightness:    400 cd/m2

• Contrast Ratio:    500 :1 (transmission)

• Display Color:    16.7M(8bit)

• Response Time:    10/15(Tr/Td) ms

• Viewing Angle:    70/70/50/70 (up/down/left/right)

• Optimal Viewing Angle:    6 o'clock

• White Field Chroma:    X:0.310; Y:0.330

• Scan Frequency:    1.33/1.43(Typ./Max.)(9points)

• Inversion Scanning:    NO

• Power Consumption:    848mW

• Kind of Signal Interface:    40 pins 0.5mm spacing FPC

• Signal Type:    Parallel RGB(1ch,8bit)

• Signal Interface Voltage:    3.3V

• Signal Interface Current:    17/25mA(Typ./Max.)

• Signal Interface Power:    56mW (Typ.)

• Backlight Tube Position:    side into type light source

• Lamp Type:    WLED

• Lamp Life:    20,000 (h)

• Voltage of Lamp:    19.8V(Typ.)

• Current of Lamp:    40mA(Typ.)
