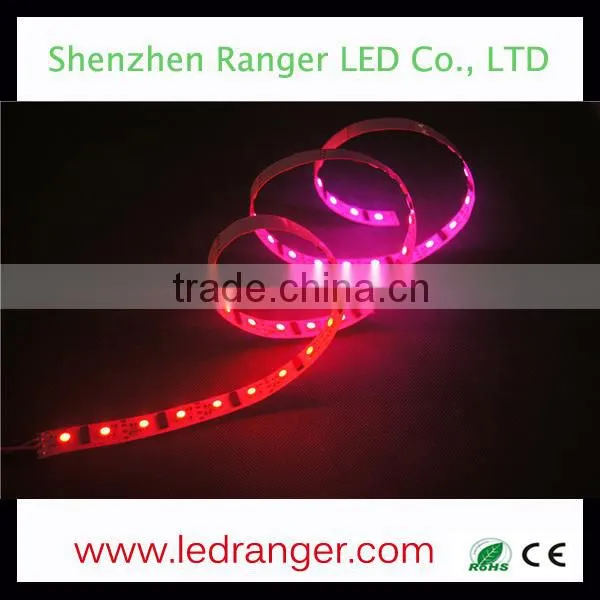

LPD 8806 5v, 48 LEDs/ 48 Pixel Per Meter, LED Strip LPD8806 Programmable

LPD 8806 5v, 48 LEDs/ 48 Pixel Per Meter, LED Strip LPD8806 Programmable thumbnail-1
LPD 8806 5v, 48 LEDs/ 48 Pixel Per Meter, LED Strip LPD8806 Programmable photo-1
US$ 7.8 - 14.5 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD5050 RGB
Type:
Flex LED Strips
Input Voltage(V):
5
Contact Supplier Request Quote Chat Now
Shenzhen Ranger LED Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050 RGB
Type Flex LED Strips
Input Voltage(V) 5
Lamp Power 72
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name Ranger
Model Number RL-LPD8806-5050RGB-48
Product Description

    LPD 8806 5v, 48 LEDs/ 48 Pixel Per meter, LED Strip LPD8806 Programmable

IC TYPE ITEM NO. WIDTH
(mm)		 LED  LED
QTY		 IC
QTY		 PIXEL
QTY		 VOLT POWER GRAY
 GRADE



LPD8806 RL-8806-5050RGB-32 15   32 16 32 5 10 128
RL-8806-5050RGB-36 11   36 18 36 5 12
RL-8806-5050RGB-48 15   48 24 48 5 14.4
RL-8806-5050RGB-52 15   52 26 52 5 15.6
RL-8806-5050RGB-60 15   60 30 60 5 18
RL-8806-5050RGB-36 15   36 6 12 12 12

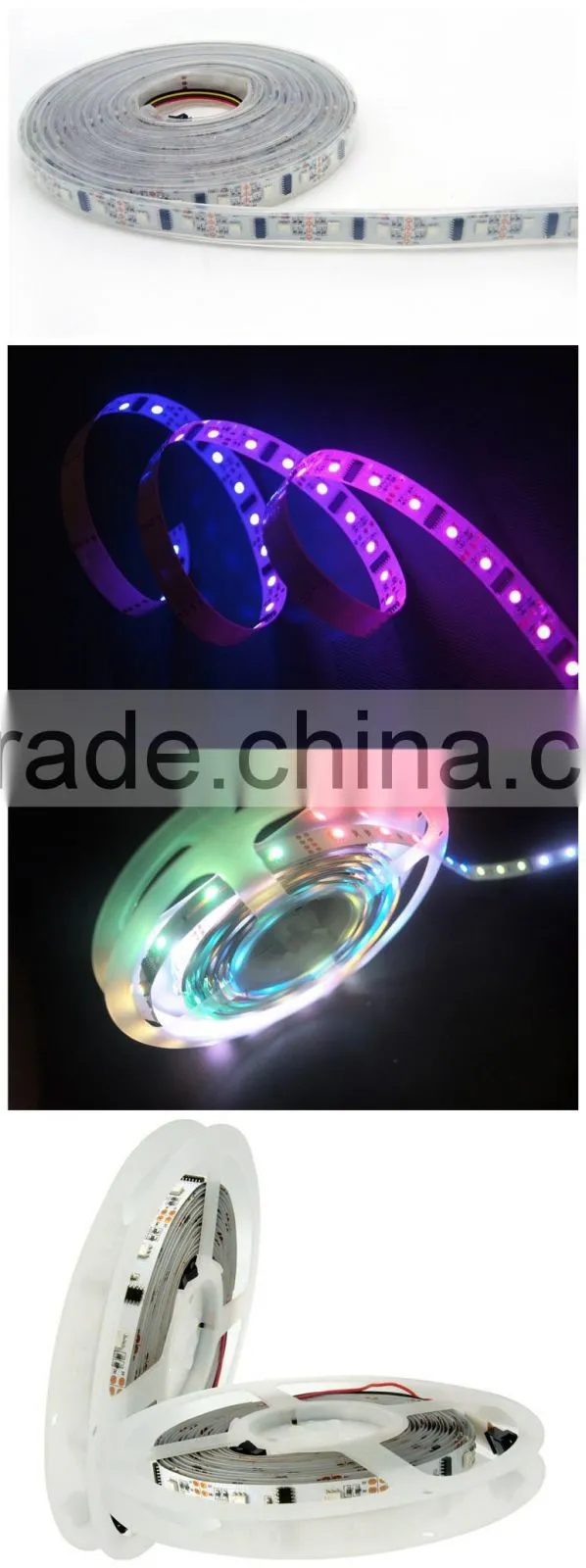

 LPD 8806 5v, 48 LEDs/ 48 Pixel Per meter, LED Strip LPD8806 Programmable

Connection:

1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control



Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video



Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product



Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.

3.Experienced employees that capable for good service

4.Considerate and kind sales-after service.

5.Strict QC procession, ensure each product is high quality.




Our Services



1.Manufacturer with our competitive price

2.Excellent management and technology QC Depa.aftersale team,we can do high technology

   aftersale service.good quality products.

3.Prompt response to your request,

4.Short delivery,

5.Reliable warranty

6.OEM/ODM
