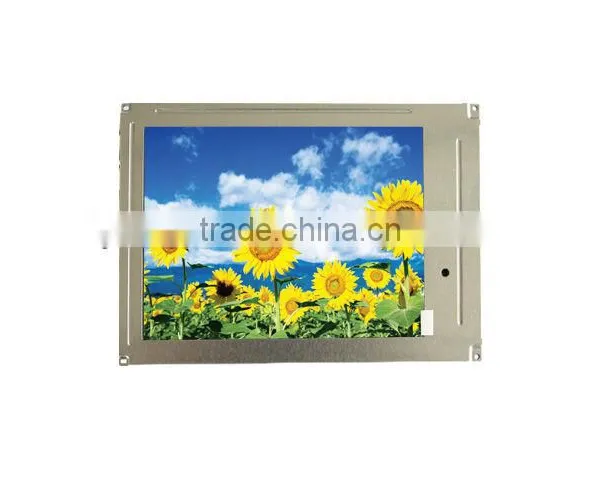

6.4' 640x480 TFT-LCD With Resisitive Touch Panel
- 10000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | E Ink | Model Number: | PD064VT4 |
Type: | TFT |
Product Description
Specifications
1.Panel Size: 6.4 inches2.Resolution: 640x480
3.Panel Type: a-Si TFT-LCD
4.Touch Screen: NO
Feature | 1.Brand: E Ink |
6.4' 640x480 TFT-LCD
6.4' 640x480 TFT-LCD PD064VT4 Structural Parameters
• Working Temperature: -20°C ~ 70°C
• Storage Temperature: -30°C ~ 80°C
• Panel Weight: 340g
• Surface Treatment: matt surface
• Resolution: 640(RGB)x480(VGA)
• Aspect Ratio: 4:3
• Pixel Arrangement: R.G.B
• Pixel Pitch: 0.2025x0.2030
• Display Area: 129.6x97.44 mm
• Visual Area: 134.8x101.8 mm
• Size: 175.4x126.9 mm
• Thickness: 12.5±0.5 mm
• Touch Screen: NO
6.4' 640x480 TFT-LCD PD064VT4 Optical Property
• Display Mode: TN, Normally White Display, transmittance
• Brightness: 400 cd/m2
• Contrast Ratio: 400 :1 (transmission)
• Display Color: 262K(6bit)
• Response Time: 15/25(Tr/Td) ms
• Viewing Angle: 55/55/40/55 (up/down/left/right)
• Optimal Viewing Angle: 6 o'clock
• White Field Chroma: X:0.294;Y:0.308
• White Field Change: 1.25/1.33(Typ./Max.)(9points)
• Inversion Scanning: flip(horizontal/vertical)
• Power Consumption: 4.82W
• Kind of Singnal Interface: 31 pins 1.0mm spacing HRS DF9A-31P-1V
• Signal Type: TTL(1ch,6bit)
• Signal Interface Voltage: 5.0V
• Signal Interface Current: 100/120mA(Typ./Max.)
• Signal Interface Power: 500mW (Typ.)
• Backlight Tube Position: side into type light source
• Lamp Type: 2pcs CCFL
• Lamp Life: 50,000 (h)
• Lamp Total Power: 4.32W(Typ.)
• Voltage of Lamp: 360V(Typ.)
• Current of Lamp: 6.0mA(Typ./Max.)
• Working Frequency of Lamp: 40KHz
