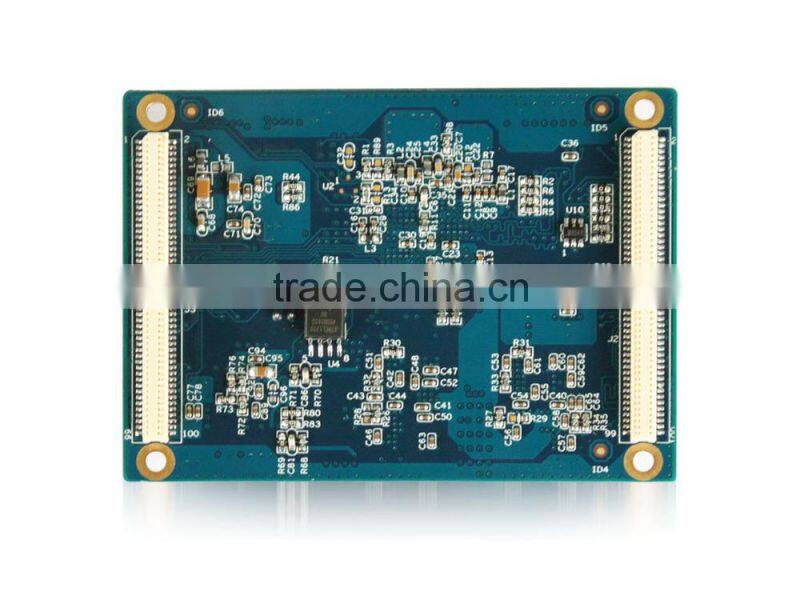

Linux Core Board/core Module/system Module/Cortex-A5 Module photo-1

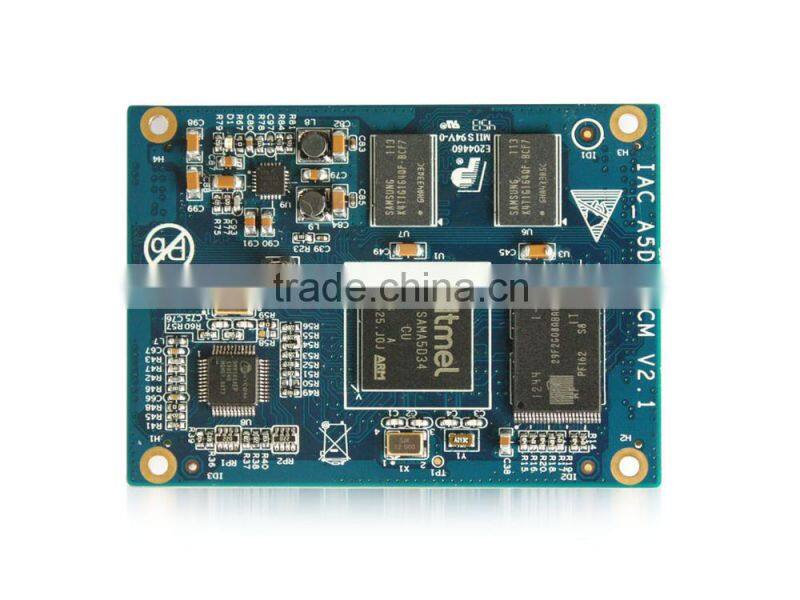

Linux Core Board/core Module/system Module/Cortex-A5 Module photo-2
US$ 1 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
D/C:
IAC-A5D3X-CM
Package:
BGA
Model Number:
IAC-A5D3X-CM
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C IAC-A5D3X-CM
Package BGA
Model Number IAC-A5D3X-CM
Brand Name QY
Place of Origin Zhejiang, China

Linux core board/core modual/system modual/Cortex-A5 modual





If the recent board resource do not satisfy you,contact us for customization service(ODM/OEM service).



Linux core board/core module/system module/Cortex-A5 module



Linux core board/core modual/system modual/Cortex-A5 modual

Product Description

 • Adopts Atmel SAMA5D3 series CPU, Cortex-A5 ARM Core, ARM v7-A instruction set, 536MHz;

• With floating point arithmetic unit, 64-bit internal bus architecture and 32-bit DDR controller, 166MHz. It owns high-precision calculation and quick data processing;

• Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;

 • Extend 5-ch serial port,1-ch CAN bus, 2-ch Ethernet port;

 • Power consumption ≤1W, owns low consumption mode function, the best selection for battery-powered application;

• Rich external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfectly;

• Support Linux3.6 and Android 4.0.



Linux core board/core modual/system modual/Cortex-A5 modual

Core Module Specifications:

CPU Processor

• ATMEL SAMA5D3X,Cortex A5 core • 536MHz

DDR RAM Memory

• 256MB DDR2 RAM,333MHz,32bit data bus

FLASH Storage

• On-board 2M DataFlash (45DB161D) • On-board 256M*8bits NandFlash (29F2G08ABAEA)could change a large capacity or industrial chip according to customer's requirement

Interfaces

• 2*100 pin 0.8mm spacing B to B connector

Other Onboard Resources

• DM9162 net chip,support 10M/100M Ethernet with MII mode,more compatible than RMII mode • Power management, support 1.8V,3.3V,5.0V voltage input

PCB Specification & Size

• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance • 74 x 53 x 1.5mm

Working Parameters

• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C) • Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption

• 5V Dc power supply, low power consumption, <2W

Support OS

• Linux 3.6.9 + QT4 • Android 4





Linux core board/core modual/system modual/Cortex-A5 modual

Detailed Image

 Linux core board/core module/system module/Cortex-A5 module        Linux core board/core module/system module/Cortex-A5 module





Linux core board/core modual/system modual/Cortex-A5 modual

Product Roadmap

Linux core board/core module/system module/Cortex-A5 module









Linux core board/core modual/system modual/Cortex-A5 modual



Application Area


Linux core board/core module/system module/Cortex-A5 module



Linux core board/core modual/system modual/Cortex-A5 modual  Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.



 SMT Factory
Linux core board/core module/system module/Cortex-A5 module

 Accessory Warehouse

Linux core board/core module/system module/Cortex-A5 module

R&D Department

Linux core board/core module/system module/Cortex-A5 module



Linux core board/core modual/system modual/Cortex-A5 modual



Technical Service:

1.We provide the high performance SOM-series ARM-based module. Proven technology for underlying software and hardware, open source service, high efficient online after-sale service accelerate our customer’s development cycle.

2.OEM/ODM service will help you to achieve your ideal products. Rich experiences help us to open our customer's market quickly. ODM/OEM products right belongs to our customer.

3.Precision market positioning in industrial control area. Professional technology and attitude always let Qiyang win a great reputation in ARM embedded industry. Cooperate with Qiyang, benefit for both of us.

4.Qiyang ARM boards have already embedded in the various industrials. Touch with the end customers in different ‘’Face’’.
