TI AM335X ARM Core Board ARM Cortex-A8 720MHz CPU 256MB SDRAM 128MB Nand Flash

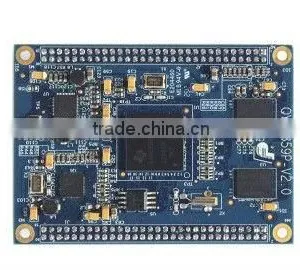

TI AM335X ARM Core Board ARM Cortex-A8 720MHz CPU 256MB SDRAM 128MB Nand Flash thumbnail-1
TI AM335X ARM Core Board ARM Cortex-A8 720MHz CPU 256MB SDRAM 128MB Nand Flash thumbnail-2
TI AM335X ARM Core Board ARM Cortex-A8 720MHz CPU 256MB SDRAM 128MB Nand Flash photo-1
TI AM335X ARM Core Board ARM Cortex-A8 720MHz CPU 256MB SDRAM 128MB Nand Flash photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 4.3''/5.6''/6.4''/7''/8''/10.4''
Processor Manufacture:
TI
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Screen Size Other, 4.3''/5.6''/6.4''/7''/8''/10.4''
Processor Manufacture TI
Processor Type Other, ARM Cortex A8
Processor Main Frequency 720MHZ
Memory Capacity 256MB
Operating System Other, Linux&Android &WinCE
Place of Origin Zhejiang, China
Brand Name QY
Model Number EZ335X-P

Specifications

ARM core board
1.CIRRUS LOGIC EP9315 CPU 200MHz
2.64MB SDRAM 32MB Nor Flash
3.With TFT-LCD, network, CF card, serial port



TI AM335X ARM core board ARM Cortex-A8 720MHz CPU 256MB SDRAM 128MB Nand Flash

TI AM335X ARM Core Board Specifications

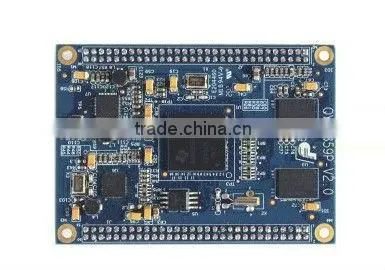

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2*60 Pin 2.0 connectors lead various commonly used interfaces; all AM335x-ARM Cortex-A8 processor is compatible; user can choose different types of processor chip according to need to reduce the cost, and this choice only suitable for batch users..



AM335X Processor:



  ARM CPU ARM MHz(MAX.) ARM MIPS(MAX.) Graphics Acceleration Other Hardware Acceleration
AM3359 1 ARM Cortex-A8 275
600
720		 1200
1440		 1 3D 2 PRU-ICSS
Crypto Accelerator
AM3358 1 ARM Cortex-A8 275
600
500
720		 1000
1200
1440		 1 3D 2 PRU-ICSS
Crypto Accelerator
AM3357 1 ARM Cortex-A8 275
600
720		 550
1200
1440		   2 PRU-ICSS
Crypto Accelerator
AM3356 1 ARM Cortex-A8 275
600
500
720		 550
1000
1200
1440		   2 PRU-ICSS
Crypto Accelerator
AM3354 1 ARM Cortex-A8 275
600
500
720		 1000
1200
1440		 1 3D Crypto Accelerator
AM3352 1 ARM Cortex-A8 275
600
500
720		 1000
1200
1440		   Crypto Accelerator



ARM Core Board Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

TI AM335X Core Board Embedded Order Infomation

Item EZ335X-P Cortex-A8 EK
Standard accessories (1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)5-wire RS232 serial lines (5)packing box
DVD resources Linux Compilers Cross-compiler arm-linux-gcc
Tool software Supporting terminal, writing, download tools
Device manual Main components' datasheet of back plane
User manual About all development and use
Image file Image file of bootstarp, u-boot, kernel and file system
Test source code Test routines and source codes of all interfaces
System source code Including bootstrap, u-boot, kernel, file system and QT source code
Schematic Back plane's schematic in PDF format
Packaging library Component packaging library of evaluation board
Windows EC 7 Tool software Supporting terminal, writing, download tools, sync software
Device manual Main components' datasheet of back plane
User manual About all development and use
Image file Firstboot, Eboot, NK image file
Test source code Test routines and source codes of all interfaces
BSP package Related BSP board-level supporting package
SDK Related SDK
Schematic Back plane's schematic in PDF format
Packaging library Component packaging library of evaluation board
LCD options(another pay) 4.3'LCD module + 4-wire resistive touch screen + USB cable
5.6'LCD module + 4-wire resistive touch screen + USB cable
6.4'LCD + 4-wire resistive touch screen + USB cable + inverter
7'LCD module + 4-wire resistive touch screen + USB cable
8'LCD module + 4-wire resistive touch screen + USB cable
10.4'LCD + 4-wire resistive touch screen + USB cable + inverter
Module options(another pay) TTL to LVDS module
TTL to VGA module
Sales hotline 0571-87858811, 87858822

Cortex-A8 ARM  Core Board Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
