WS2811 LED Pixel String for Billboard, Signages 12mm F8 LEDs

WS2811 LED Pixel String for Billboard, Signages 12mm F8 LEDs thumbnail-1
WS2811 LED Pixel String for Billboard, Signages 12mm F8 LEDs photo-1
US$ 0.2 - 0.45 MOQ: 50 Meters
Key Specifications
Get Latest Price
LED Light Source:
F8
Input Voltage(V):
5
Lamp Power:
15
Contact Supplier Request Quote Chat Now
Shenzhen Ranger LED Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source F8
Input Voltage(V) 5
Lamp Power 15
Color Temperature(CCT) Other, Unknow
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
IP Rating IP68
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name Ranger
Model Number RL-F8D5RGB-2811



Product Description



WS2801 RL-F8D5RGB-2801 DC5V 0.5 D12*37 9 RGB IP68
WS2811 RL-F12D5RGB-2811 DC5V 0.5 D12*37 9 RGB IP68
UCS1903 RL-F12D5RGB-1903 DC5V 0.5 D12*37 9 RGB IP68
SM16726 RL-F12D5RGB-16716 DC5V 0.5 D12*37 9 RGB IP68
DMX512 RL-F12D5RGB-DMX512 DC5V 0.5 D12*37 9 RGB IP68
TLS3001 RL-F12D5RGB-3001 DC5V 0.5 D12*37 9 RGB IP68

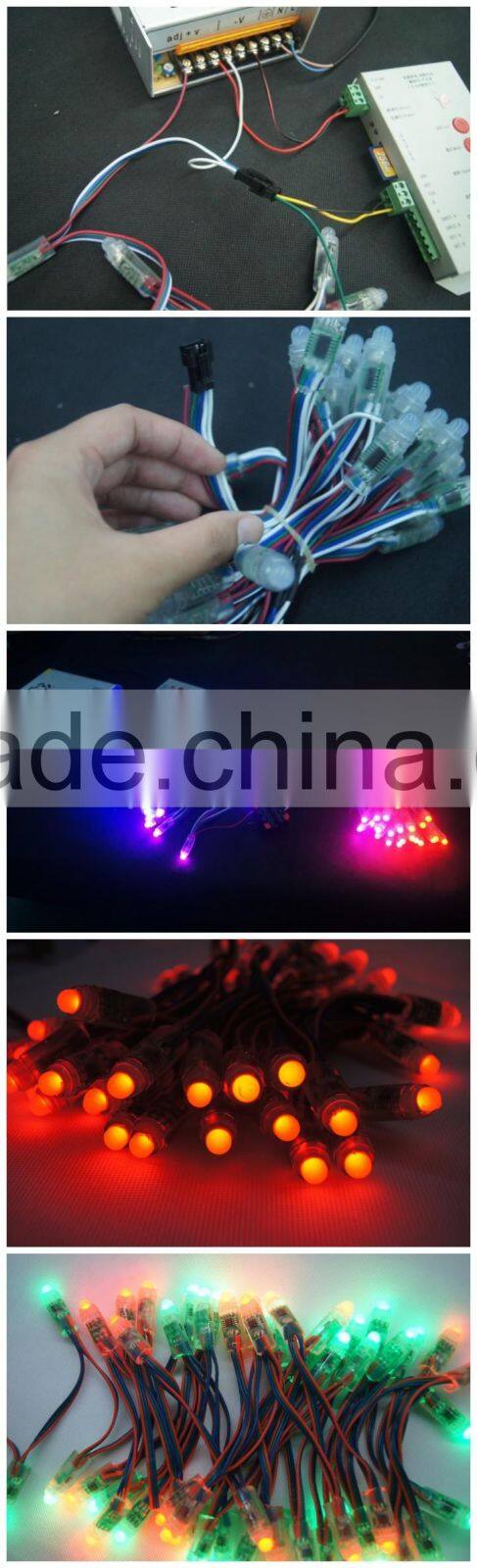

WS2811 LED Pixel String for Billboard, Signages 12mm F8 LEDs



IC TYPE Item No. Volt Power (W) Size (mm) Net weight (g) Color Waterproof





WS2801 RL-F8D5RGB-2801 DC5V 0.5 D12*37 9 RGB IP68
WS2811 RL-F12D5RGB-2811 DC5V 0.5 D12*37 9 RGB IP68
UCS1903 RL-F12D5RGB-1903 DC5V 0.5 D12*37 9 RGB IP68
SM16726 RL-F12D5RGB-16716 DC5V 0.5 D12*37 9 RGB IP68
DMX512 RL-F12D5RGB-DMX512 DC5V 0.5 D12*37 9 RGB IP68
TLS3001 RL-F12D5RGB-3001 DC5V 0.5 D12*37 9 RGB IP68





RGB Pixels are digitally-controllable lights you can set to any color, or animate

 Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

There are four flanges molded in so that you can 'push' them

 into a 12mm drill hole in any material up to 1.5mm/0.06" thick

They are typically used to make outdoor signs. Compared to our other 20mm LED dots

these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

The pixels are connected by a 3-conductor cable. Red is +5V, Yellow is Ground, Green is Data and

 Data is shifted down from one pixel to the next so that you can easily

cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller

The pixels use 8mm diffused RGB LEDs

 with brightness of about 300 mcd per individual r/g/b LED.



SD controller
Programable by Software
Individually Control
Conformal Coating,PVC glue protection
IP66, Water-proof protection
Easy installation (punching 12mm hole on metal panel)
50pcs per set

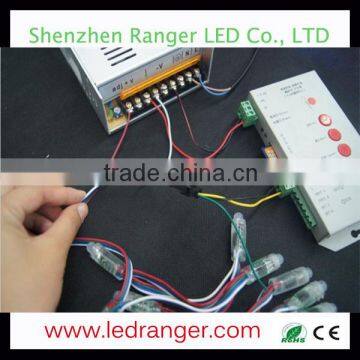

Connection:

1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control



Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video



Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product



Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.

3.Experienced employees that capable for good service

4.Considerate and kind sales-after service.

5.Strict QC procession, ensure each product is high quality.




Our Services



1.Manufacturer with our competitive price

2.Excellent management and technology QC Depa.aftersale team,we can do high technology

   aftersale service.good quality products.

3.Prompt response to your request,

4.Short delivery,

5.Reliable warranty

6.OEM/ODM
