7''TFT-LCD+touch panel HMI (SHMI-701H)
- 100000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card
- IC200CHS006E
- Vector Inverter VFD Frequency Converter 3 Phase Variable Frequency Drive Motor Speed Control AC DC inverter 50hz to 60hz 55KW
- General Used Vector Control Frequency Inverter(3phase 380V) 200kw
- For Building Data Acquisition HVAC Monitoring and Control BACnet/IP IO Module
- Supports VPN and TLS/SSL Data Encryption Flexible EdgeIO Controller
- 800PP846A Operation panel Provides greater visibility into the process
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | QY | Model Number: | SHMI-701H |
Product Description
Specifications
HMI1.TI ARM9 processor,456MHz
2.Built-in PRU
3.With 7''TFT-LCD,Resistive Touch Panel
4.Preassemble Linux OS
ARM Smart Human-Machine Interface(SHMI-701H)
1.TI ARM9 processor,456MHz,low consumption,high performance;
2.Built-in PRU,instead of Upper Computer+Lower Computer mode;
3.With 7''TFT-LCD,Resistive Touch Panel,excellent touch experience to the on-site industrial environment;
4.Preassemble Linux OS ,support QT/MiniGUI graphic interface;
5.Preassemble interfaces driver program ,provide sample program and development tool;
6.Provide customized service, customize the highest cost-effective Smart Human-Machine terminal;
7.Application Range:Inquiry Terminal,Collect Terminal,Center Control Computer,Monitor Terminal Application. HMI
HMI Stamp Module Specifications
Application Case
Interface Configuration |
---|
7''TFT-LCD+Touch Panel |
100Mbps Ethernet Port x 1 |
Serial Ports x 3: debug x 1,RS485 interface x 1, TTL x 1 |
Wireless module interface x1 |
RTC,Hardware Watch dog,I/O so on |

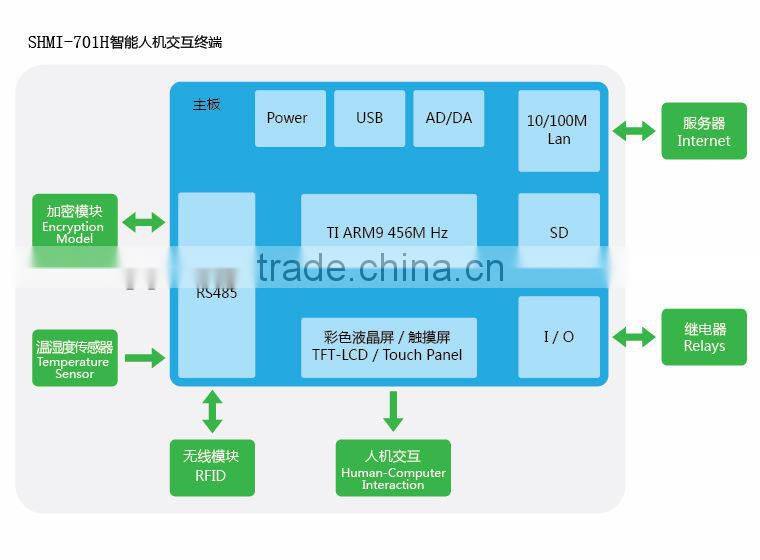

HMI ( SHMI-701H )Product Interface

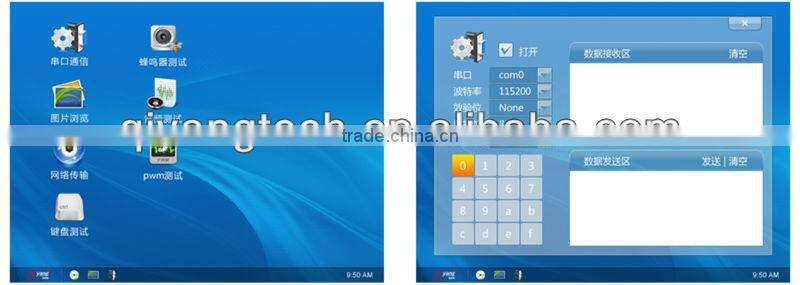

QT Sample Progrm Interface
MiniGUI Sample Program Interface
HMI (SHMI-701H) Product Parameter
Touch Display | |
LCD | 7''TFT-LCD(16:9) |
Resolution | 800 x 480 |
Brightness | 300cd/m2 |
View | 6'O Clock |
Single-Point lifetime | Above 1,000,000 times |
System Core | |
CPU | TI ARM9 processor;456MHz |
RAM | 128M SDRAM |
Memory | 128M Nandflash(could expand to a large capacity or industrial chip ) |
Power Supply;Power Consumption | |
Power Input | DC 9~24V |
Power Consumption | ≤3W (actual measurement) |
Interface (non-standard configuration ,could be customized according to user's requirements) | |
RPU | PRU x 2,could expand to serial ports x 8 |
Serial | RS232 x 3:debug x 1 |
Serial Interface | SPI/I2C |
USB | Ports x 2:USB 2.0 OTG x 1; USB 1.1 HOST x 1 |
Network | 10/100Mbps self-adaptive full duplex port x 1 |
Audio | Linear input and output |
VGA | VGA output x 1 |
SD Card | Large capacity SD Card storage x 1 |
Other | IO,Hardware Watchdog ,back-up lithium battery,Buzzer |
Product Structure | |
Structure | Steel Structure |
Installation | Embedded Installation |
Application Environment | |
Working Temperature | -20°C~+70°C(batch user could customize -40°C~ 85°C) |
Working Humidity | 5%~ 95%, Non-Condensing |
Software | |
OS | Linux 2.6.37 |
GUI | QT4.8.2 |
Development Tool | arm-none-linux-gnueabi-gcc 4.5 |
