ZLHM250 feed pellet machine with high quality
feed pellet machine Introduction
Main structure of feed pellet machine :
1.scale drawing 2.feeder, pelletizing 3.main transmission system and lubricating system etc.
a. livestock feed biomass pellet mill divided into two parts, the modulation part and the part of the host.
b. The modulator consists of feeder, single or double modulator the modulator.
c. The host comprises a power, shaft and granulating chamber (mold, pressing wheel and knife)
Wearing parts of livestock feed biomass pellet mill:
mould (with pore diameter 2-8mm), roller skin, bearings and triangular belt.
feed pellet machine it is widely used in the granulation of corn, wheat, beans etc. The output pellets are used as animal and poultry feed stuff in livestock farm, poultry farm, feed processing industry and aquaculture.
Working principle of feed pellet machine
The material through the high temperature steam tempering curing, into the granulating chamber by mould,
rotating friction press wheel rotation, so that the material extruded into mould hole, business secret into
a cylindrical bar, after a double knife to cut off the bar, the formation of particle,out of granulating chamber.
Application of feed pellet machine
feed pellet machine can be widely used in large, medium and small aquaculture, grain feed factory,
livestock farm, poultry farm, individual farmers, small and medium sized farms, as well as feed manufacturer
plant.
feed pellet machine mainly used for feed and animal husbandry industry, cattle, horses,sheep,chicken,
pig, rabbit, duck, goose, fish, ostriches, camels, big, small, dove in plant breeding and feed factory.
feed pellet machine Parameters
| Product Name | Model | Power | Capacity | Pellet Diameter | Dimension L×W×H | Weight |
| (KW) | (T/H) | (MM) | (MM) | (T) | ||
feed pellet machine |
ZLHM250 | 22+1.5+1.5 | 0.6-1.5 | 1.5-12 | 1760x1360x1300 | 0.83 |
| ZLHM300 | 45+2.2+1.5 | 1.5-2.5 | 1.5-12 | 2100x1550x1060 | 2.45 | |
| ZLHM350 | 55+2.2+1.5 | 2-5 | 1.5-12 | 2220x1160x1450 | 2.98 | |
| ZLHM450-A | 90+3+3+1.5 | 4-8 | 1.5-18 | 2400x1200x1600 | 4.7 | |
| ZLHM450-B | 110+3+3+2.2 | 6-12 | 1.5-18 | 2400x1250x1650 | 4.8 | |
| ZLHM610 | 150+4+4+2.2 | 8-15 | 2-18 | 2300x1350x1800 | 5.8 |
feed pellet machine Technology Data:
Size range for poultry feed pellets 1.5-12 mm
Size range for livestock feed pellets 4-12 mm
Capacity: 0.6-15T/H
Quality guarantee: 1 years for main body
Extensive range of pellet plant ancillary machines and spares for your choice
feed pellet machine advantage
stock feed biomass pellet mill main drive adopts high accurate gear drive,with an output of about 20% higher than
belt drive,and the die adopts the quick removing clamps.
2.The drive part of the machine including motor optimize the high quality bearings ensures high efficient and
steady driving with low noice.
3.Full stainless steel strengthening feed conditioner,adopts the frequency-conversion speed regulating control
to guarantee quality pellet feed.
4.The alloy steel die is made by international advanced gun drill and vacuum furnace,has long service life and
ensure smopthly pelleting and high quality.
5.The international advanced compensation type flexible coupling is of novel and compact structure,safety,low
noise and less trouble.
stock feed biomass pellet mill adopt international advaned pipeline system and inlet pressureregulator.

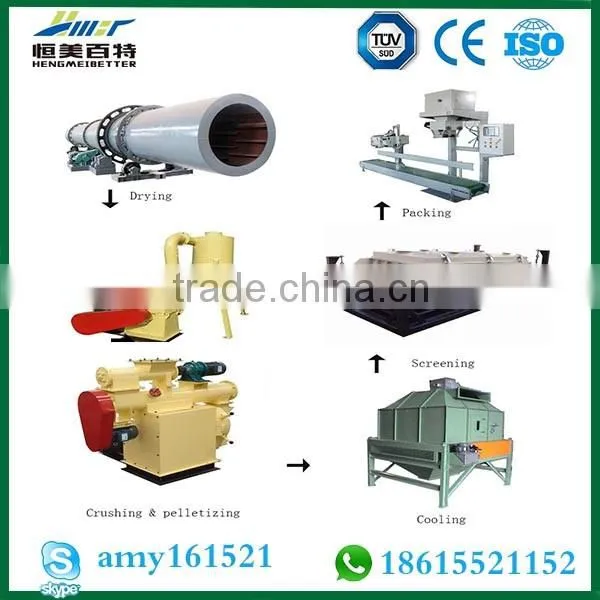

stock feed biomass pellet mill is used together witk counter flow cooler, rotary sifter and advanced fineteeth
crumbler,the pellet feed can reach the highest quality.
stock feed biomass pellet mill use with two or three conditioners can be custom-made to produce high quality
poultry,livestock and aquatic feed.
Packing
Wood case; air cushion packaging; metal packaging
Shipping
Company Information

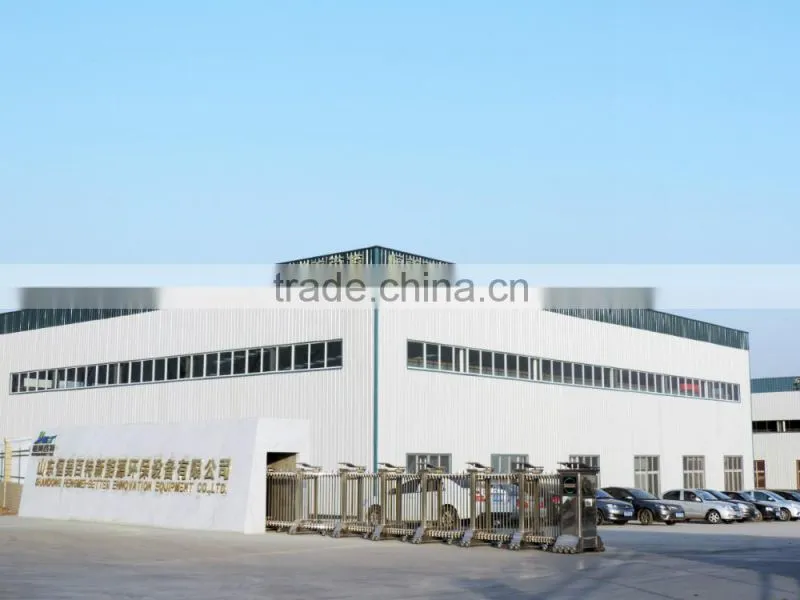

Shandong Hengmei-Better Ennovation Equipment Co., Ltd. is a domestic large-scale new energy
environmental protection equipment manufacturers in China. The registered trademark is "Hengmei Better".
Our company has combined Research and Development, Production, Sales and Service in one, and our main
product have Construction Waste Crushing and Recycling Workstation, New Energy Particle Machinery, Feed
Machinery, Organic Fertilizer Machinery, Broken machinery. Totally, have 56 kinds of products, more than 200
models, which make our company the most professional development and production of high-tech enterprises
of new energy environmental protection machinery manufacturer in China.
Customers
Our woodworking pellet machine have been exported to lots of Europe, South America, Southeast Asia countries, and set agents in Brasil ,Canada, Germany, America, South Africa, Australia, India,Vetnam, Malaysia and so on countries.
FAQ
1. What's the delivery time?
We will deliver the product in 7-15 days after receiving the deposit.
2. What's your payment terms?
We can accept various payment terms if it is convenient for you.
3. what's your MAQ?
Our MAQ is 1 set.
4. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the
others,including the roller skin, die and bearing.
5. What is your warranty?
12 months except the spare parts.
6. Will you send engineers to install the plant?
Of course yes,but at an extra cost will be paid by customers. Or you can get local contractors to do the
commissioning and we send one supervising engineer.
7. Do you have some foreign customers useing your equipments?
Yes , we have customers all over the world.
Certifications
In order to quote the best price, please let us know the info:
1, What is your raw material?
2,What is the raw material size?
3,What is the raw material moisture content?
4,What is the capacity do you need?
5, Do you need automatic system or manual packing?
If you are interested in this machine, please do not hesitate to contact us.
We are sure that we will offer you the best pellet mill and service.
We are anticipated to cooperate with you.
