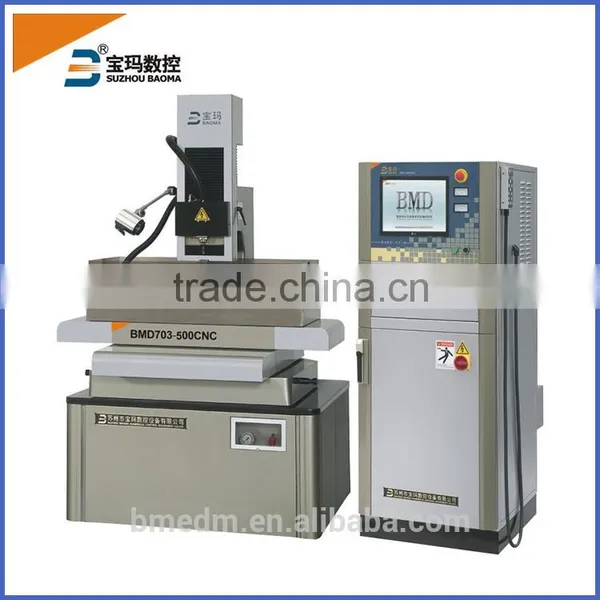

2014 HOT SALES EDM DRILL MACHINE BMD703-500

Name: 2014 HOT SALES EDM DRILL MACHINE BMD703-500
Brand: Baoma
SKU: 106971903
Availability: InStock

US$ 3,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Drilling Speed:

60 mm2/min

Suzhou Baoma Numerical Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Drilling Speed 60 mm2/min

Place of Origin Jiangsu, China

Brand Name Baoma

Model Number BMD703-500

Voltage Customized

Power(W) 3.5 KVA

Dimension(L*W*H) 1379 x 1429 x 1886 mm

Weight 900Kg

Certification CE, ISO9001 ISO14001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

EDM Drill deep hole with diameters 0.2mm ~3mm
Patented product able to drill various meteals
Super Drilling speed 30-60mm/min

2014 HOT SALES EDM DRILL MACHINE BMD703-500 CNC Small Hole Drilling Machine Able to drill holes range from diameter 0.2-3.0mm with max depth-diameter ration 300:1 Drilling speed 30-60 mm/min Able to drill various conductive metals , such as stainless steel , chilly steel , solid carbide , copper, aluminum etc Able to drill directly into bevel or curve surface With electrode auto checking function , improve machining hole precision With lubrication system , and hand control equipment With memory function NC axis with opposite clearance error compensation function With hand zero clearing function for NC axis X,Y,Z axis adopt ball screw ,linear guideway X,Y,Z axis adopt servo motor ,control precision as 0.001mm Hole position and parameters editor function Optional C axis (rotate axis), four axis CNC
Specification	BMD703-500	Universal Parameter

Work table Size	590x 410 mm	Drilling Depth	0 - 300 mm

Work Table Travel	500 x 400 mm	Z axis Travel	300+(320) mm

Load of Table	300 Kg	Max. Drilling Speed	60 mm2/min

Electrode Diameter	0.2-3.0 mm	Max. Working Current	30 A

Water Tank Capacity	30 L	Max. Power comsumption	3.5 KVA

Machine Weight	900Kg	Voltage	Customized

Machine Dimensions	1379 x 1429 x 1886 mm	Working Solution	Water/Saponification

Packing Dimensions	actual measurement	Function of setting depth	Yes

Control Type	ZNC: Z axis NC Control	Z axis Travel Control	Electric Motor

Packing Size: 1450x1340x2050mm/Unit; G.W/N.W:800/700 Kg
