Specifications

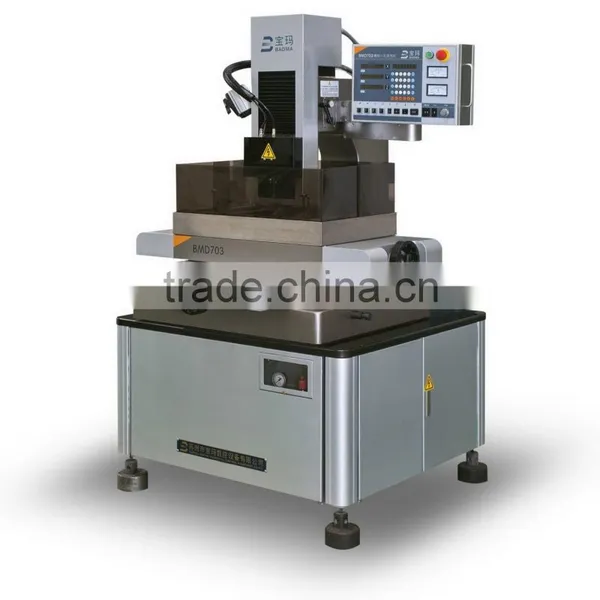

edm drilling machine BMD703-400 Can drill deep hole with diameters 0.2mm ~ 3mm (the depth-diameter ratio is 300: 1)Highly active and accuracy edm drilling machine BMD703-400
Product Description
A. There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure.
B. Servo control system is adopted and improved, which make drilling re-track speed 2 times quicker than dB703
C. There is slider water tank, which saves space and is more environmental.
D. There is oil-tank for lubrication, which is more convenient to operate and fluid to lubricate.
E. Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc.
F. Able to drill holes range from diameter 0.2- 3mm with max depth-diameter ration 300: 1.
G. It is more stable while drilling hole of 0.2mm
H. Drilling speed 30-60mm/min
I. Able to drill directly into bevel or curve surface.
J. Three axis digital display
K. Drilling depth positioning function for Z axis
L. Control system can drill group hole and positioning automatically.
Item |
BMD703 |
Worktable size(L×W)mm |
470×360 |
Table travel(X×Y)mm |
400×320 |
Z axis travel mm |
300+(270) |
Max. drilling depth mm |
0-300 |
Max. drilling speed mm2/min |
60 |
Max re-track speed of spindle mm/min |
320 |
Max. working current A |
30 |
Electrode diameter |
0.2-3.0 |
Load of table kg |
300 |
Working solution |
Water/Saponification |
Working reservoir capacity L |
30 |
Power supply |
380V AC/50 Hz or 415V AC/50 Hz |
Max. Power consumption KVA |
3.5 |
Machine dimension mm |
1120×1005mm×1915 |
Package dimension mm |
1400×1450×2050 |
Machine weight kg |
700 |
Controller type |
Automatic Z axis |
Digital Display |
X,Y,Z axis |
Function of setting depth |
yes |
Function of group drilling |
yes |
FEATURES:
Control System | |
|
|
Pump and Tool Box | |
|
|
PACKING: | |
|
|
c)CERTIFICATE
ISO14001:2004
GB/T 24001-2004
ISO9001:2008
GB/T 19001-2008
CE CERTIFICATE:
SGS TEST
OUR WORLD EXPOSITION
EGYPT:
BRAZIL:
BEI JING:
INDIA:
