vertical ring die animal feed machine spare part
- 80 Set / Sets per Month
- qingdao port
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HMBT |
Model Number: | ZLHM350 | Type: | Feed Pellet Machine | Voltage: | 380V |
Power(W): | 55KW | Dimension(L*W*H): | 1320*330*850 | Weight: | 2980 kg |
Certification: | CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

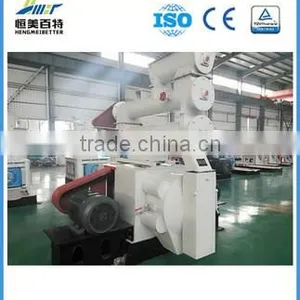

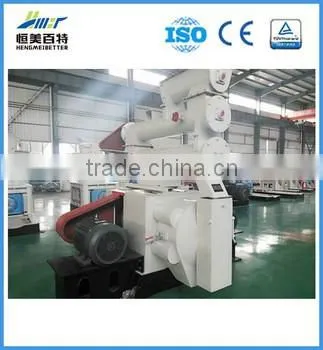

vertical ring die animal feed machine spare part
ZLHM series animal feed machine are the new-designed products by our company and the main parts of the fodder machinery system. They are widely used in feed factories, breed aquatics factories, organic fertilizer factories, chemical factories, and China traditional medicine factories etc. Powder material could be added . Its capacity is superior than others at home and abroad.
Main structure of animal feed machine
1.scale drawing 2.feeder, pelletizing 3.main transmission system and lubricating system etc.
a. livestock animal feed machine divided into two parts, the modulation part and the part of the host.
b. The modulator consists of feeder, single or double modulator the modulator.
c. The host comprises a power, shaft and granulating chamber (mold, pressing wheel and knife)
Wearing parts of livestock animal feed machine
mould (with pore diameter 2-8mm), roller skin, bearings and triangular belt.
animal feed machine
It is widely used in the granulation of corn, wheat, beans etc. The output pellets are used as animal and poultry feed stuff in livestock farm, poultry farm, feed processing industry and aquaculture.
Work principles of animal feed machine
The material through the high temperature steam tempering curing, into the granulating chamber by mould,rotating friction press wheel rotation, so that the material extruded into mould hole, business secret into a cylindrical bar, after a double knife to cut off the bar, the formation of particle ,out of granylating chamber.
parameter of animal feed machine
Product Name | Model | Power | Capacity | Pellet Diameter | Dimension L×W×H | Weight |
(KW) | (T/H) | (MM) | (MM) | (T) | ||
animal feed machine | ZLHM250 | 22+1.5+1.5 | 0.6-1.5 | 1.5-12 | 1760x1360x1300 | 0.83 |
ZLHM300 | 45+2.2+1.5 | 1.5-2.5 | 1.5-12 | 2100x1550x1060 | 2.45 | |
ZLHM350 | 55+2.2+1.5 | 2-5 | 1.5-12 | 2220x1160x1450 | 2.98 | |
ZLHM450-A | 90+3+3+1.5 | 4-8 | 1.5-18 | 2400x1200x1600 | 4.7 | |
ZLHM450-B | 110+3+3+2.2 | 6-12 | 1.5-18 | 2400x1250x1650 | 4.8 | |
ZLHM610 | 150+4+4+2.2 | 8-15 | 2-18 | 2300x1350x1800 | 5.8 |
The structure of animal feed machine
a. animal feed machine
Divided into two parts, the modulation part and the part of the host.
b. The modulator consists of feeder, single or double modulator the modulator.
c. The host comprises a power, shaft and granulating chamber (mold, pressing wheel and knife).
Our main product are:
1.Construction Waste Crushing and Recycling Workstation,
2.New Energy Particle Machinery,
3.Feed Machinery,
4.Organic Fertilizer Machinery.
Packaging ,Shipping,Trade Terms:
Shipping
1. Send commissioning video to you before shipment;
2. By Sea for batch goods, for Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5-25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1 set.
3. Warranty : 1 years.
4. Package Informations: Air cushion inside,wooden case/iron sheet outside.
Our Certifications
Our Service
1. year guaranteed time with life-time service.
2. Free training, Guidance Installation and Debugging.If needed, engineers can be sent to your factory for installation and commissioning, training.
3. English manual and video for installation & operation.
4. Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours.
Our Customers
Our products are exported to more than 70 countries, such as Korean, Japan, Singapore, Australia, USA, Canada, UK, Mexico, Brazil, Spain, Russia, India, Vietnam, Indonesia, Germany, France, UAE, Turkey etc.
