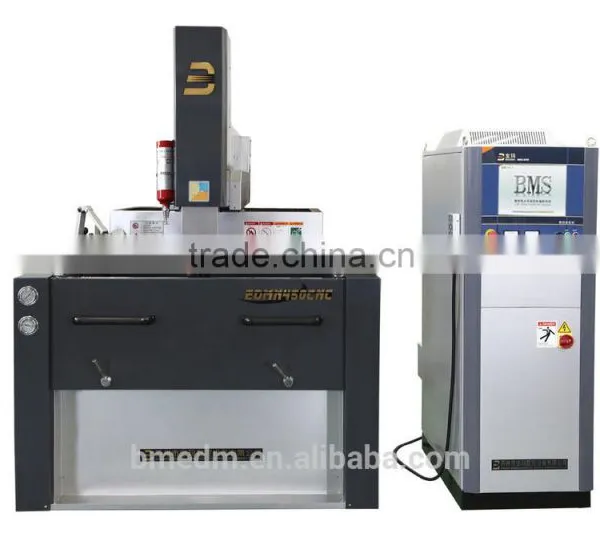

Help CenterBAOMA EDMN450CNC Electric Spark EDM Machine
Related Products
-
New EDM Sinker Machine EDM350ZNC /High Quality/High Precision/Best PriceUS$ 0.00001 - 20,000MOQ: 1 Set -
Lower Price but High Quality EDM Die Sinking MachineUS$ 1.4444 - 666,666MOQ: 1 Set
-
EDM350ZNC/Professional Supplier Cnc Edm Die Sinking Machine/electric Discharge Machine/spark Erosion Machine/cnc Erosion MachineUS$ 0.00001 - 20,000MOQ: 1 Set
-
EDM450ZNC/Professional Supplier Cnc Edm Die Sinking Machine/electric Discharge Machine/spark Erosion Machine/sinker Moulds Quality ChoiceUS$ 0.00001 - 20,000MOQ: 1 Set
-
EDM650ZNC/Professional Supplier Cnc Edm Die Sinking Machine/electric Discharge Machine/spark Erosion Machine/erosion CncUS$ 0.00001 - 20,000MOQ: 1 Set
Specifications
Japan SANYO DC ServoFinish: Ra<=0.2um
Current: 60/100A
Max. Speed: 800mm3/Min
Professional supplier Electric Spark EDM Machine
Adopt Japan SANYO DC servo motor.
- Steady safety device, optical sensors, auto answer, fire extinguisher and power cut off.
- Good machine structure , high rigidity ,high precision , adopt V slide design.
- Adopt HT300 aging treatment casting ,keep precision long time.
- Adopt high quality imported oil pump.
- Three-axis linear scale.
- For copper, graphite, steel, on the cavity, and special shape holes machining
- Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean.
- Equipped with Taiwan IPC configuration, the parameters can automatic set up. LCD display.
- The new design meets European CE safety standards. Can be dustproof, waterproof, anti-interference and improve the life of electronic board.
a)Product Description
EDM Die Sinking Machine
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole
Parameters |
UNIT |
EDMN650ZNC |
|
Working Tank (LxWxH) |
mm |
1800*900*600 |
|
Table Size (LxW) |
mm |
1100*650 |
|
Travel Size |
X |
mm |
650 |
Y |
mm |
550 |
|
Spindle Travel(Z) |
mm |
300 |
|
Auxiliary Travel(Z) |
mm |
300 |
|
Distance between Spindle |
Min. |
mm |
205 |
Max. |
mm |
805 |
|
Max. Table Load (Workpiece weight) |
mm |
2800 |
|
Max. Spindle Hold (Electrode weight) |
kg |
250 |
|
Oil Tank |
L |
1300 |
|
Control Method |
|
DC (Japan SANYO) |
|
Rated Current |
A |
100 |
|
Machine Dimension (LxWxH) |
mm |
actual measurements |
|
Machine Weight |
kg |
3500 |
|
