Specifications
Best Finishing: Ra 0.2umMax. Machining Speed: 400 mm3/min
Carbon deposits Sensitivity Adjustment:Automatic
Product Description

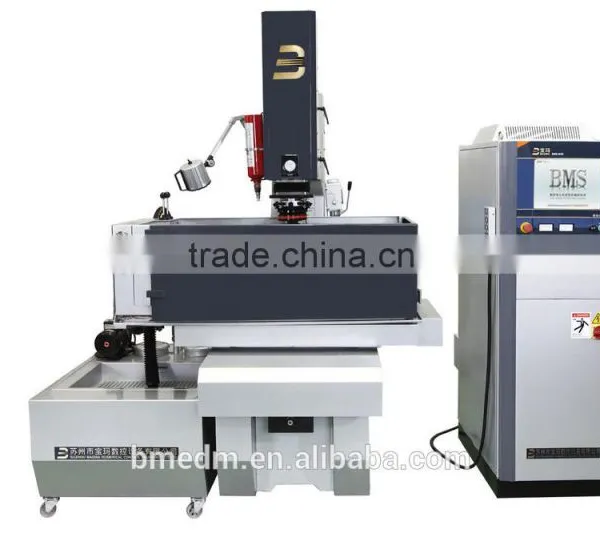

ZNC Sinker EDM [ EDM450CNC ] spark erosion EDM machine
(1) Main performance indexes and technical requirements
A. Machine is designed according to analyses of resistance to draw, resistance
To press and reaction by computer.
B. Casting is used FC-35 by national weathering and all kinds of treatment, it wears well and its precision is changeless.
C. Machine structure is reasonable without distortion, of good rigidity to insure process precision.
D. Rails are "V "shape, can move lightly under heavy load and good precision Zaxis is used Japanese "SANYO" DC servo motor.
E. High precision bears, the working table are used rails with "TAFULO" face.
F. Danish "GRUNDFOS" oil pump or Italy "GALPEDA" oil pump.
G. Three axes SINO grating ruler.
H. Can arbitrarily choose the methods of removing scrap iron, sweeping oil or sucking oil, also choose process that the workingpiece is not submerged in oil.
I. It suits to process cavity, hole and special shape parts in copper, plumbago, steel.
J. Lubricating system is used callback way, lubrication of rail is completed once, and retains cleanness of appearance.
K. PCB boards is moistureproof, anticorrosive, gold-filled.
(2) CNC system technical performance
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole process).
I. Capacity of voltage regulation is ± 20%.
J. Circuits of copper electrode and plumbago electrode are separate and individual process parameters.
K. Discharge parameters can be edited automatically, and there are rough, medium, fine, superfine process terms to be chosen.
L. Z axis is of super-precision process, process position can be affirmed repeatedly.
M. There are some safe devices in circuit.
A. Self-diagnostic system and LED state display, convenient to examine and repair
B. Oil level control, process device will be stopped automatically
C. Accelerograph control, if the display is OFF, process device will be stopped automatically
D. If temperature of working fluid is too high according to induction, the process will be cut off automatically
E. Temperature induction, fire extinguisher sprays automatically and cut off the power supply at the same time
F. Light induction, fire extinguisher spray automatically and cut off the power supply at the same time
G. Mist automatic fir extinguisher, security is the best without pollution, not destroy machine and mould
Specifications / Parameters
| Parameters | UNIT | EDM450CNC | |
|---|---|---|---|
| Working Tank (LxWxH) | mm | 1200 x 650 x 450 | |
| Table Size (LxW) | mm | 700 x 400 | |
| Travel Size | X | mm | 450 |
| Y | mm | 350 | |
| Spindle Travel(Z) | mm | 200 | |
| Auxiliary Travel(Z) | mm | 200 | |
| Distance between Spindle Nose to Work Table |
Min. | mm | 58 |
| Max. | mm | 450 | |
| Max. Table Load (Workpiece weight) | mm | 1000 | |
| Max. Spindle Hold (Electrode weight) | kg | 150 | |
| Oil Tank | L | 470 | |
| Oil Tank Dimension (LxWxH) | mm | 1260 x 780 x 450 | |
| Control Method | DC | ||
| Rated Current | A | 60 | |
| Machine Dimension (LxWxH) | mm | 1800 x 1500 x 2200 | |
| Machine Weight | kg | 1800 | |
Current Parameters
| Max. Working Current |
Best Speed / Efficiency |
Best Electrode Loss |
Best Surface Finishing |
Input Power |
| 60A | 450 mm³/ min. | ≤0.3% | 0.2/AC | 0.3/DC | 7 KVA |
Accuarcy | Precision (Standard:GB/T 5291.1—2001)
| Items | Resualt | |
|---|---|---|
| Flatness of the workbench | 0.03mm / 1000 | |
| X Axis Movement Straightness | in Y-X plane | 0.015/ 500 |
| in Z-X plane | 0.015 / 500 | |
| Y Axis Movement Straightness | in X-Y plane | 0.015 / 500 |
| in Z-Y plane | 0.015 / 500 | |
| Z- Axis Movement Straightness (Spindle Perpendicularity ) |
move on X axis | 0.02 / 200 |
| move on Y axis | 0.02 / 200 | |
| Parallelism of work table | move on X axis | 0.015 / 300 |
| move on Y axis | 0.015 / 300 | |
| X-Y Axis Squareness | 0.015 / 500 | |
Configuration | Setup
| Resine Sand Casting | Machine Body : HT250 |
|---|---|
| Work Table: HT300 | |
| X/Y Axis: | JANPAN SANYO DC/AC Servo |
| TAIWAN PMI Linear Guideway | |
| TAIWAN PMI Ball Screw | |
| Z Axis: | JANPAN SANYO DC/AC Servo |
| TAIWAN PMI or HIWIN Linear guideway & Ball screw | |
| JAPAN NSK Bearing | |
| Universal | Denmark GRUNDFOS or Taiwan WALRUS Oil Pump |
| Taiwan Automatic Fire Extinguisher | |
| Taiwan Halogen work lamp | |
| Taiwan Skeet chuck | |
