pig feed mill Introduction
Main structure of animal feed pellet making machine :
1.scale drawing 2.feeder, pelletizing 3.main transmission system and lubricating system etc.
a. livestock feed biomass pellet mill divided into two parts, the modulation part and the part of the host.
b. The modulator consists of feeder, single or double modulator the modulator.
c. The host comprises a power, shaft and granulating chamber (mold, pressing wheel and knife)
Wearing parts of livestock feed biomass pellet mill:

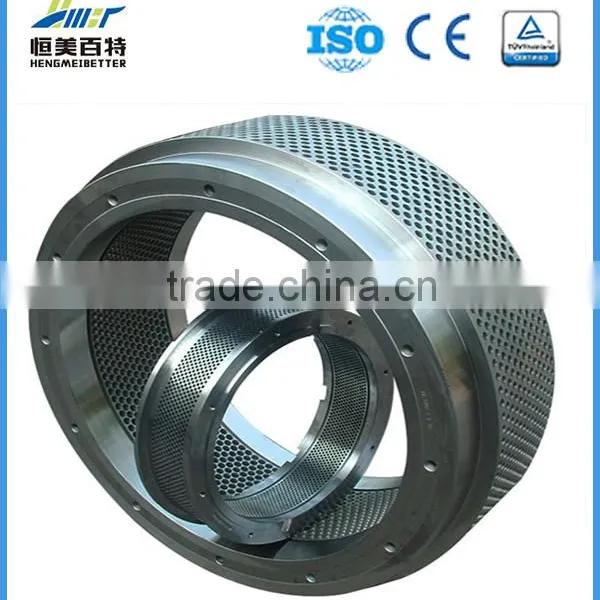

mould (with pore diameter 2-8mm), roller skin, bearings and triangular belt.
pig feed mill it is widely used in the granulation of corn, wheat, beans etc. The output pellets are used as animal and poultry feed stuff in livestock farm, poultry farm, feed processing industry and aquaculture.
Working principle of pig feed mill
The material through the high temperature steam tempering curing, into the granulating chamber by mould,
rotating friction press wheel rotation, so that the material extruded into mould hole, business secret into
a cylindrical bar, after a double knife to cut off the bar, the formation of particle,out of granulating chamber.
Application of pig feed mill
animal feed pellet making machine can be widely used in large, medium and small aquaculture, grain feed factory,
livestock farm, poultry farm, individual farmers, small and medium sized farms, as well as feed manufacturer
plant.
animal feed pellet making machine mainly used for feed and animal husbandry industry, cattle, horses,sheep,chicken,
pig, rabbit, duck, goose, fish, ostriches, camels, big, small, dove in plant breeding and feed factory.
livestock pig feed mill Parameters
| Product Name | Model | Power | Capacity | Pellet Diameter | Dimension L×W×H | Weight |
| (KW) | (T/H) | (MM) | (MM) | (T) | ||
pig feed mill |
ZLHM250 | 22+1.5+1.5 | 0.6-1.5 | 1.5-12 | 1760x1360x1300 | 0.83 |
| ZLHM300 | 45+2.2+1.5 | 1.5-2.5 | 1.5-12 | 2100x1550x1060 | 2.45 | |
| ZLHM350 | 55+2.2+1.5 | 2-5 | 1.5-12 | 2220x1160x1450 | 2.98 | |
| ZLHM450-A | 90+3+3+1.5 | 4-8 | 1.5-18 | 2400x1200x1600 | 4.7 | |
| ZLHM450-B | 110+3+3+2.2 | 6-12 | 1.5-18 | 2400x1250x1650 | 4.8 | |
| ZLHM610 | 150+4+4+2.2 | 8-15 | 2-18 | 2300x1350x1800 | 5.8 |
pig feed mill Technology Data:
Size range for poultry feed pellets 1.5-12 mm
Size range for livestock feed pellets 4-12 mm
Capacity: 0.6-15T/H
Quality guarantee: 1 years for main body
Extensive range of pellet plant ancillary machines and spares for your choice
pig feed mill advantage
stock feed biomass pellet mill main drive adopts high accurate gear drive,with an output of about 20% higher than
belt drive,and the die adopts the quick removing clamps.
2.The drive part of the machine including motor optimize the high quality bearings ensures high efficient and
steady driving with low noice.
3.Full stainless steel strengthening feed conditioner,adopts the frequency-conversion speed regulating control
to guarantee quality pellet feed.
4.The alloy steel die is made by international advanced gun drill and vacuum furnace,has long service life and
ensure smopthly pelleting and high quality.
5.The international advanced compensation type flexible coupling is of novel and compact structure,safety,low
noise and less trouble.
stock feed biomass pellet mill adopt international advaned pipeline system and inlet pressureregulator.
stock feed biomass pellet mill is used together witk counter flow cooler, rotary sifter and advanced fineteeth
crumbler,the pellet feed can reach the highest quality.
stock feed biomass pellet mill use with two or three conditioners can be custom-made to produce high quality
poultry,livestock and aquatic feed.
