Home > Manufacturing & Processing Machinery > Machine Tools > Special Machine Tools > EDM650 EDM Sinker Machines

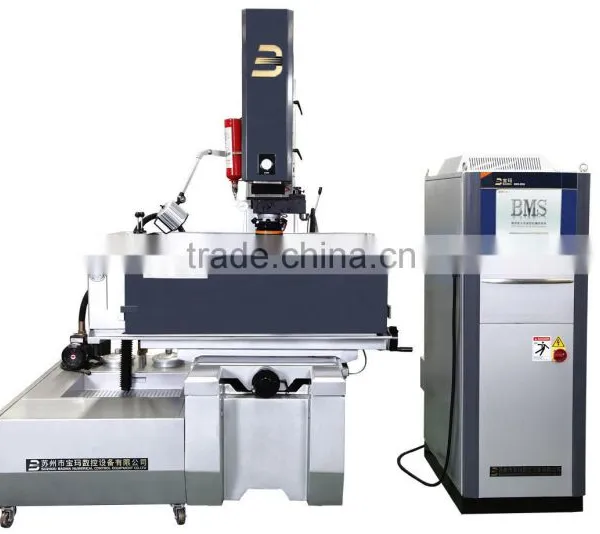

EDM650 EDM Sinker Machines

Name: EDM650 EDM Sinker Machines
Brand: BAOMA
SKU: 106969979
Availability: InStock

US$ 1,000 - 80,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Jiangsu, China

Contact Supplier Request Quote Chat Now

Suzhou Baoma Numerical Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Jiangsu, China

Brand Name BAOMA

Model Number EDM650

Voltage 3N-380V/50HZ

Power(W) 18KVA

Dimension(L*W*H) 2800*2100*2800MM

Weight 3500KGS

Certification ISO9001 ISO 14001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

edm die sinking machine EDM650
a)X/Y axis travel 650/550mm
b)Table Size (L*W):1100*650mm
c) Working tank: 1780*950*600mm

Professional supplier cnc edm die sinking machine EDM650

a)Product Description

EDM Die Sinking Machine [ EDM650 ]
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole

Parameters		UNIT	EDM650ZNC
Working Tank (LxWxH)		mm	1780950600

Table Size (LxW)		mm	1100*650
Travel Size	X	mm	650
	Y	mm	550
	Spindle Travel(Z)	mm	300
	Auxiliary Travel(Z)	mm	300
Distance between Spindle Nose to Work Table	Min.	mm	205
Distance between Spindle Nose to Work Table	Max.	mm	790
Max. Table Load (Workpiece weight)		mm	2800
Max. Spindle Hold (Electrode weight)		kg	250
Oil Tank		L	1300
Oil Tank Dimension (LxWxH)		mm	1780950600
Control Method			DC (Japan SANYO)
Rated Current		A	60
Machine Dimension (LxWxH)		mm	2800 x 2100 x 2800
Machine Weight		kg	3500
