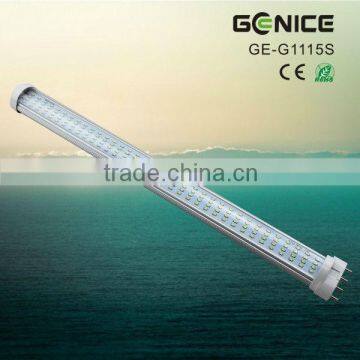

15w led aluminum pcb 2g11 factory

Name: 15w led aluminum pcb 2g11 factory
Brand: GENICE
Price: USD $11 - 14 / Piece

FOB Price

USD $11 - $14 / Piece

100 Pieces(Min.Order)

Product Details

LED Light Source:	128pcs SMD3014	Warranty(Years):	3	Input Voltage(V):	AC100-240V
Lamp Power(W):	15	Lamp Luminous Flux(lm):	1500	Lamp Luminous Efficiency(lm/w):	100
Color Temperature(CCT):	Other, 2700-6500	Working Temperature(℃):	-20, 50	Working Lifetime(Hour):	50000
Lamp Body Material:	Other, Aluminum+PC	IP Rating:	Other, IP40	Certification:	BV, CE, EMC, LVD
Place of Origin:	Guangdong, China	Brand Name:	GENICE	Model Number:	Other, GE-G1115S

15w led aluminum pcb 2g11 factory
1) Watt:15w
2)LED chip: 128pcs SMD3014
3)Length: 417mm

15w led aluminum pcb 2g11 factory

1. Specifications

	Model	GE-G1115S-FR	GE-G1115S-CL
A. Electrical Parameters
1	Input Voltage	AC85-265V	AC85-265V
2	Power Consumption	15W	15W
3	Frequency Range	50/60Hz	50/60Hz
4	Pow Factor	> 0.95	> 0.95
5	Power Efficiency	> 85%	> 85%
B. Optical Parameters
7	Luminous Flux	1400Lumens	1600Lumens
8	LED Luminous Efficiency	90-100Lm/W	100-110Lm/W
9	Lamp's Efficiency	>90%	> 90%
10	Color Temperature	(2700-3300K)/(4000-4500k)/(5500-6500K)	(2700-3300K)/(4000-4500k)/(5500-6500K)
11	CRI(Ra)	> 80	>80
12	Viewing Angle	120°	120°
C. Other Parameters
13	Lamp Holder/Base	2G11	2G11
14	Dimension	L417mm	L417mm
15	Housing material	PC + Aluminum	PC + Aluminum
16	N.W.	240g	240g
17	Chip Brand/Light Source	Epistar	Epistar
18	LED Quantity	128pcs SMD 3014 LEDs	128pcs SMD 3014 LEDs
19	Life time	>35,000hours	>35,000hours
20	Warranty	3Years	3Years
21	Certificates	CE/ROHS approved, UL pending	CE/ROHS approved, UL pending
D. Energy Saving and Low carbon
22	Replacement	36Wraditional T8 Fluorescent tube	36Wraditional T8 Fluorescent tube
E. Working Environment
23	Working Temperature	-20°C~50°C	-20°C~50°C
24	Working Humidity	10~90%	10~90%

2.GENICE LED 2G11 LAMP

Model	Dimension	LED Quantity	Power	Luminous Flux		N.W.
Model	Dimension	LED Quantity	Power	FR	CL	N.W.
G1109S	225mm	80 SMD 3014 LEDs	9W	900lm	1000lm	140g
G1112S	320mm	112 SMD 3014 LEDs	12W	1200lm	1400lm	190g
G1115S	410mm	128 SMD 3014 LEDs	15W	1500lm	1600lm	240g
G1118S	535mm	160 SMD 3014 LEDs	18W	1800lm	2000lm	330g
G1126S	535mm	240 SMD 3014 LEDs	26W	2400lm	2600lm	330g

3.Product

4.Illuminance graph

Lux distance Curve

Light Distribution Curve

5.Photos
