osram cfl led pl replacement lamp

Specifications

osram cfl led pl replacement lamp
1)Connector:4pin
2)LED chip: 160pcs SMD3014
3)1650-1800lm
4)Length:542mm

osram cfl led pl replacement lamp



1. Description



description              LED 2G11 tube
1	Model:	GE-G1118S
2	Certification:	CE and RoHS compliant
3	Base	2G11
4	Input voltage:	AC 85-265v
5	Input frequency:	50-60HZ
6	Consumed power:	18W
7	Power factor:	>95%
8	Light source:	160PCS 3014SMD LEDs
9	Luminous flux:	>1800lm
10	Light efficacy:	>100lm/W
11	Color tempreture:	3000,6000K, optional
12	Color rendering index:	>75Ra
13	LED angle:	120°
14	Shape:	tube
15	Material:	Aluminium and Clear/frosted PC
16	Cover color:	White
17	Dimension:	A:515 B:535 C:542
18	Net weight:	0.35kg
19	Dimmable:	NONE
20	Working tempreture:	-20 to +50°C
21	Lifespan:	>50000hours
22	Warranty:	3 years
23	radiation	no flicker  no delay no UV







2. Features:



1. Easy Installation, just need remove the stater & ballest
2. Use the owner design led insure the high luminace & lower light decay
3. High Power factroy >90% to sure the best energy saving
4. OEM Brand is available
5. Use the PC tube & cover to insure the safety
6. No mosquito's trouble, Because, LED florescent lamp no UV.
7. Long life time, 50,000 hours
8. Super brightness and low lumen attenuation
9. No IR radiation
10. No mercury
11. Free maintenance
12. High intensity, low heat, no flickering
13. CE, RoHS certificated



Applications:



• Instead of the indoors ceiling light
• School / Universities / Hosptial
• Conference / Meeting room , Show Room
• Commercial Complexes
• Factories / Offices
• Super-markets
• Residential / Institution buildings



Trade Terms:



1. Payment: T/T, Western Union available
2. Lead time: 8-10 working days for 100~500pcs, 15 working days for 500~1000pcs
3. Samples can be available within 6-8 working days
4. Shipping freight is quoted under your requests
5. Shipping port: Shenzhen, China mainland
6. Discouts are offered based on order quantities
7. MOQ: 10pcs



Our services:



1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Distributor ship is offered for your unique desigh and some our current models.
5. Protection of your sales area, ideas of design and all your private informaton.



3. Photo

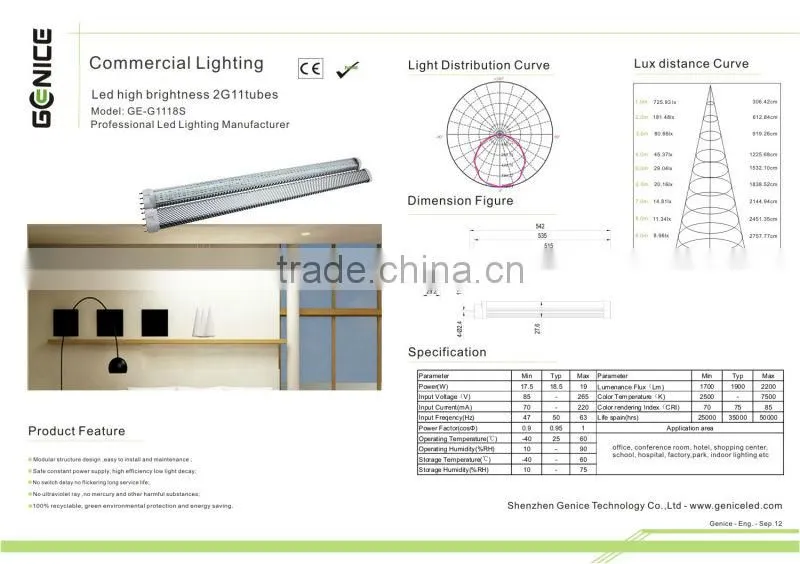

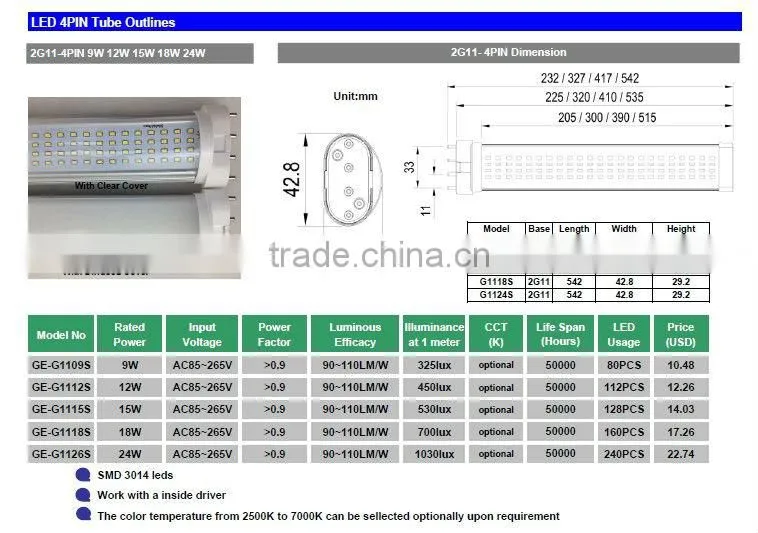

4. Simple specification

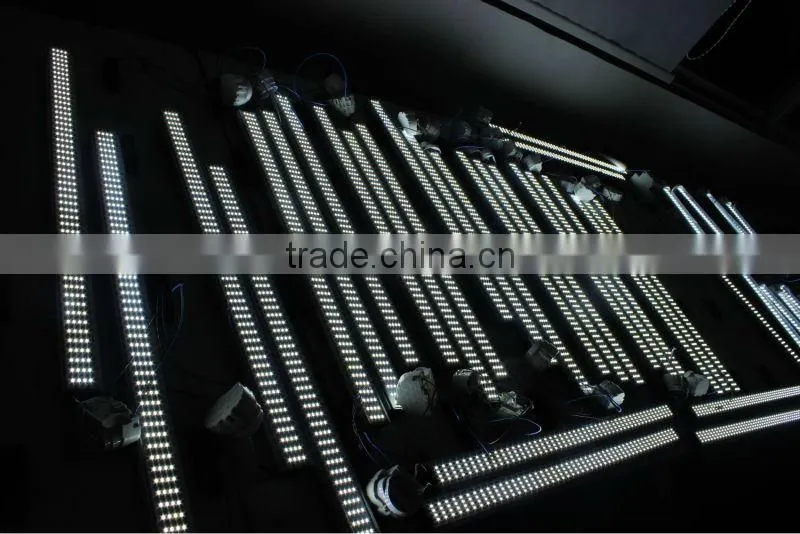

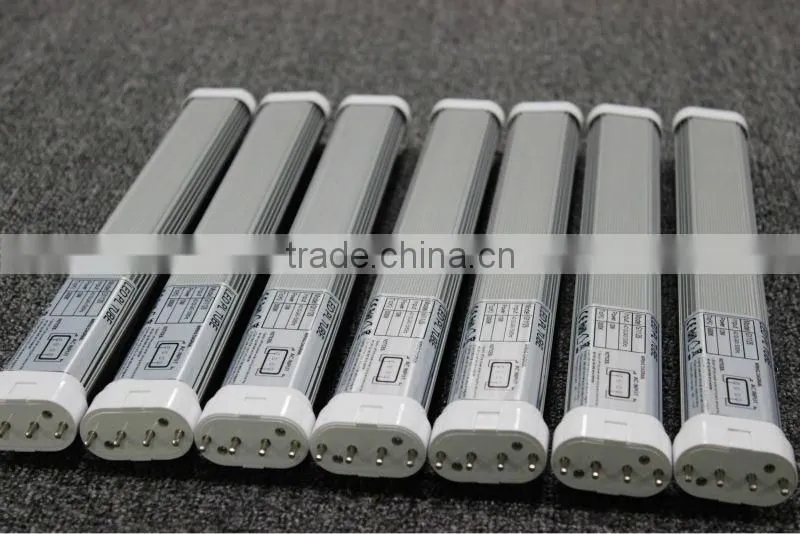

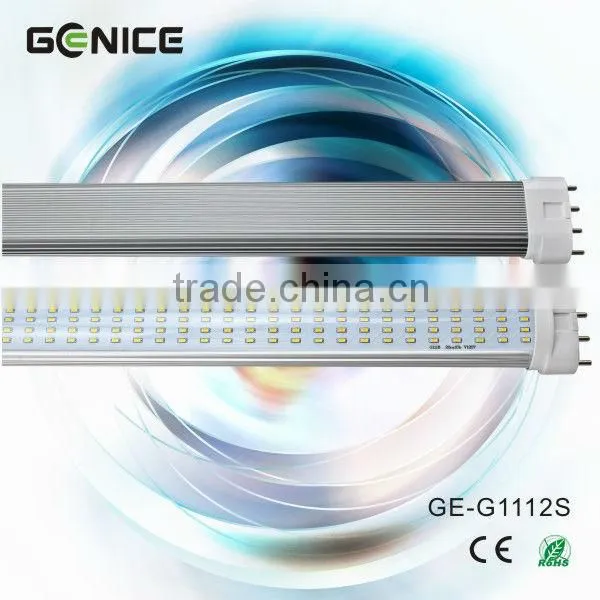

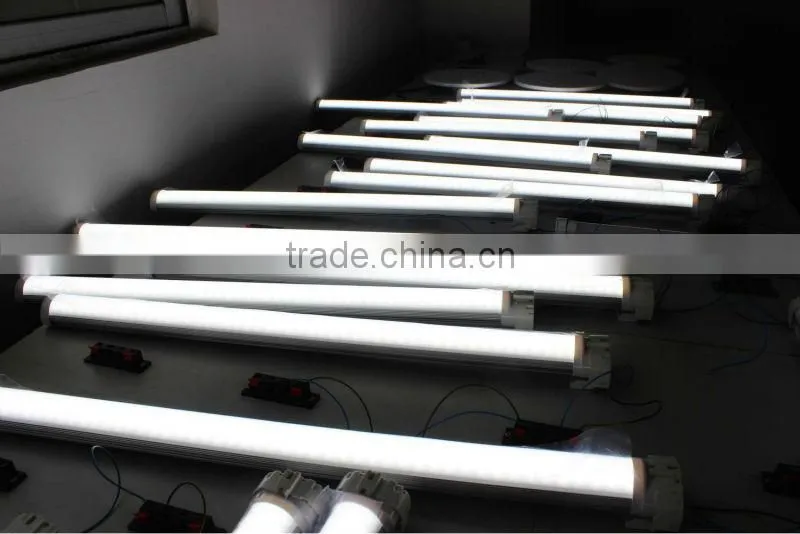

5. Photos about products
