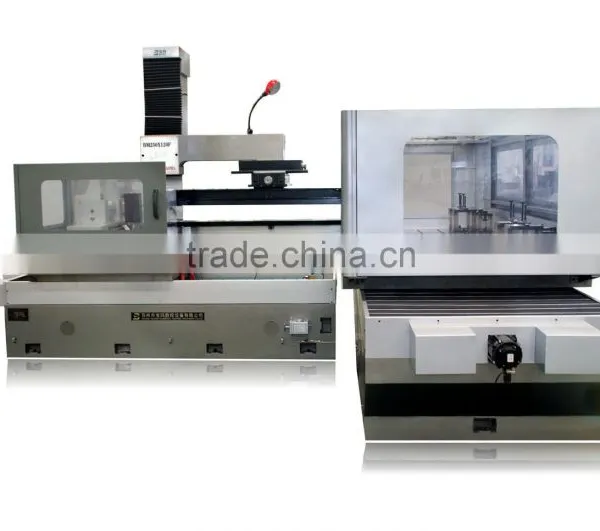

BAOMA CNC Wire Cut EDM (DK77130x150)

Name: BAOMA CNC Wire Cut EDM (DK77130x150)
Brand: BAOMA
SKU: 106968487
Availability: InStock

US$ 6,000 - 200,000 MOQ: 1 Piece

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Jiangsu, China

Suzhou Baoma Numerical Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Jiangsu, China

Brand Name BAOMA

Model Number DK77130x150

Voltage 3N-380V/50HZ

Power(W) 3 KVA

Dimension(L*W*H) 2900*1700*1500+2850*1460*2700

Weight 7500kg

Certification ISO9001, ISO14001, CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Baoma Wire Cut machines featured with beautiful shape, novel structure, superior performance, and convenient operation.

CNC Wire Cut EDM [DK77130x150]		Unit	DK7750D	DK7750F
Worktable size (L× W)		mm	900× 600	900× 600
Table travel(X× Y)		mm	500× 630	500× 630
Max. workpiece thickness		mm	500	500
Max. taper angle /plate thickness		degree/mm	± 3° /100	± 30° /100
Max. machining speed		mm² /min	120	120
Precision	Octagon	mm	≤ 0.015	≤ 0.015
Precision	taper	mm	≤ 0.04	≤ 0.1
Max. working current		A	6	6
Roughness, three cutting		μ m	≤ 1.5	≤ 1.5
Wire diameter		mm	0.15~0.2	0.15~0.2
Wire travelling speed		m/min	5~11	5~11
Load of table		Kg	500	500
Working solution			working solution BM-2, BM-4 or Saponification Liquid
Working reservoir capacity		L	56	56
Power supply			3N-380V/50Hz	3N-380V/50Hz
Power consumption		KVA	2	2
Wire guide frame			Adjustable
Machine dimensions(L× W× H)		mm	2000× 1670× 1900	2000× 1670× 1800
Package dimensions (L× W× H)		mm	2130× 1970× 2050	2080× 1970× 2250
Machine weight		Kg	2300	2300
Controller type			BMW-3000	BMW-3000

2, Machine precision (according to the standard GB 7926-87)

ItemModel	DK7750
Movement vector of X, Y axes	0.005mm
Positioning precision of X axis	≤ 0.02mm
Repetitive positioning precision of X axis	0.002mm
Positioning precision of Y axis	≤ 0.03mm
Repetitive positioning precision of Y axis	0.002mm
Perpendicularity of the wire to the working table	≤ 0.01mm
Radial jumpiness of wire winding drum	≤ 0.03mm
