Epistar SMD3014 G11 Factory 9/12/15/18/26w

Name: Epistar SMD3014 G11 Factory 9/12/15/18/26w
Brand: GENICE
SKU: 106968385
Availability: InStock

US$ 11 - 14 MOQ: 100 Pieces

Key Specifications

LED Light Source:

128pcs SMD3014

Warranty(Years):

Input Voltage(V):

AC100-240V

Shenzhen Genice Lighting Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source 128pcs SMD3014

Warranty(Years) 3

Input Voltage(V) AC100-240V

Lamp Power(W) 15

Lamp Luminous Flux(lm) 1500

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 2700-6500

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Other, Aluminum+PC

IP Rating Other, IP40

Certification BV, CE, EMC, LVD

Place of Origin Guangdong, China

Brand Name GENICE

Model Number Other, GE-G1115S

Specifications

Epistar SMD3014 g11 factory 9/12/15/18/26w
1) Watt:15w
2)LED chip: 128pcs SMD3014
3)Length: 417mm

Epistar SMD3014 g11 factory 9/12/15/18/26w

1. Specifications

	Model	GE-G1115S-FR	GE-G1115S-CL
A. Electrical Parameters
1	Input Voltage	AC85-265V	AC85-265V
2	Power Consumption	15W	15W
3	Frequency Range	50/60Hz	50/60Hz
4	Pow Factor	> 0.95	> 0.95
5	Power Efficiency	> 85%	> 85%
B. Optical Parameters
7	Luminous Flux	1400Lumens	1600Lumens
8	LED Luminous Efficiency	90-100Lm/W	100-110Lm/W
9	Lamp's Efficiency	>90%	> 90%
10	Color Temperature	(2700-3300K)/(4000-4500k)/(5500-6500K)	(2700-3300K)/(4000-4500k)/(5500-6500K)
11	CRI(Ra)	> 80	>80
12	Viewing Angle	120°	120°
C. Other Parameters
13	Lamp Holder/Base	2G11	2G11
14	Dimension	L417mm	L417mm
15	Housing material	PC + Aluminum	PC + Aluminum
16	N.W.	240g	240g
17	Chip Brand/Light Source	Epistar	Epistar
18	LED Quantity	128pcs SMD 3014 LEDs	128pcs SMD 3014 LEDs
19	Life time	>35,000hours	>35,000hours
20	Warranty	3Years	3Years
21	Certificates	CE/ROHS approved, UL pending	CE/ROHS approved, UL pending
D. Energy Saving and Low carbon
22	Replacement	36Wraditional T8 Fluorescent tube	36Wraditional T8 Fluorescent tube
E. Working Environment
23	Working Temperature	-20°C~50°C	-20°C~50°C
24	Working Humidity	10~90%	10~90%

2.GENICE LED 2G11 LAMP

Model	Dimension	LED Quantity	Power	Luminous Flux		N.W.
Model	Dimension	LED Quantity	Power	FR	CL	N.W.

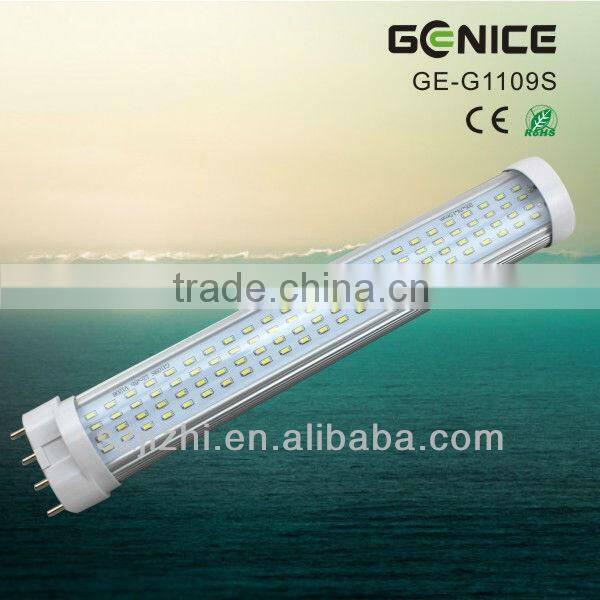

G1109S	225mm	80 SMD 3014 LEDs	9W	900lm	1000lm	140g

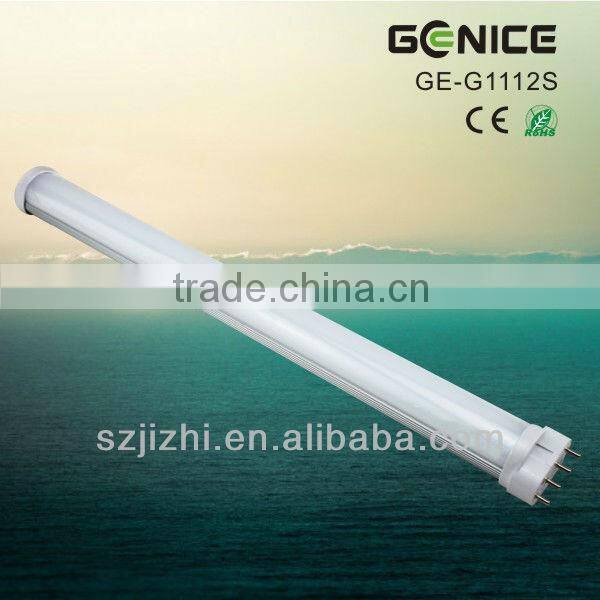

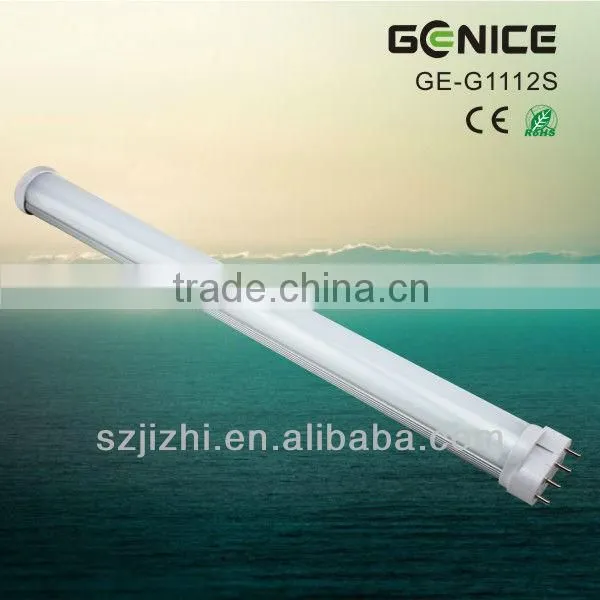

G1112S	320mm	112 SMD 3014 LEDs	12W	1200lm	1400lm	190g

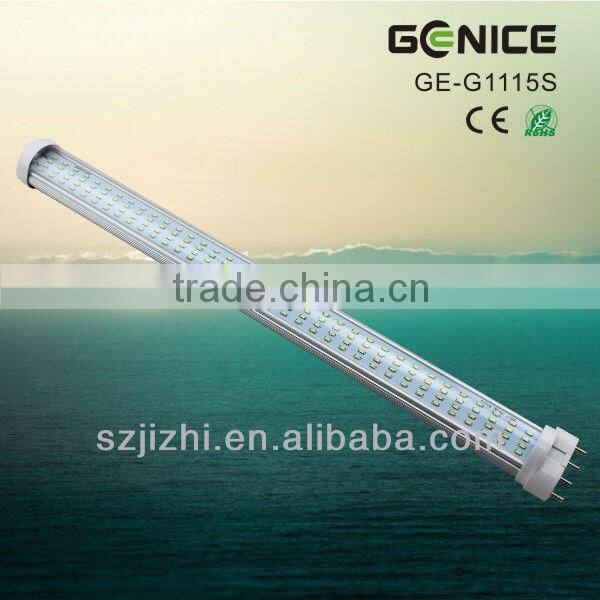

G1115S	410mm	128 SMD 3014 LEDs	15W	1500lm	1600lm	240g

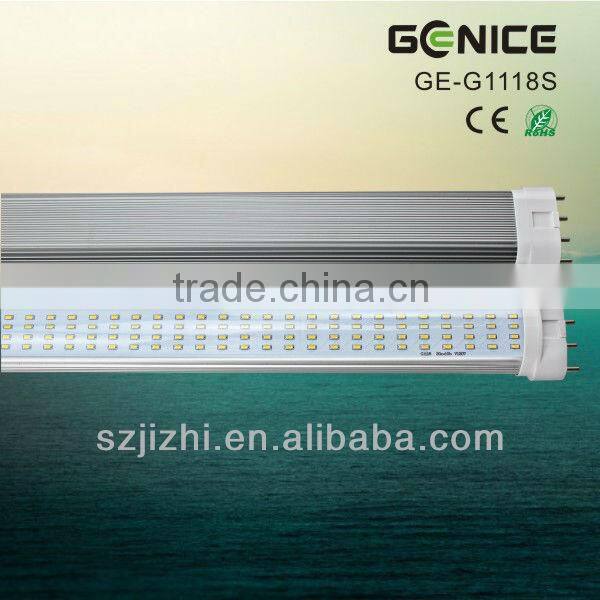

G1118S	535mm	160 SMD 3014 LEDs	18W	1800lm	2000lm	330g

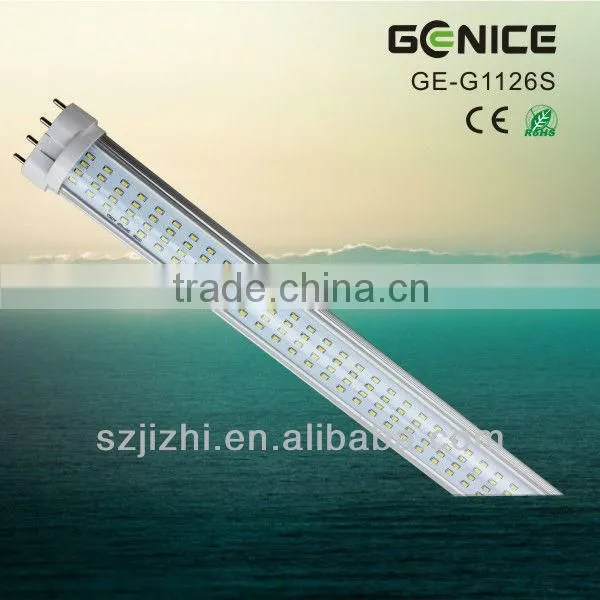

G1126S	535mm	240 SMD 3014 LEDs	26W	2400lm	2600lm	330g
