US$ 0.88888 - 33,333
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC EDM Wire Cutting MachineUS$ 0.88888 - 33,333MOQ: 1 Set -
EDM Wire Cutting Machine PriceUS$ 0.88888 - 33,333MOQ: 1 Set
-
Wire Cut Machines Dk7725US$ 0.88888 - 33,333MOQ: 1 Set
-
New Desinged High Speed Chmer Edm Wire Cut Machine DK7732C-C Quality ChoiceUS$ 1,000 - 80,000MOQ: 1 Set
-
Classic Edm Wire Cutting Machine High Speed Best Price DK7725CUS$ 500 - 14,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Jiangsu, China
Brand Name
Baoma
Model Number

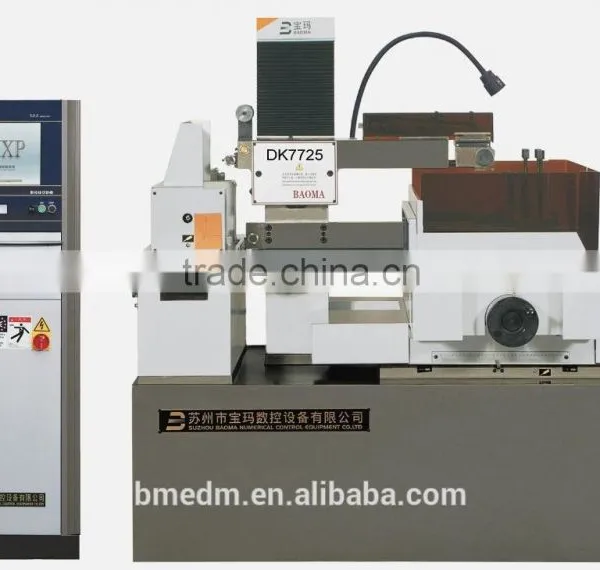

DK7725D
Voltage
380V/220V/415V
Power(W)
3Kw
Dimension(L*W*H)
1760* 1360* 1950mm
Weight
1600Kg
Certification
CE, ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Operator -friendly CNC wire cut EDM2. Wire cutting EDM with long life usage
3.Wire EDM with good roughness
MACHINE MODEL
| ITEM | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| Max. Cutting Thickness(mm) | 300 | 500 | 300 | 500 | 300 | 500 |
| Max. Cuttting Taper(<=100mm thick) | 0 | 0 | ±3° | ±3° | ±30° | ±30° |
SPECIFICATIONS
| CNC Wire Cut EDM DK7725 | DK7725A | DK7725B | DK7725C | DK7725D | DK7725E | DK7725F | |
|---|---|---|---|---|---|---|---|
| Table Travel (mm) | 250 x 320 | ||||||
| Table Size (mm) | 380 x 525 | ||||||
| Roughness | Once Cutting (um) | <= 2.5 | |||||
| Multi-Cutting (um) | <=1.5 | ||||||
| Precision | Octagon (mm) | <= 0.015 | <= 0.015 | <= 0.015 | <= 0.015 | <= 0.015 | <= 0.015 |
| Taper (mm) | <= 0.04 | <= 0.04 | <= 0.1 | <= 0.1 | |||
| Screw and guide way | High Quality Ball Screw ; Steel Linear guideway | ||||||
| Load of Table (Kg) | 300 | ||||||
| Machine Weight (Kg) | 1600 | ||||||
UNIVERSAL PARAMETERS
| Max. Cutting Speed | 150 mm2/Min. |
| Wire Speed | 5 - 11 m/Min |
| Max. working Current | 6 A |
| Wire Diameter | Dia. 0.15-0.2mm |
| Work Solution | BM2/BM4 Water Base Working solution |
| Water Tank | 100 L |
| Rated Voltage | AC~,3N, 220-415V,50/60HZ |
| Ratde Power | 3 KVA |
| Wire Guide Frame | Adjustable |
| Controller | BMW-3000 |
INTELLIGENT BMXP CONTROL SYSTEM
- BMXP Intelligent software, which integrates the program and control and based on Windows Xp. This new designed BMXP software is the unique software for WEDM running on the condition of windows XP.
- Using the PCI slot controller card and the High-tech Industrial computer, which greatly enhanced the stability of control and greatly reduced the computer the failure rate.
- To achieve a fast and convenient computer communication network, through network technology, graphics, data and program transmission, can be directly controlled by the technical design department since the first establishment of a program
- Embedded Control system can be smoothly connected with many design software such as AUTOCAD & etc.
- The search function of mechanical origin enable the transmission screw pitch compensation, in order to greatly improve the positioning accuracy, especially in Servo control system.
- With a large storage capacity database, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience
- The parameters of pulse power is directly controlled by the software , so as to not only improve anti-jamming capability in pulse power output, but also increase the roughness of work piece and reduce the loss of molybdenum wire .
- Pulse power of the control parameters directly from the software to control and improve the ability of pulsed power output of the interference, thereby increasing the roughness of workpiece, reducing the loss of molybdenum wire, you can choose a variety of pulse waveforms for a variety of processing conditions, improve the cutting ability of the workpiece.
- Simplifies the operation buttons on the control panel, a large number of button functions directly controlled by software to achieve.
BMXP Software basic function
- Coordinate system: absolute coordinate, incremental coordinate (relative coordinate)
- Functions of coordinate transforming, zoom in and zoom out, rotating and tracking display in real time
- Functions of interpolation of straight line and circular arc.
- Function of taper processing
- Function of processing different top and bottom shape
- Functions of short circuit and wire-break handling
- Functions of memorizing when power was cut and auto-stop after processing
- Functions of auto-edge position and auto-centering
- Function of auto-adding transitional arc (Arbitrary angle)
- Function of processing backward
- Functions of menu technology and auto-programming;
- Data transmission
- functions of multi-cutting
CNC System Configuration and Performances
- CNC hardware
- Indutrial PC: P4;
- 1024MB RAM;
- 160GB hard disk;
- 15″ LCD color display;
- USB and INTERNET
- CNC software and operating platform:
- CNC Auto-program and control function
- The operating platform is Windows XP
- CNC system technical performance:
- CNC 4 axes simultaneously control;
- Function of processing different top and bottom abnormities parts
- CNC system working environment:
- The voltage: 3-phase 380V± (1%-10%), 50Hz (customizing accepted)
- Relative humidity: 40%~80%
- Cleaning environment, the dust with active gas and precipitation is not allowed; make sure there are no machines making much dust while working.
- No vibration source, no electromagnetic wave source in the rang of 20m
