Home > Lights & Lighting > LED Interior Lighting > LED Tube > High Conversion Efficiency 2g11 Franchisees 18w Led

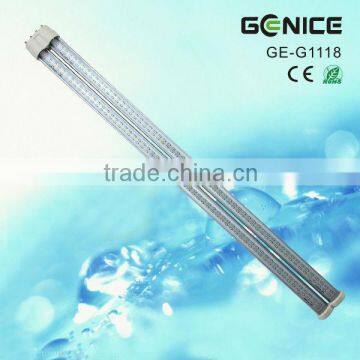

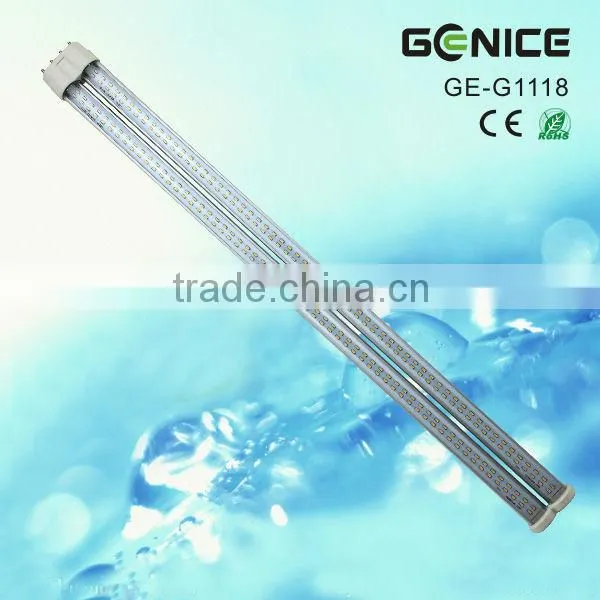

High Conversion Efficiency 2g11 Franchisees 18w Led

Name: High Conversion Efficiency 2g11 Franchisees 18w Led
Brand: Genice
SKU: 106968057
Availability: InStock

US$ 18 - 21 MOQ: 50 Pieces

Key Specifications

LED Light Source:

SMD3014 epistar

Warranty(Years):

Input Voltage(V):

85-265

Shenzhen Genice Lighting Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source SMD3014 epistar

Warranty(Years) 3

Input Voltage(V) 85-265

Lamp Power(W) 18

Lamp Luminous Flux(lm) 1800

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 2500-7500

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 35000

Lamp Body Material Other, Aliminum+PC

IP Rating Other, IP40

Certification CE, EMC, LVD

Place of Origin Guangdong, China

Brand Name Genice

Model Number Other, GE-G1118

Specifications

high conversion efficiency 2g11 franchisees 18w led
1.AC100-240V
2.CE,ROHS
3.long lifespan more than 35000 hours

high conversion efficiency 2g11 franchisees 18w led

1. Specifications

	Model	GE-G1118-FR	GE-G1118-CL
A. Electrical Parameters
1	Input Voltage	AC85-265V	AC85-265V
2	Power Consumption	18W	18W
3	Frequency Range	50/60Hz	50/60Hz
4	Pow Factor	> 0.95	> 0.95
5	Power Efficiency	> 85%	> 85%
B. Optical Parameters
7	Luminous Flux	1700Lumens	1900Lumens
8	LED Luminous Efficiency	90-100Lm/W	100-110Lm/W
9	Lamp's Efficiency	>90%	> 90%
10	Color Temperature	(2700-3300K)/(4000-4500k)/(5500-6500K)	(2700-3300K)/(4000-4500k)/(5500-6500K)
11	CRI(Ra)	> 80	>80
12	Viewing Angle	120°	120°
C. Other Parameters
13	Lamp Holder/Base	2G11	2G11
14	Dimension	L542mm	L542mm
15	Housing material	PC + Aluminum	PC + Aluminum
16	N.W.	330g	330g
17	Chip Brand/Light Source	Epistar	Epistar
18	LED Quantity	160 SMD 3014 LEDs	160 SMD 3014 LEDs
19	Life time	>35,000hours	>35,000hours
20	Warranty	3Years	3Years
21	Certificates	CE/ROHS approved, UL pending	CE/ROHS approved, UL pending
D. Energy Saving and Low carbon
22	Replacement	55Wraditional T8 Fluorescent tube	55Wraditional T8 Fluorescent tube
E. Working Environment
23	Working Temperature	-20°C~50°C	-20°C~50°C
24	Working Humidity	10~90%	10~90%

2.GENICE LED 2G11 LAMP

Model	Dimension	LED Quantity	Power	Luminous Flux		N.W.
Model	Dimension	LED Quantity	Power	FR	CL	N.W.
G1109	225mm	80 SMD 3014 LEDs	9W	900lm	1000lm	150g
G1112	320mm	112 SMD 3014 LEDs	12W	1200lm	1400lm	190g
G1115	410mm	128 SMD 3014 LEDs	15W	1500lm	1600lm	270g
G1118	535mm	160 SMD 3014 LEDs	18W	1800lm	2000lm	330g
G1126	535mm	240 SMD 3014 LEDs	26W	2400lm	2600lm	350g
